Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings

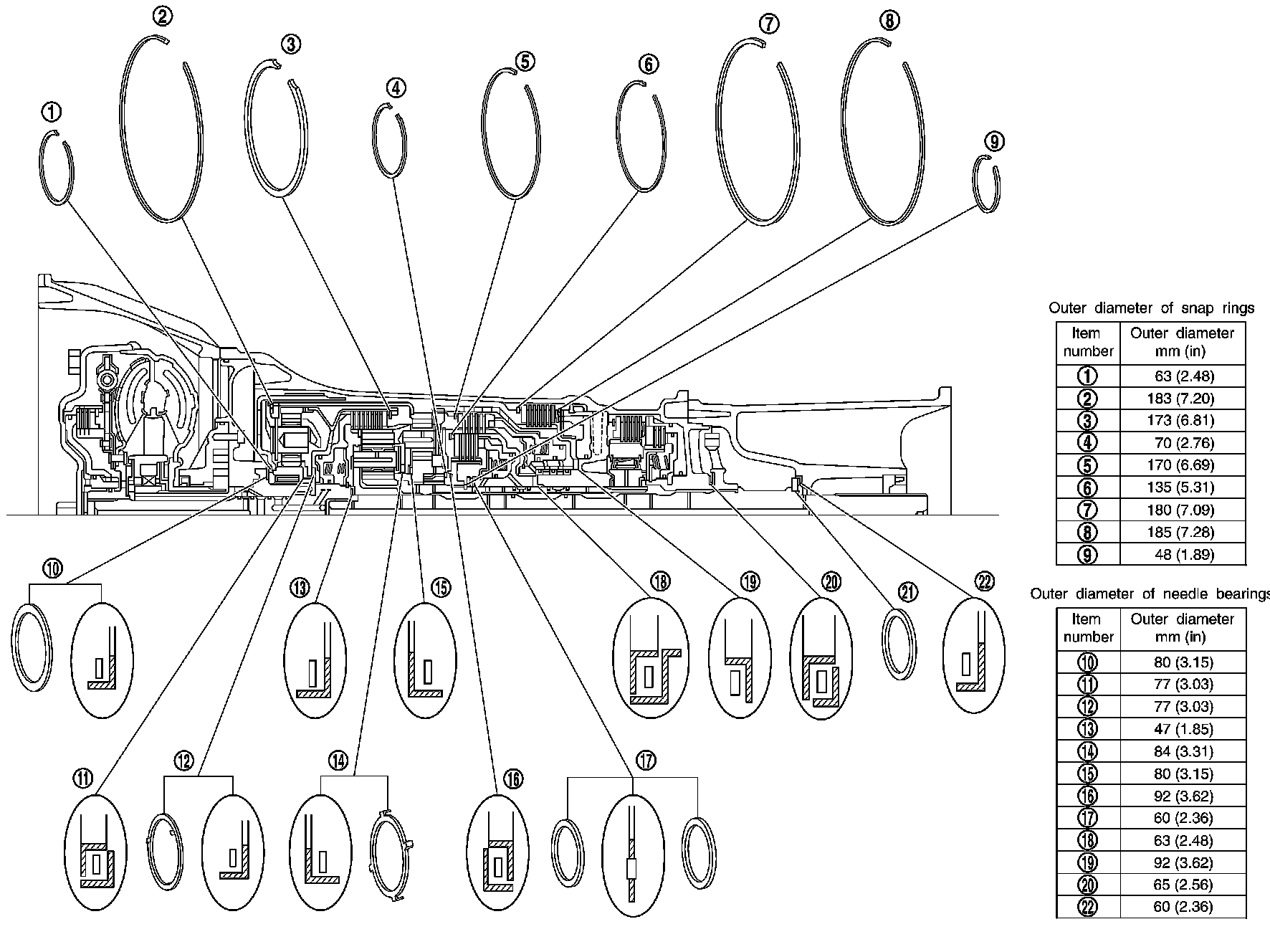

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings - VQ35DE models for 2WD:

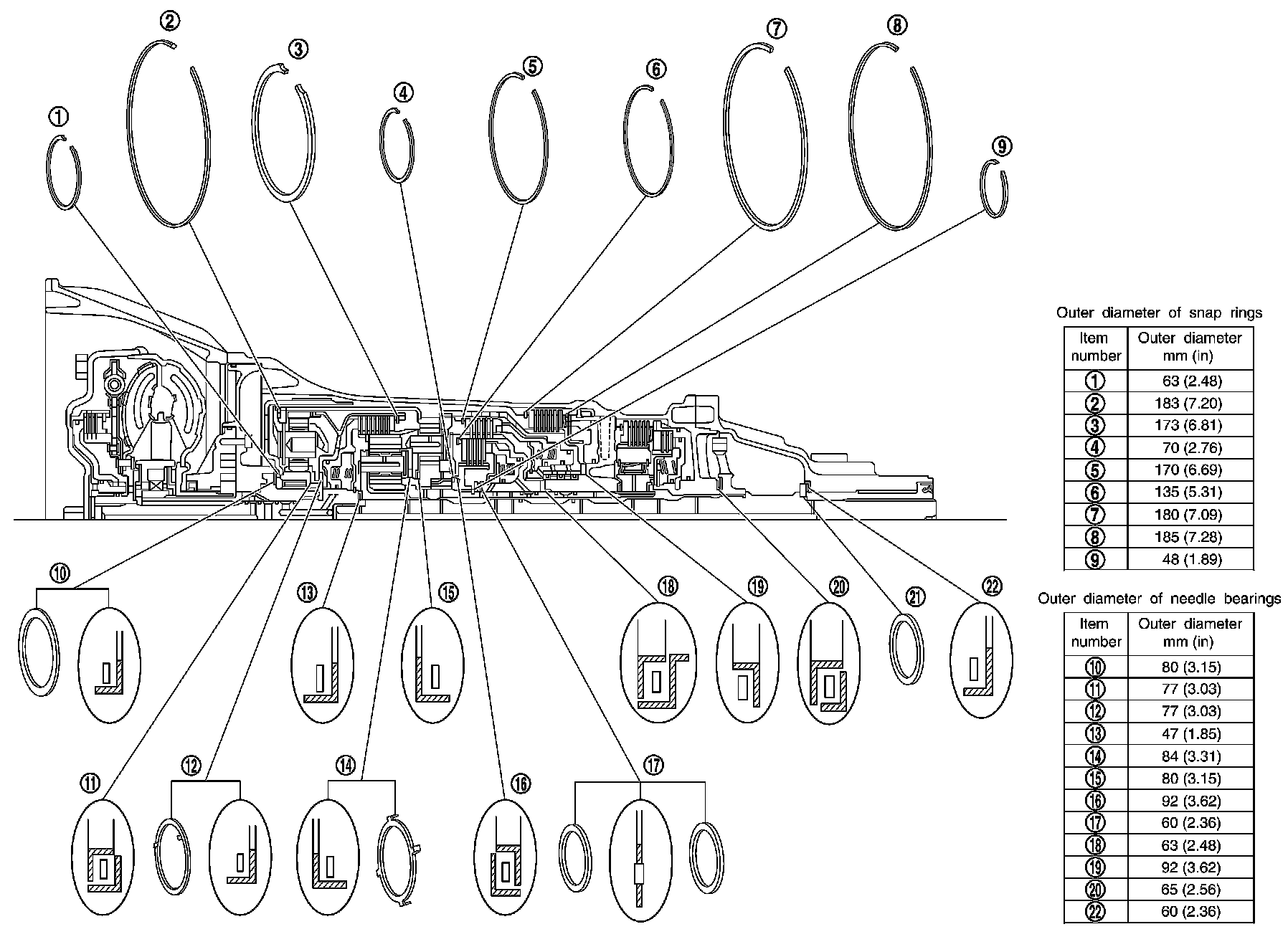

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings - VK45DE models for 2WD:



Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings - AWD models:
