Headlamp Control Module: Locations

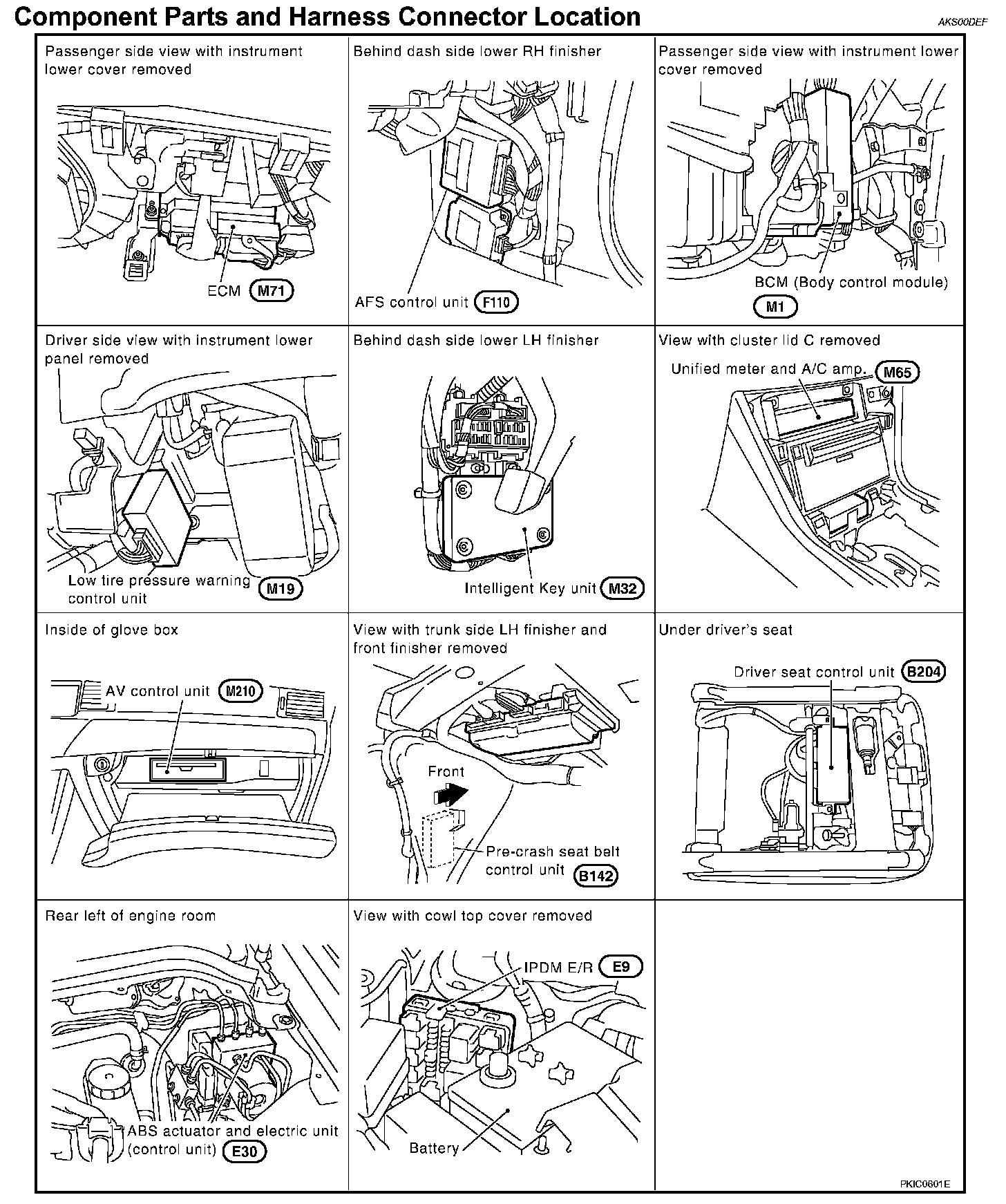

Component Parts And Harness Connector Location:



Passenger Compartment Electrical Units Location:
