Without Mobile Entertainment System
Camera Control UnitREMOVAL
1. Remove trunk side finisher (RH).

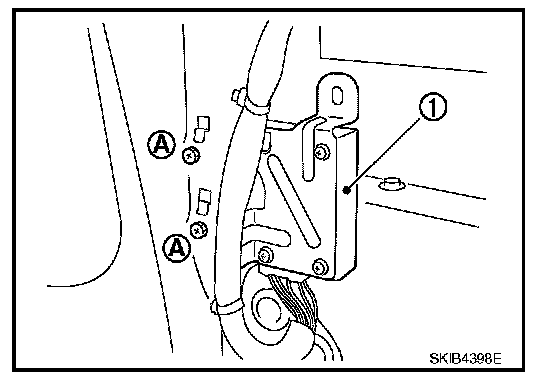

2. Remove screws (A) and disconnect connector, and remove rear view camera control unit (1).

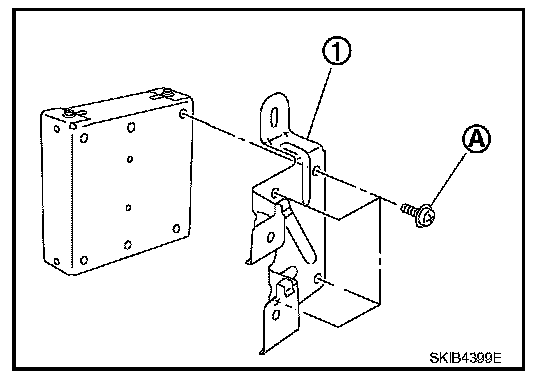

3. Remove screws (A) and remove bracket (1).
INSTALLATION
Installation is the reverse order of removal.
