Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters
A/T ASSEMBLY HARNESS CONNECTOR TERMINAL LAYOUT:

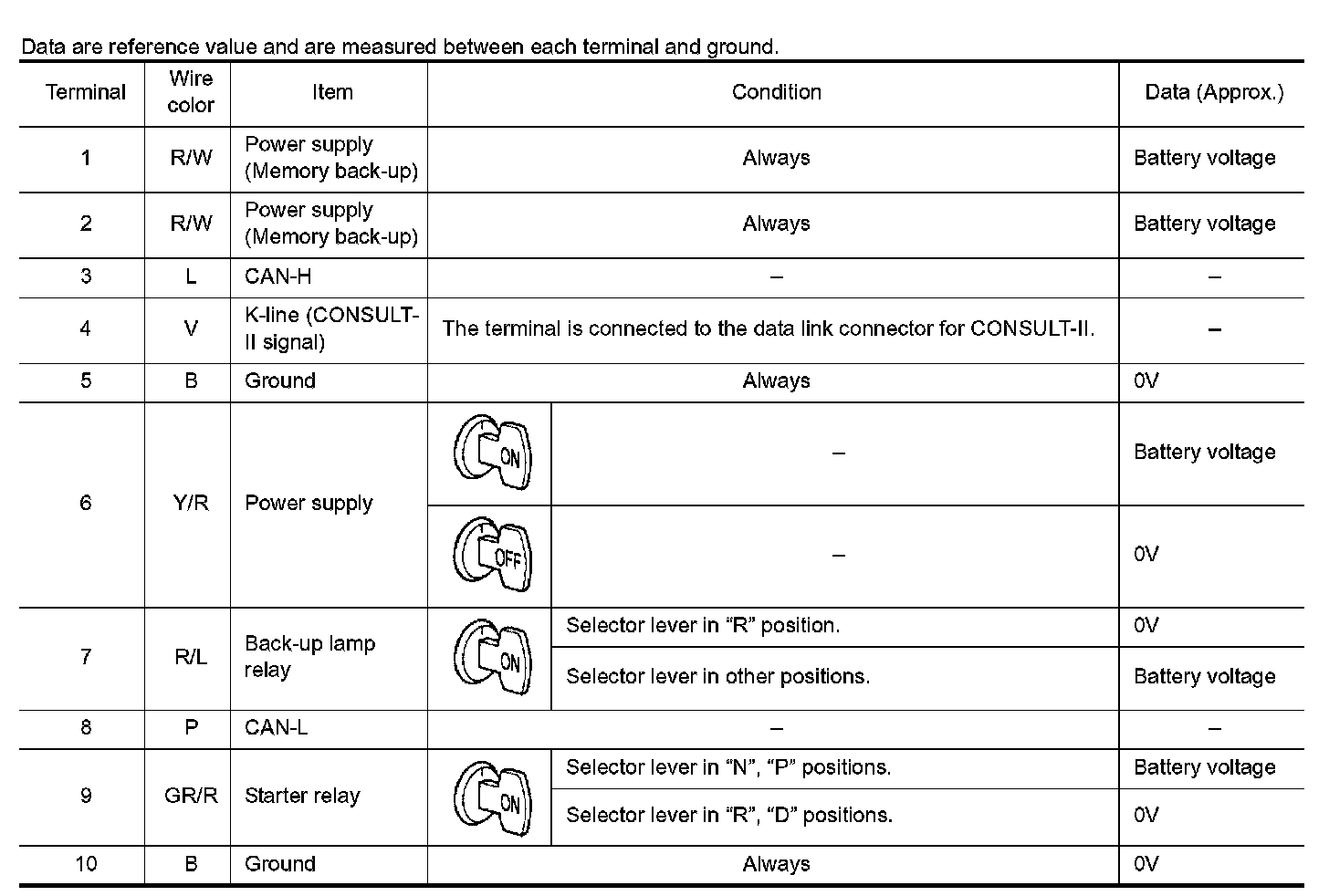

TCM INSPECTION TABLE:
