Component Inspection
Component InspectionFUEL INJECTOR
1. Disconnect fuel injector harness connector.

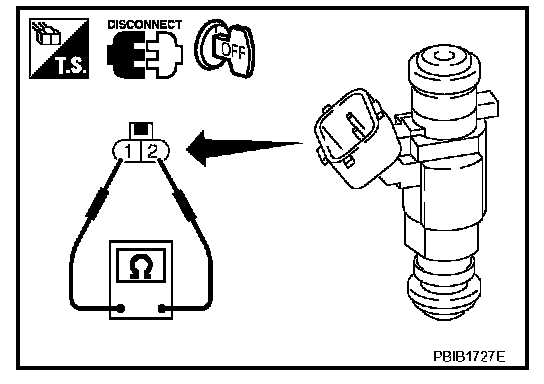

2. Check resistance between terminals as shown in the figure.
Resistance: 13.5 - 17.5 Ohms [at 10 - 60 degrees C (50 - 140 degrees F)]
FUEL INJECTOR
1. Disconnect fuel injector harness connector.
2. Check resistance between terminals as shown in the figure.
Resistance: 13.5 - 17.5 Ohms [at 10 - 60 degrees C (50 - 140 degrees F)]
