Home >> Infiniti >> 2006 >> M45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Relay >> Description and Operation

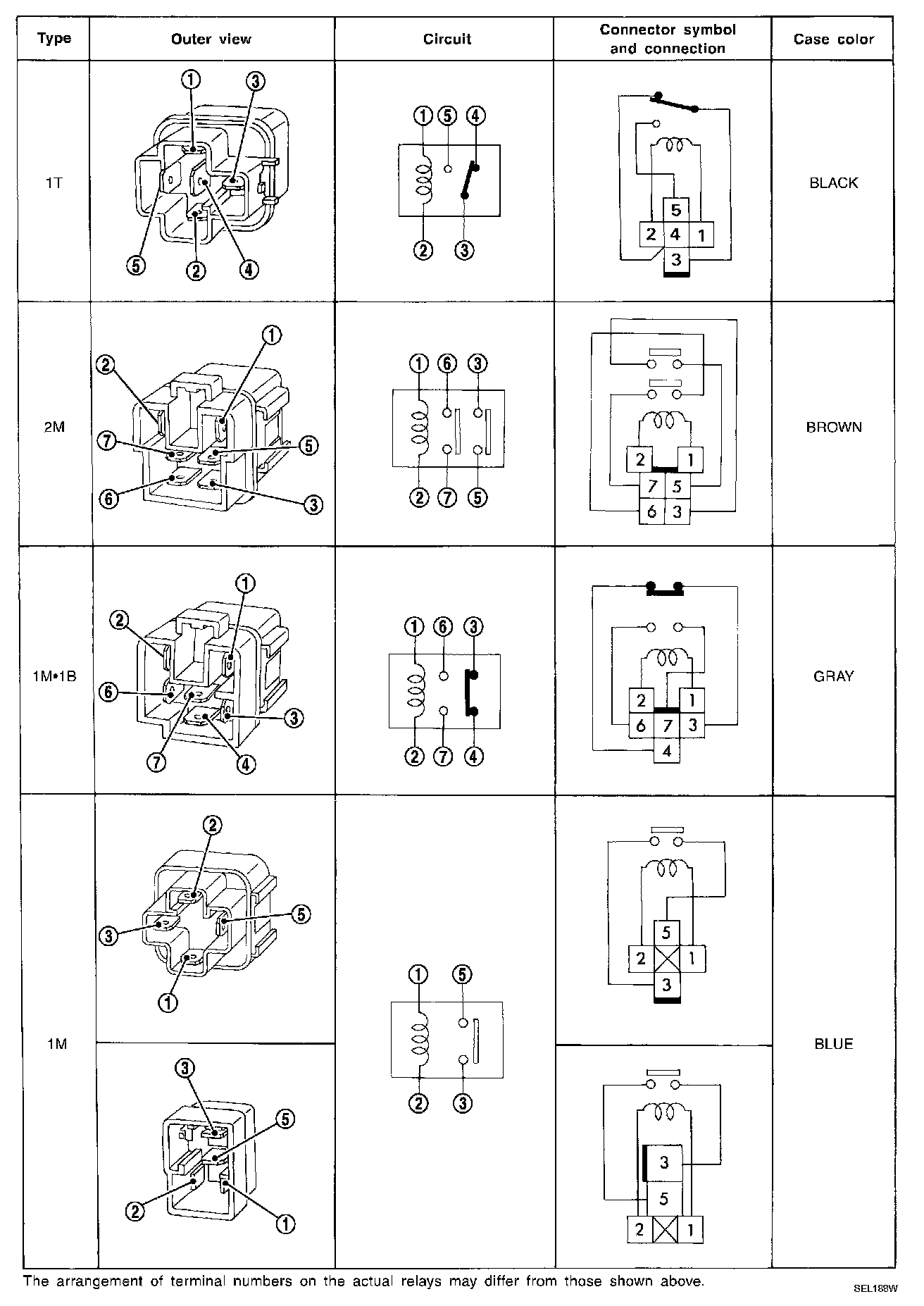

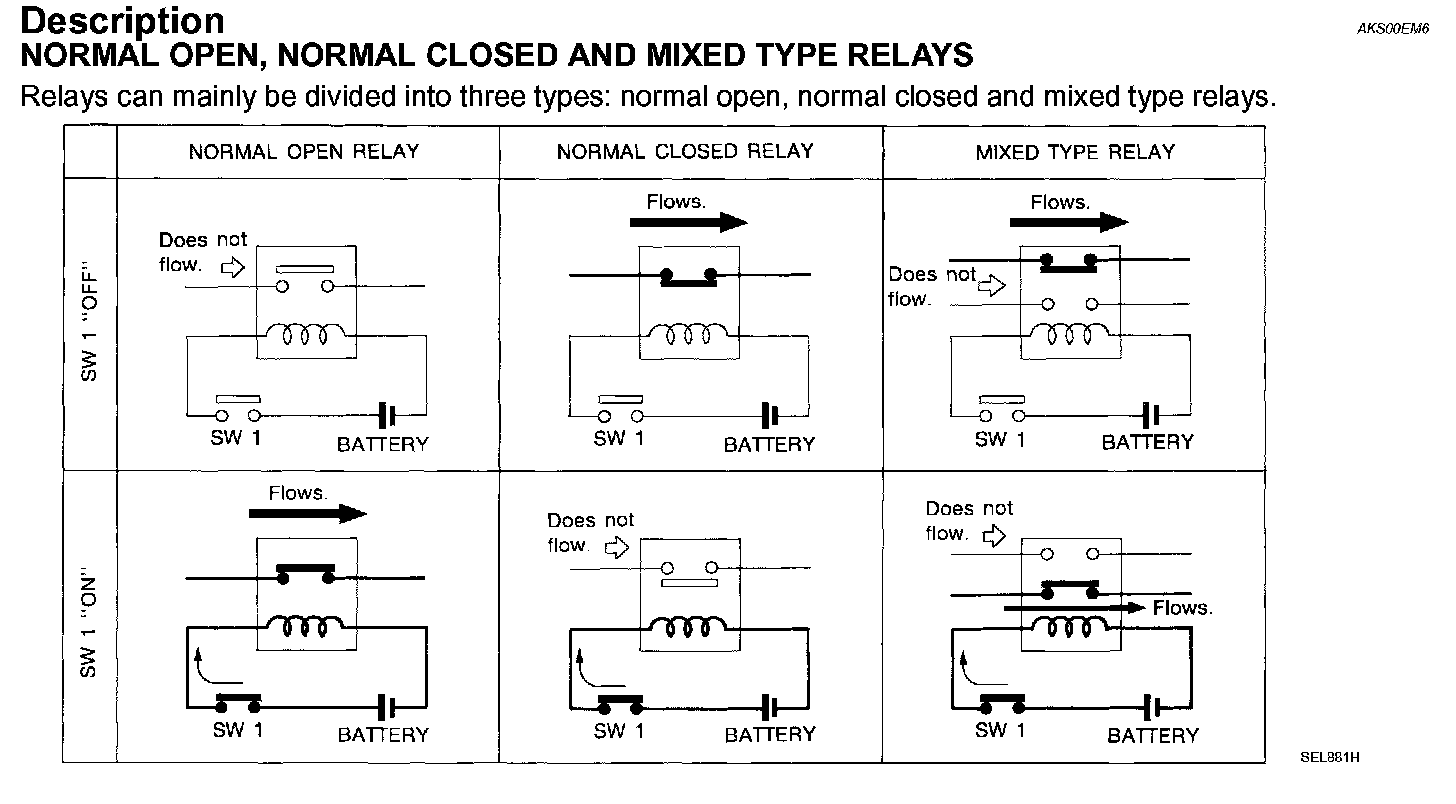

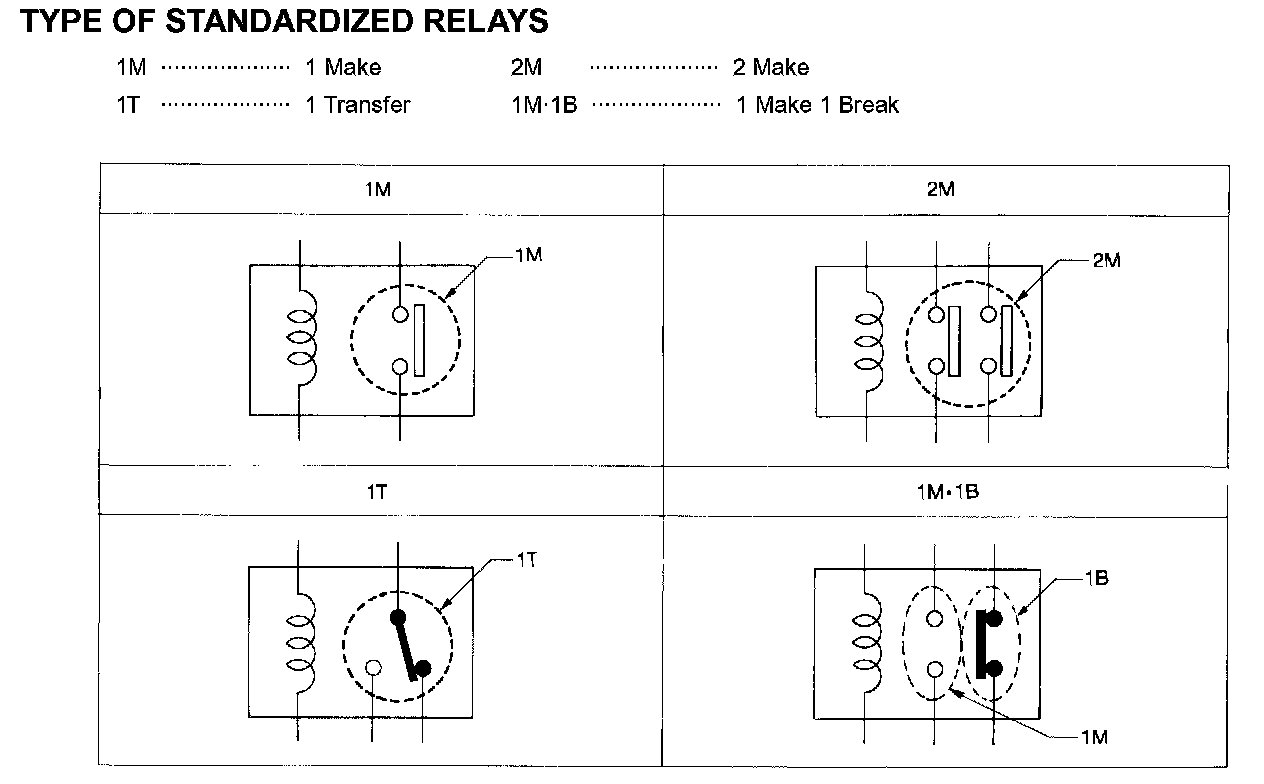

Power Distribution Relay: Description and Operation
