License Plate Bulb: Service and Repair
License Plate LampBULB REPLACEMENT
1. Remove trunk lid finisher inner.

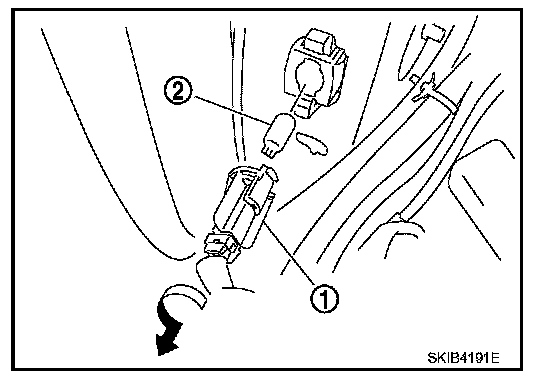

2. Turn bulb socket (1) counterclockwise and unlock it.
3. Remove bulb (2) from its socket.
License plate lamp : 12 V - 5 W
BULB REPLACEMENT
1. Remove trunk lid finisher inner.
2. Turn bulb socket (1) counterclockwise and unlock it.
3. Remove bulb (2) from its socket.
License plate lamp : 12 V - 5 W
