Foot Lamp

Foot Lamp (Driver Side)

BULB REPLACEMENT

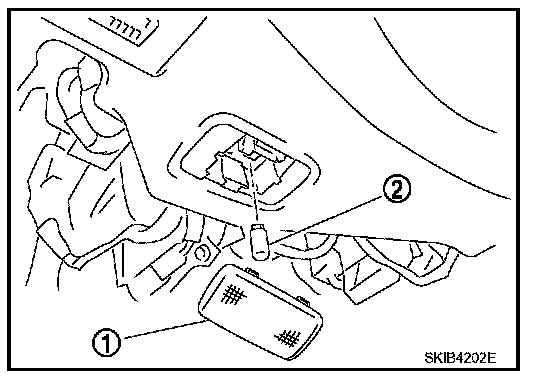

1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).

Foot lamp (Driver side) : 12 V - 3.4 W

Foot Lamp (Passenger Side)

BULB REPLACEMENT




1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).

Foot lamp (Passenger side) : 12 V - 3.4 W
