Cigarette Lighter Illumination

Cigarette Lighter Illumination

BULB REPLACEMENT, REMOVAL AND INSTALLATION

Removal
1. Remove A/T console finisher.




2. Remove screws (A).

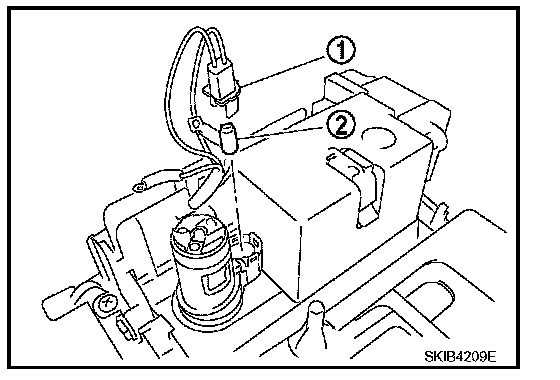

3. Use a screwdriver to undo hooks, remove bulb sockets (1).
4. Remove bulb (2).

Front ashtray and cigarette lighter illumination : 12 V - 1.4 W

Installation
Installation is the reverse order of removal.
