Climate Controlled Seat Schematic
Climate Controlled Seat Schematic

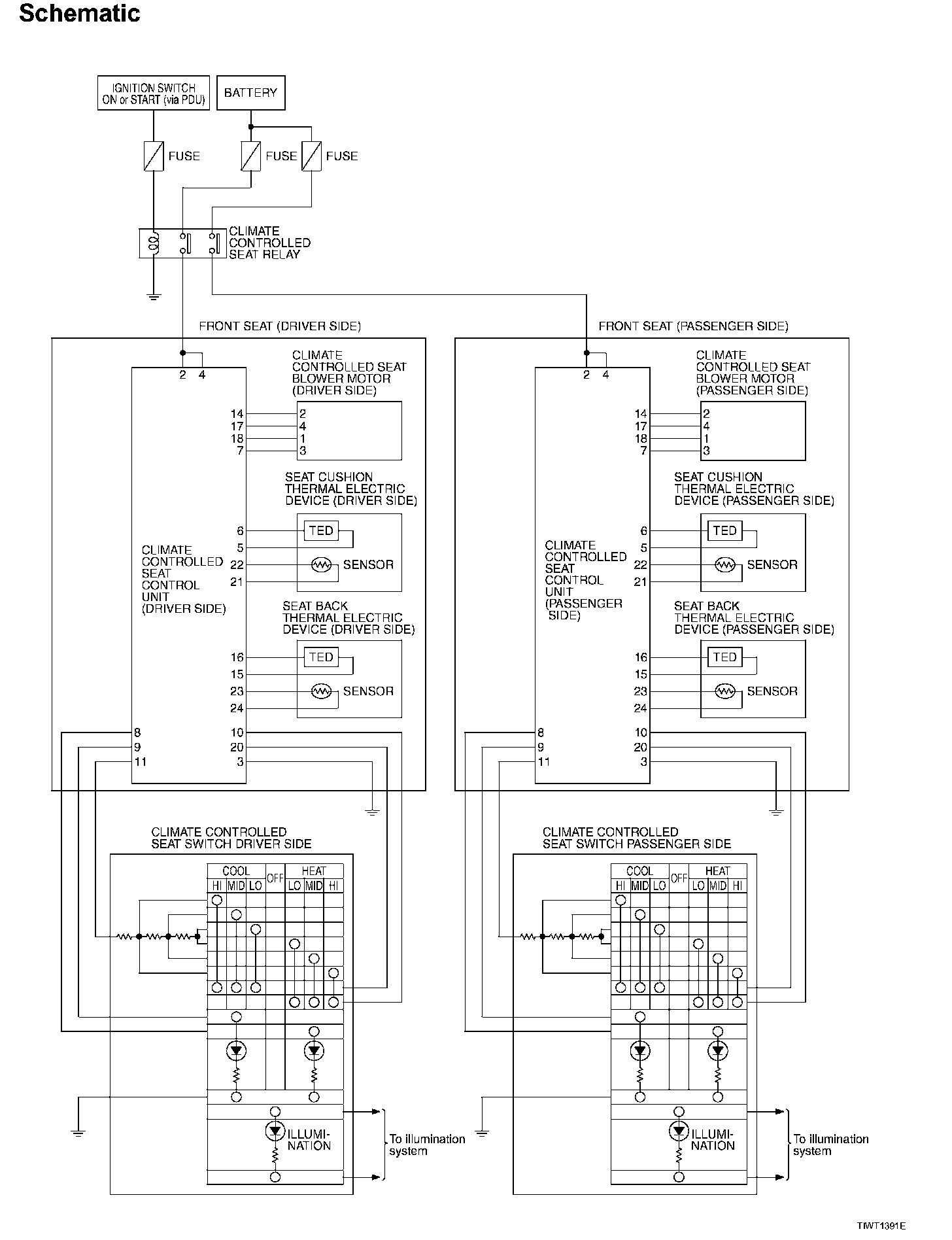

Climate Controlled Seat Schematic:
