Heated Glass Element
>>

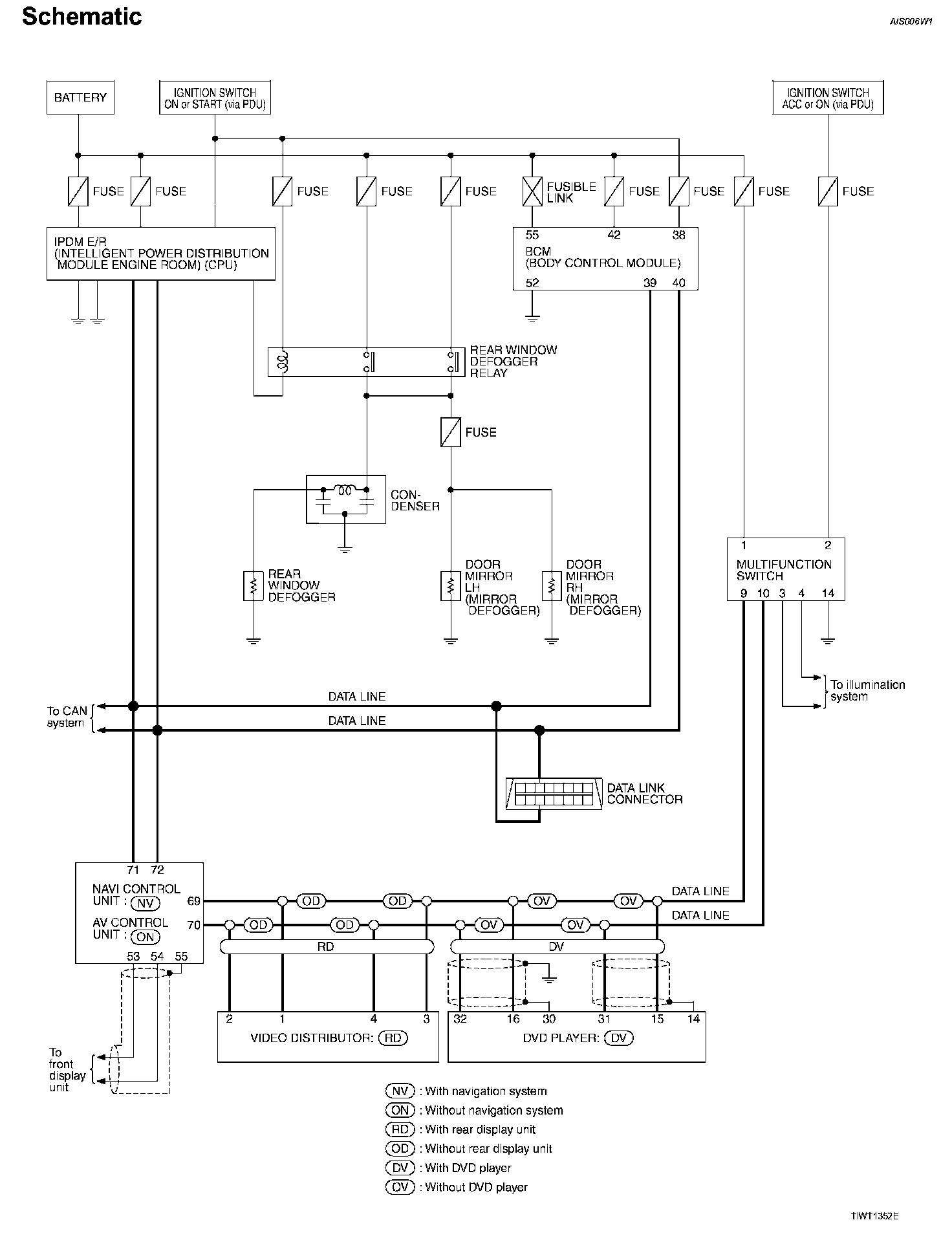

Rear Window Defogger Schematic
Rear Window Defogger Schematic
Rear Window Defogger Schematic:
