Without Mobile Entertainment System - Schematic - BOSE Audio 2CH System
Without Mobile Entertainment System - Schematic - BOSE Audio 2CH System
Without Mobile Entertainment System Schematic (BOSE Audio 2ch System) (Part 1):

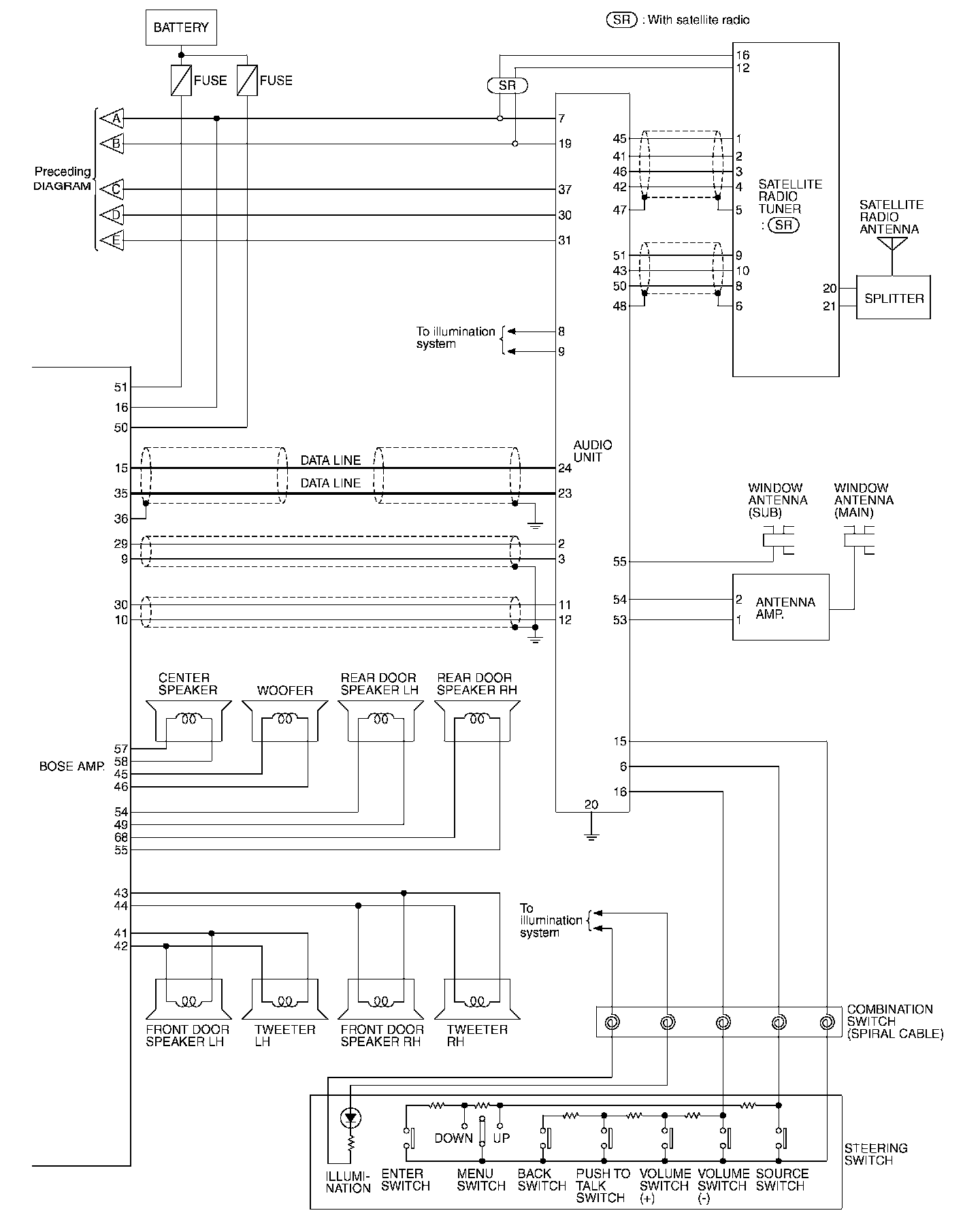

Without Mobile Entertainment System Schematic (BOSE Audio 2ch System) (Part 2):
