With Mobile Entertainment System Schematic - BOSE Surround Audio 5.1CH System

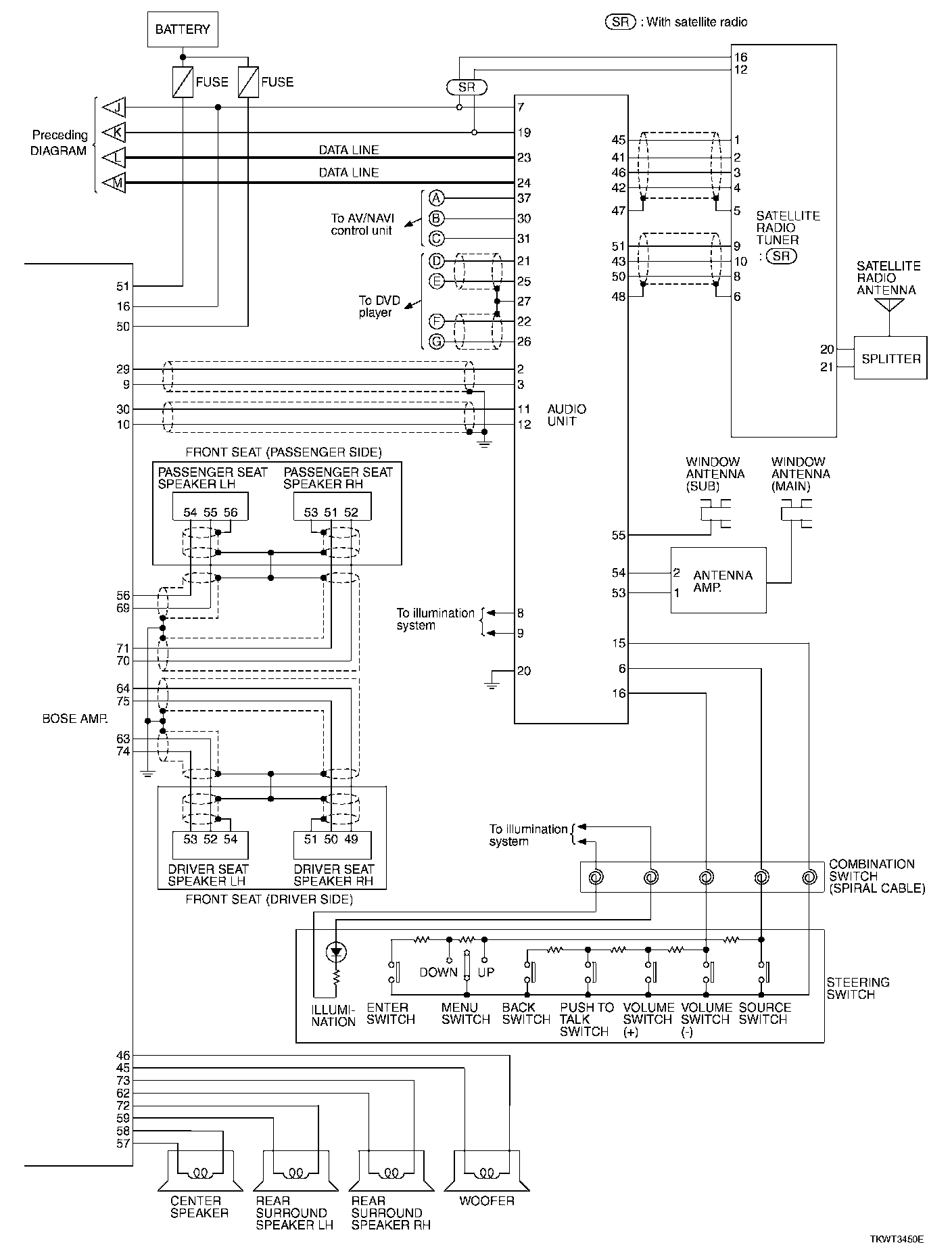

With Mobile Entertainment System Schematic (BOSE Surround Audio 5.1ch System) (Part 1):

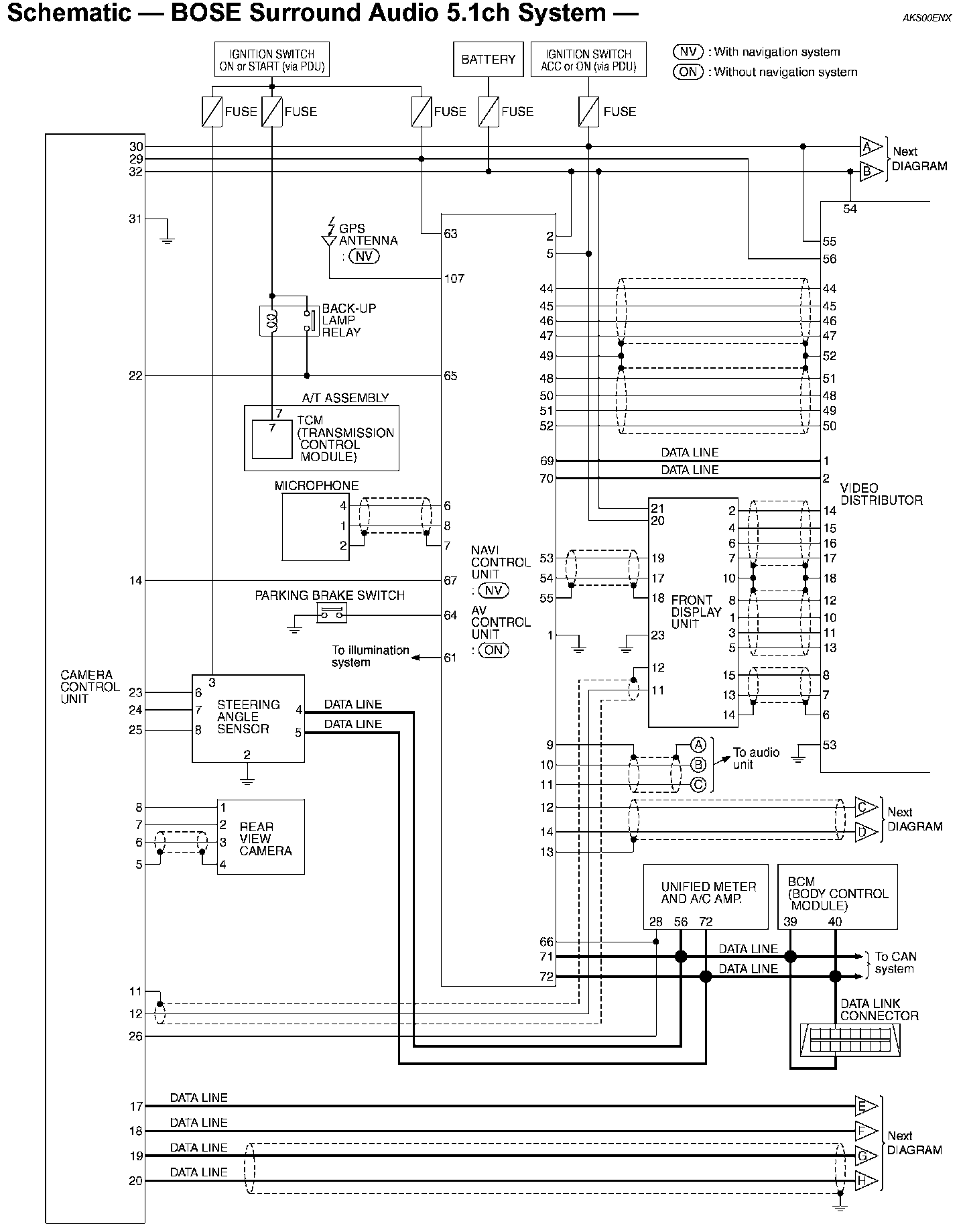

With Mobile Entertainment System Schematic (BOSE Surround Audio 5.1ch System) (Part 2):

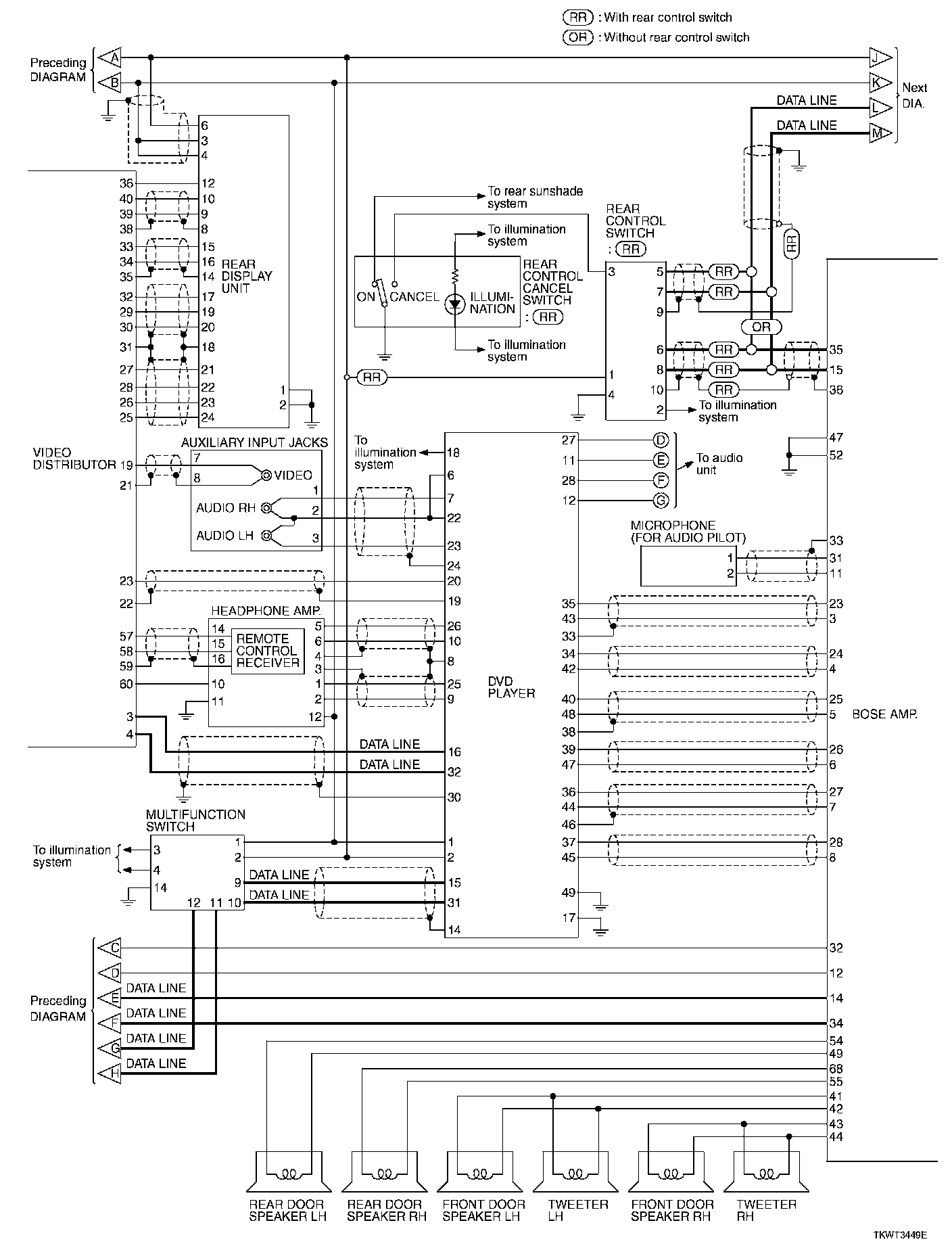

With Mobile Entertainment System Schematic (BOSE Surround Audio 5.1ch System) (Part 3):
