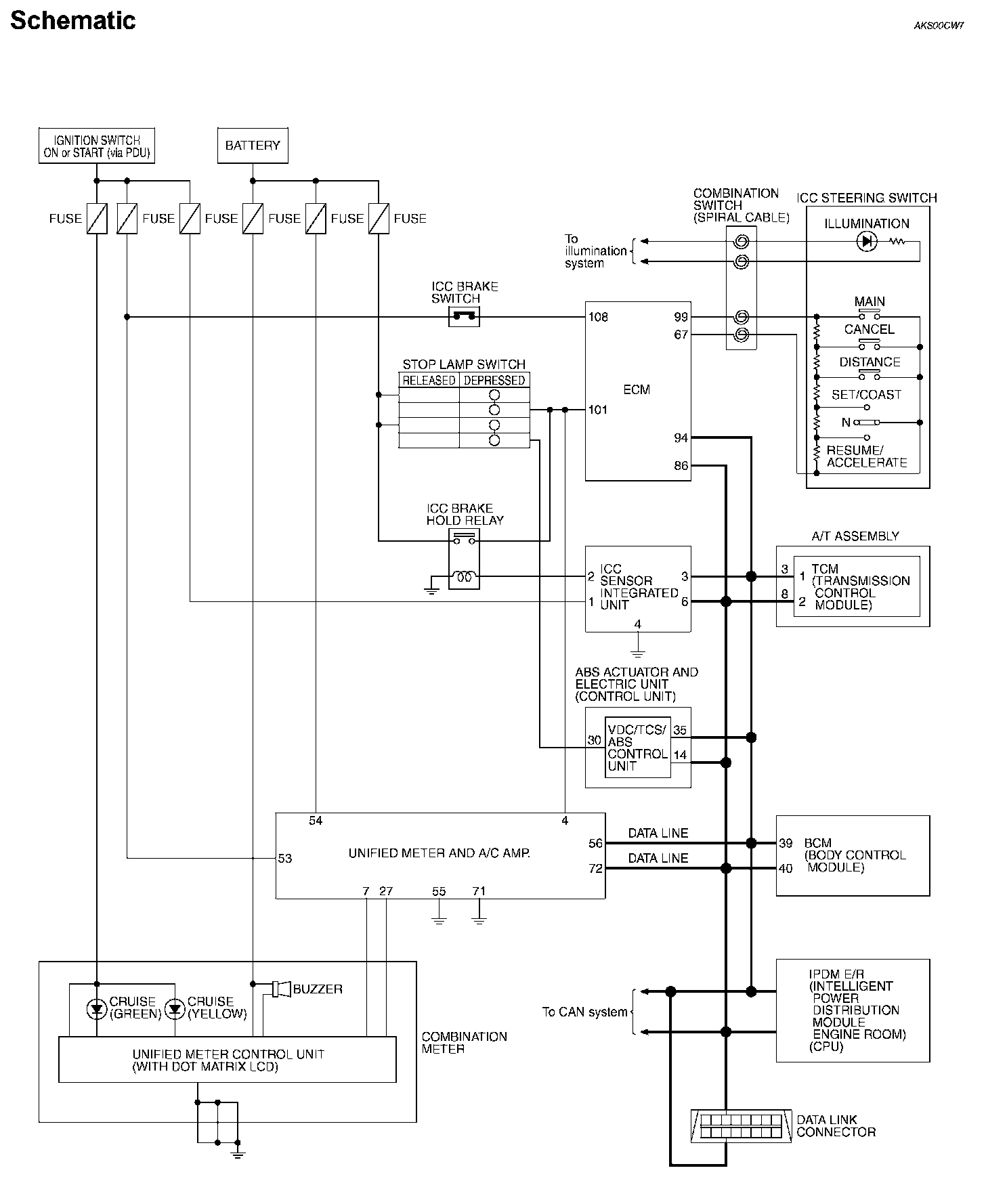

Intelligent Cruise Control (ICC) Schematic
Intelligent Cruise Control (ICC) Schematic
Wiring Diagram Schematic:
