Climate Controlled Seat
Climate Controlled Seat

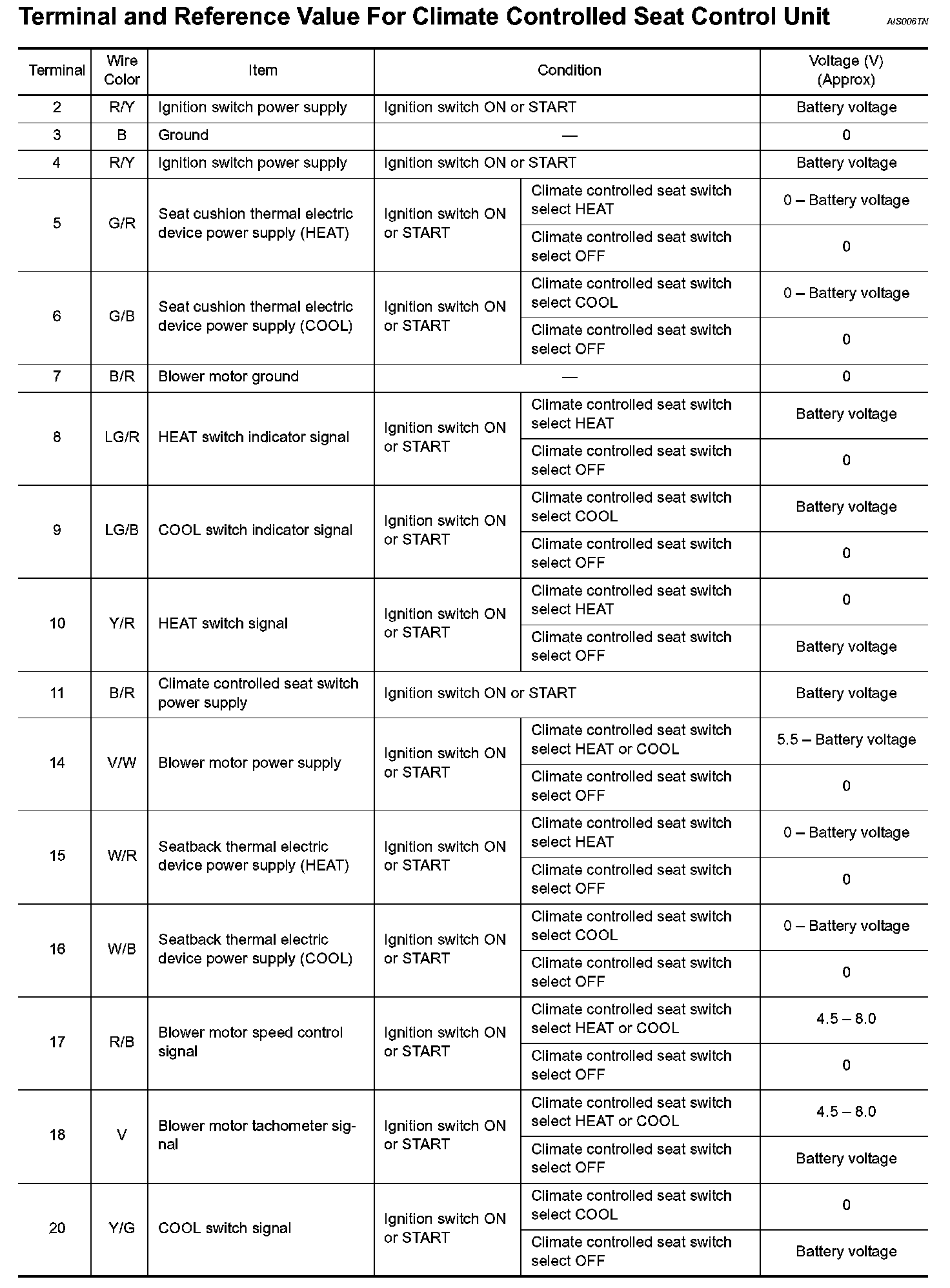

Terminals And Reference Values For Climate Controlled Seat Control Unit Part 1:

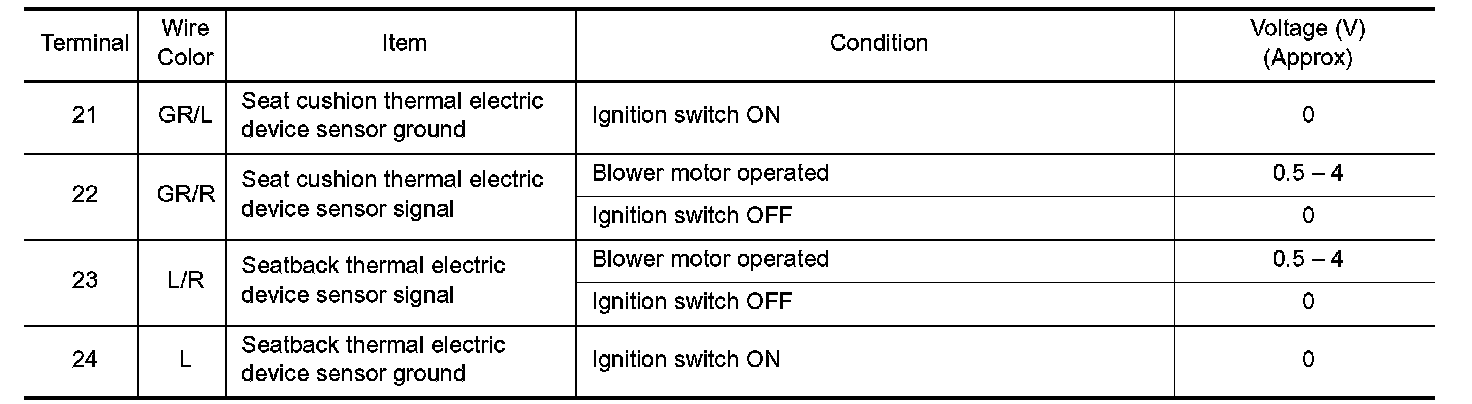

Terminals And Reference Values For Climate Controlled Seat Control Unit Part 2:
