Rear Seat Control Unit Power Supply and Ground Circuit Inspection

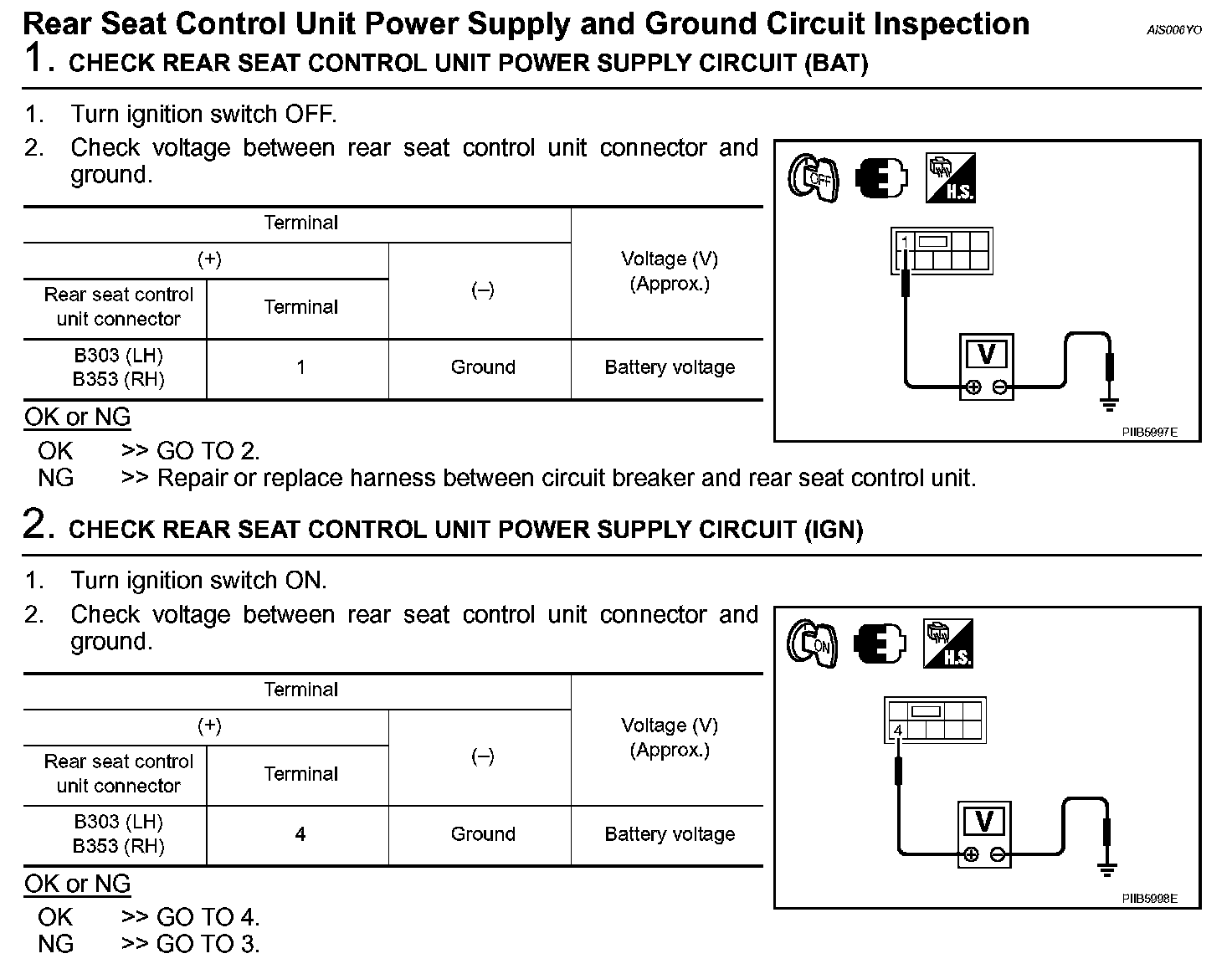

Rear Seat Control Unit Power Supply And Ground Circuit Inspection (Steps 1 - 2):

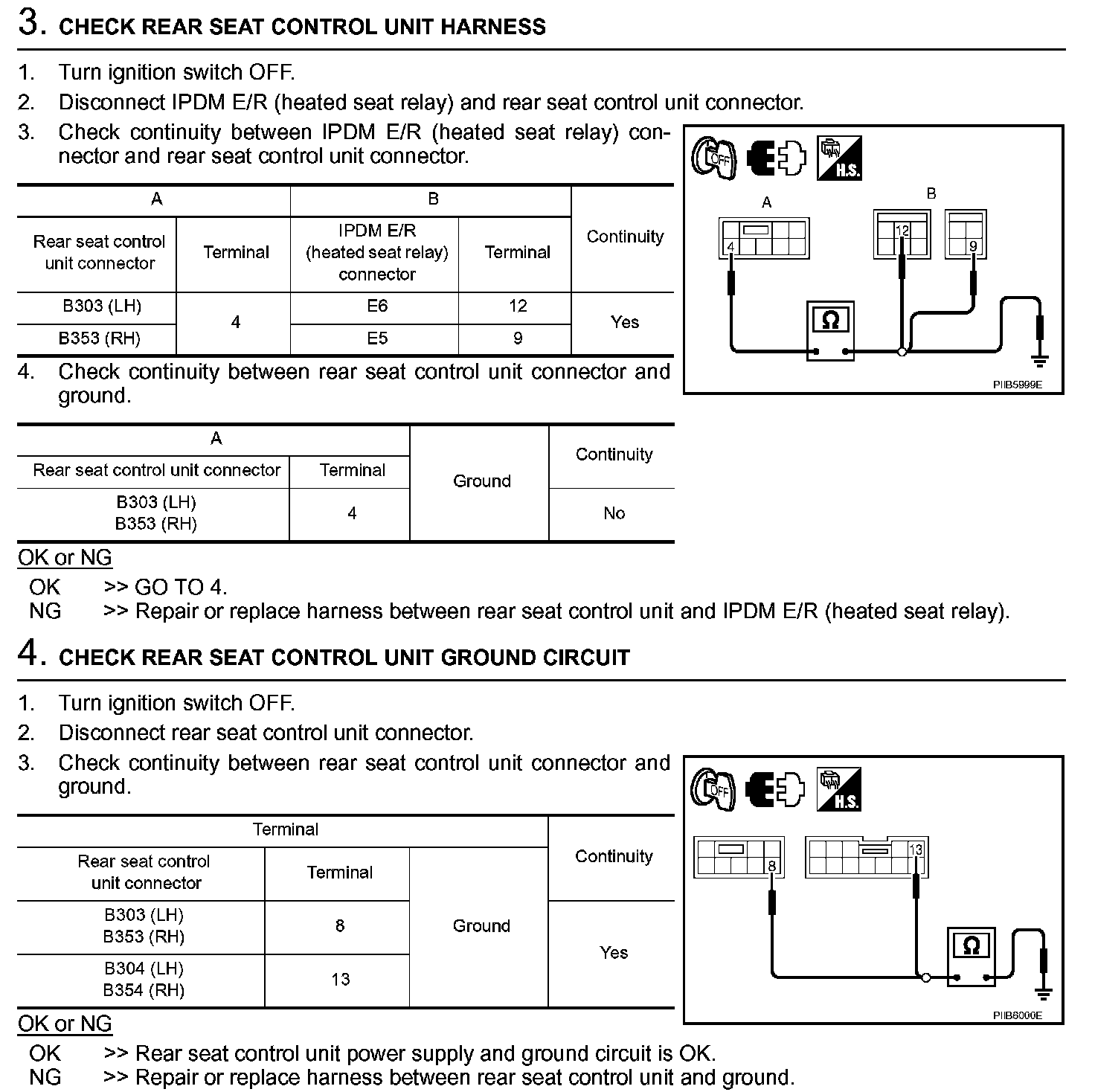

Rear Seat Control Unit Power Supply And Ground Circuit Inspection (Steps 3 - 4):
