Infiniti
>>
2006
>>
M45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Element
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

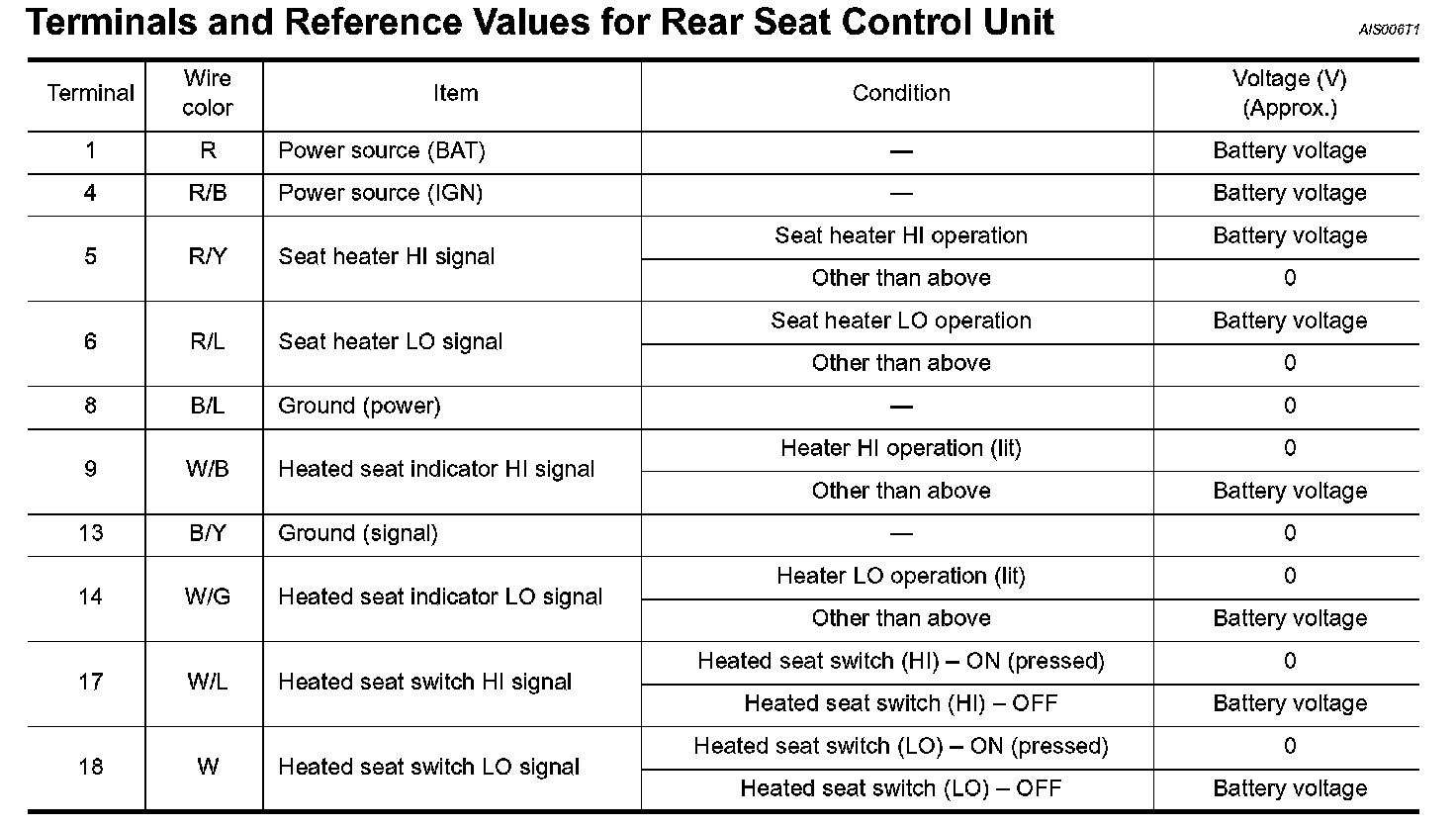

Terminal And Reference Value For Rear Seat Control Unit:
