Rear Heated Seat Switch Circuit Inspection
Rear Heated Seat Switch Circuit Inspection

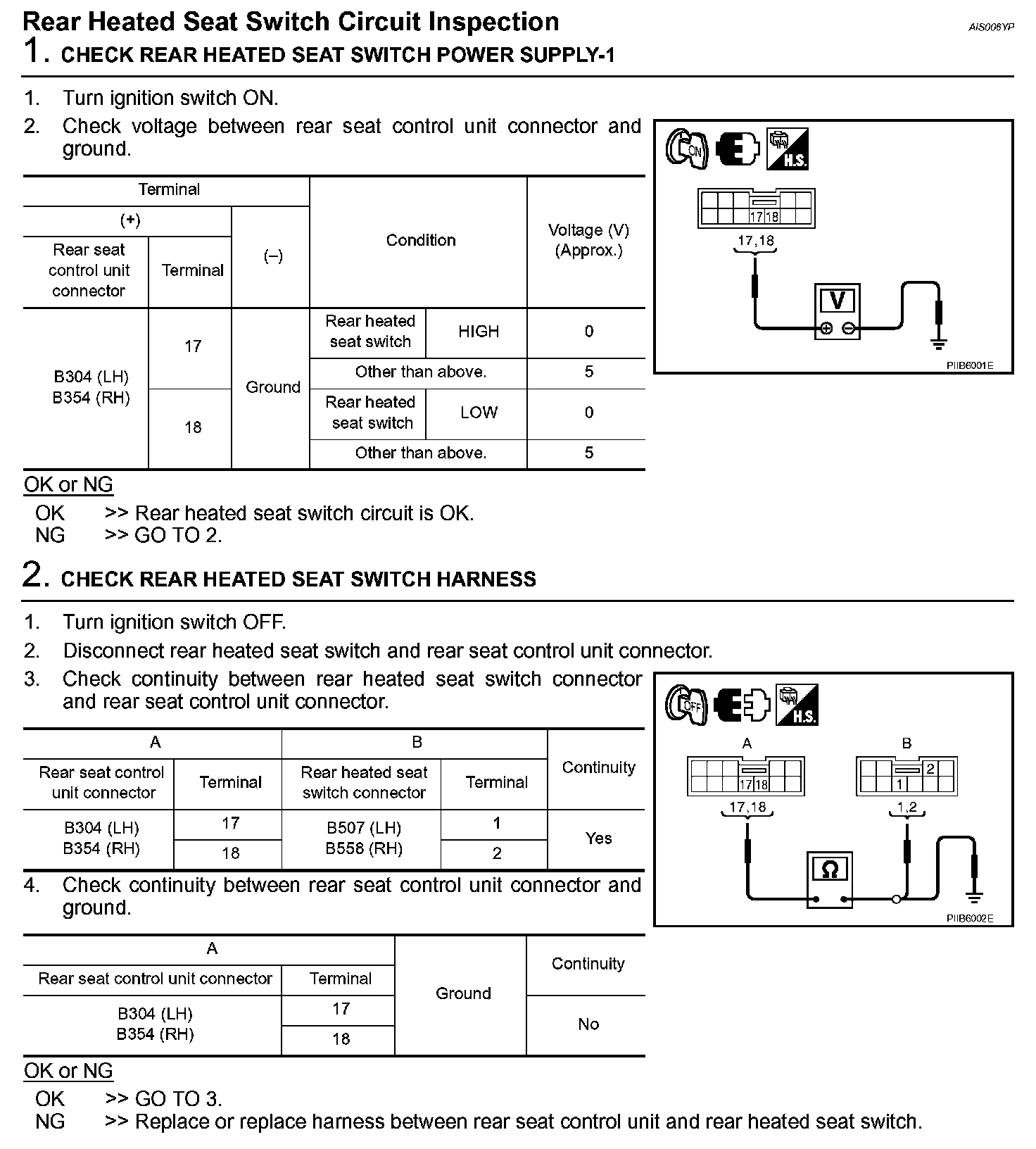

Rear Heated Seat Switch Circuit Inspection (Steps 1 - 5):

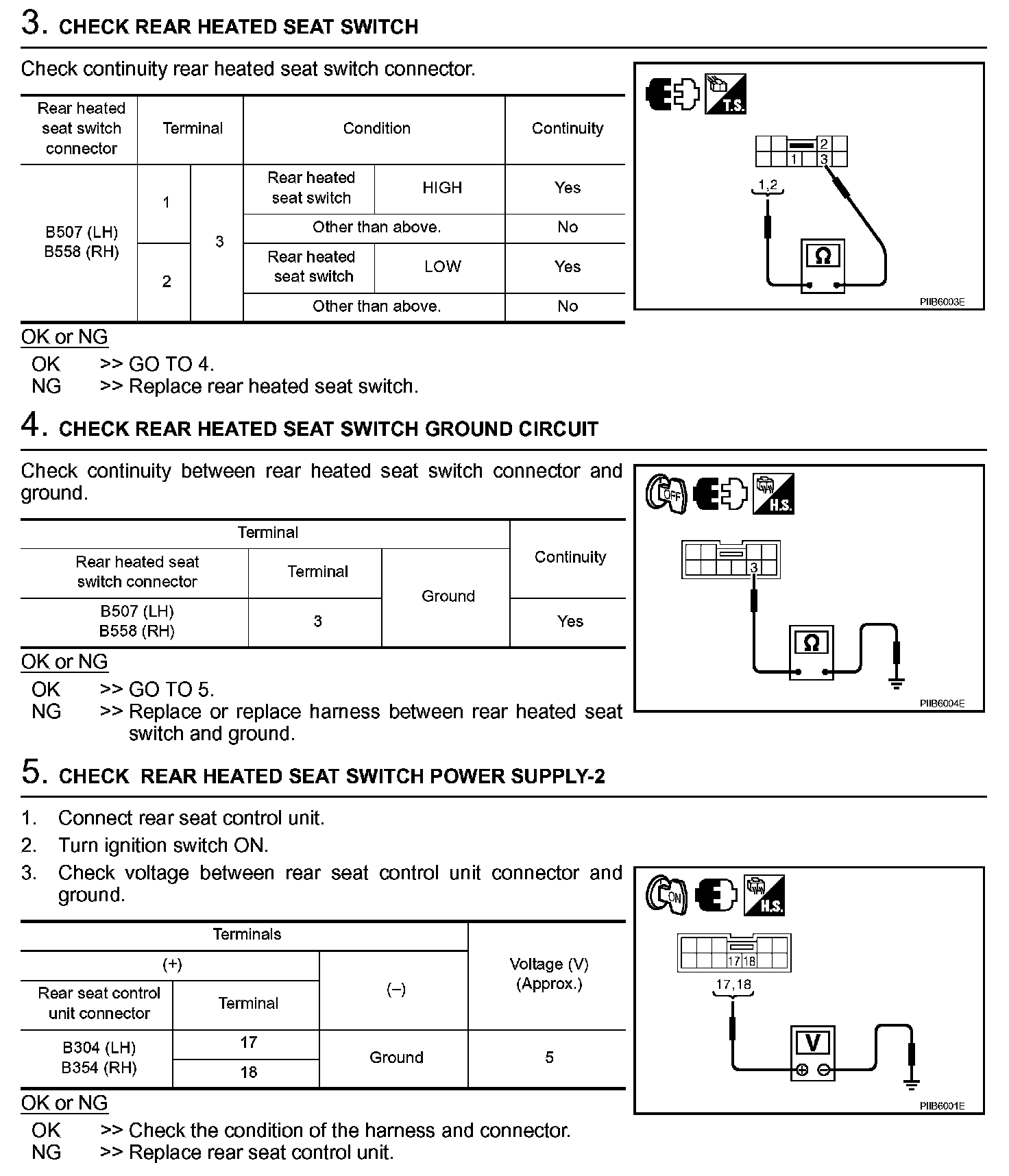

Rear Heated Seat Switch Circuit Inspection (Steps 3 - 5):
