Tilt Sensor Circuit Check

Tilt Sensor Circuit Check (Step 1):

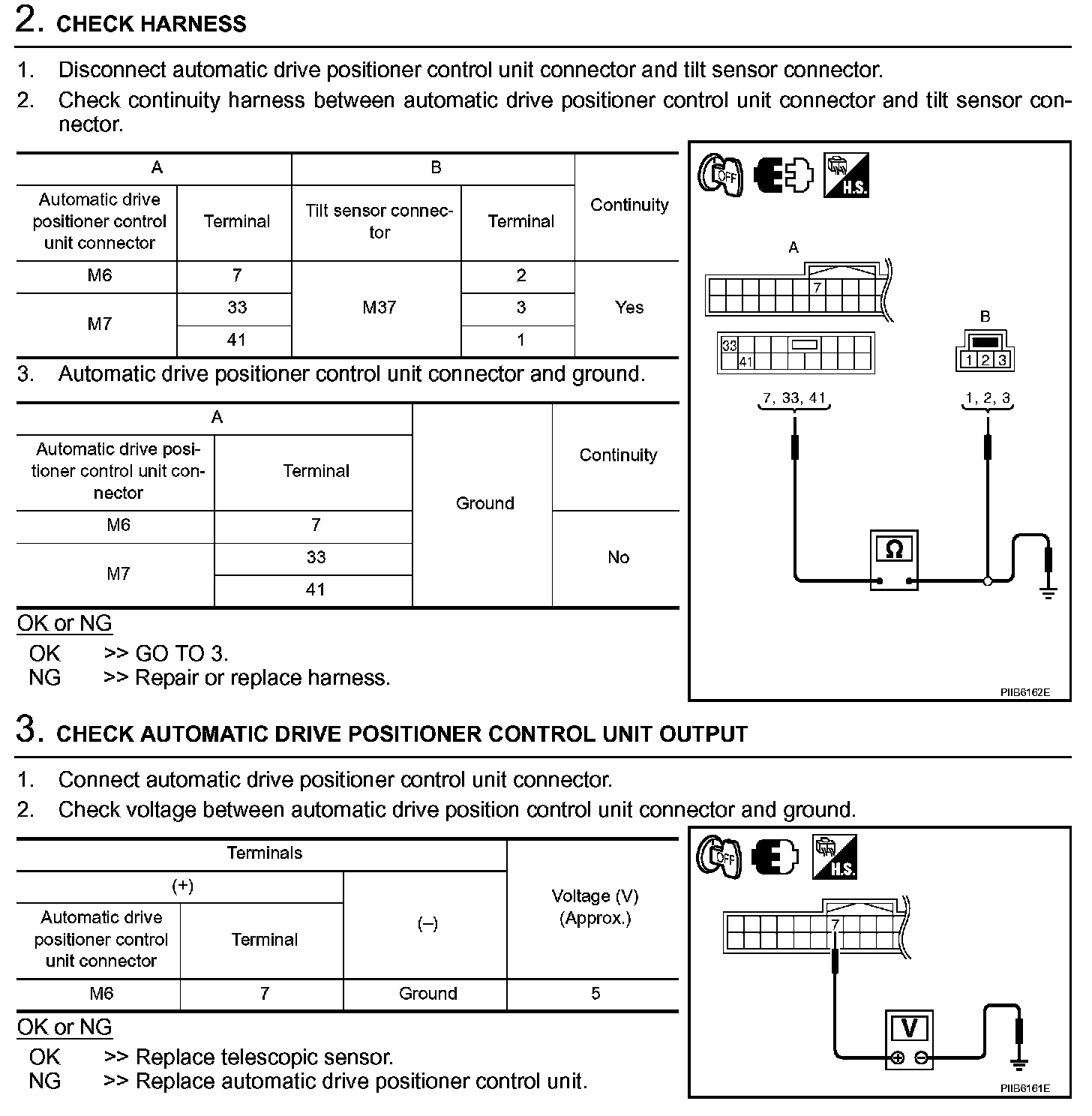

Tilt Sensor Circuit Check (Steps 2 - 3):
