Reclining Switch Circuit Check
Reclining Switch Circuit Check

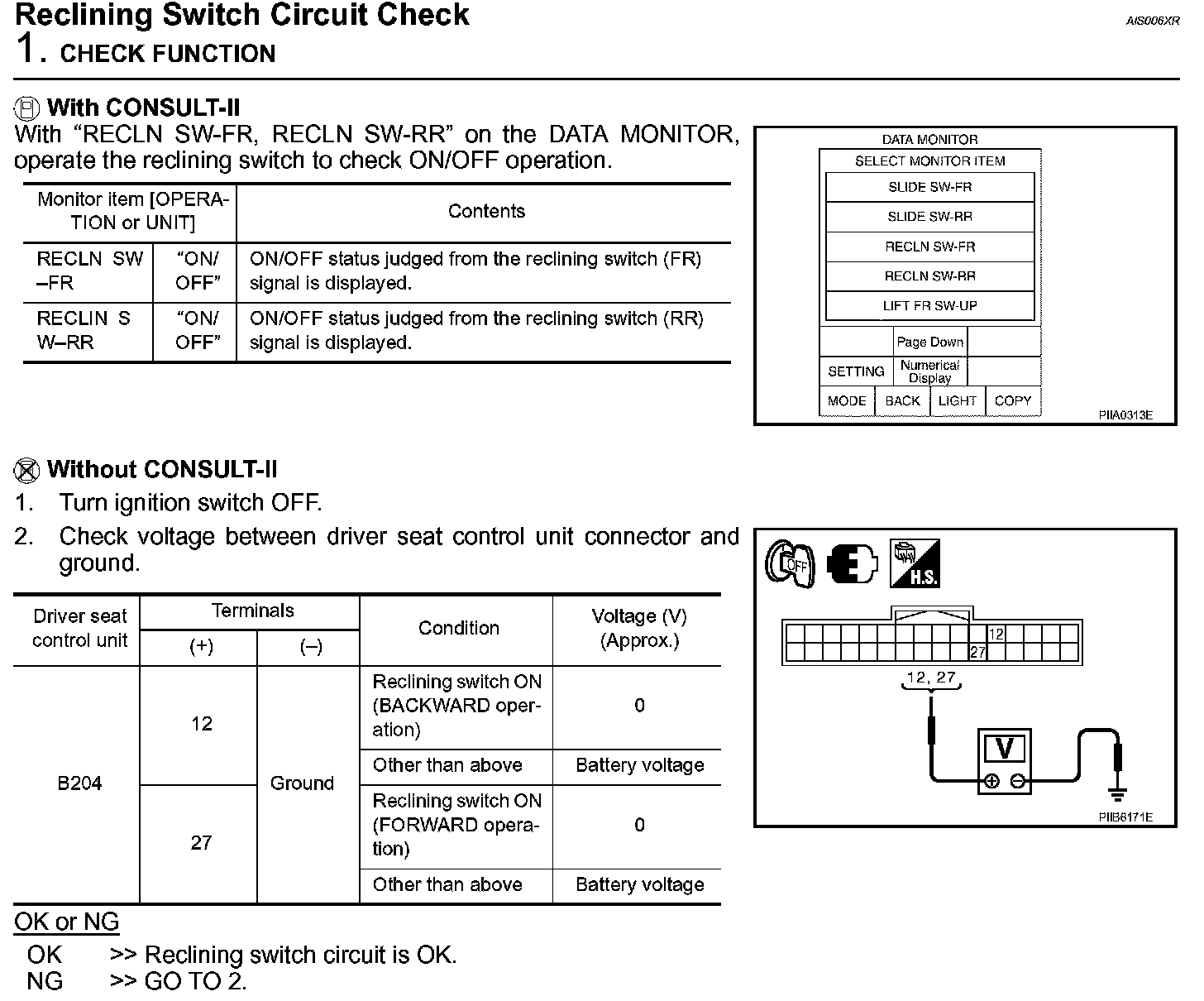

Reclining Switch Circuit Check (Step 1):
Reclining Switch Circuit Check (Steps 2 - 3):
