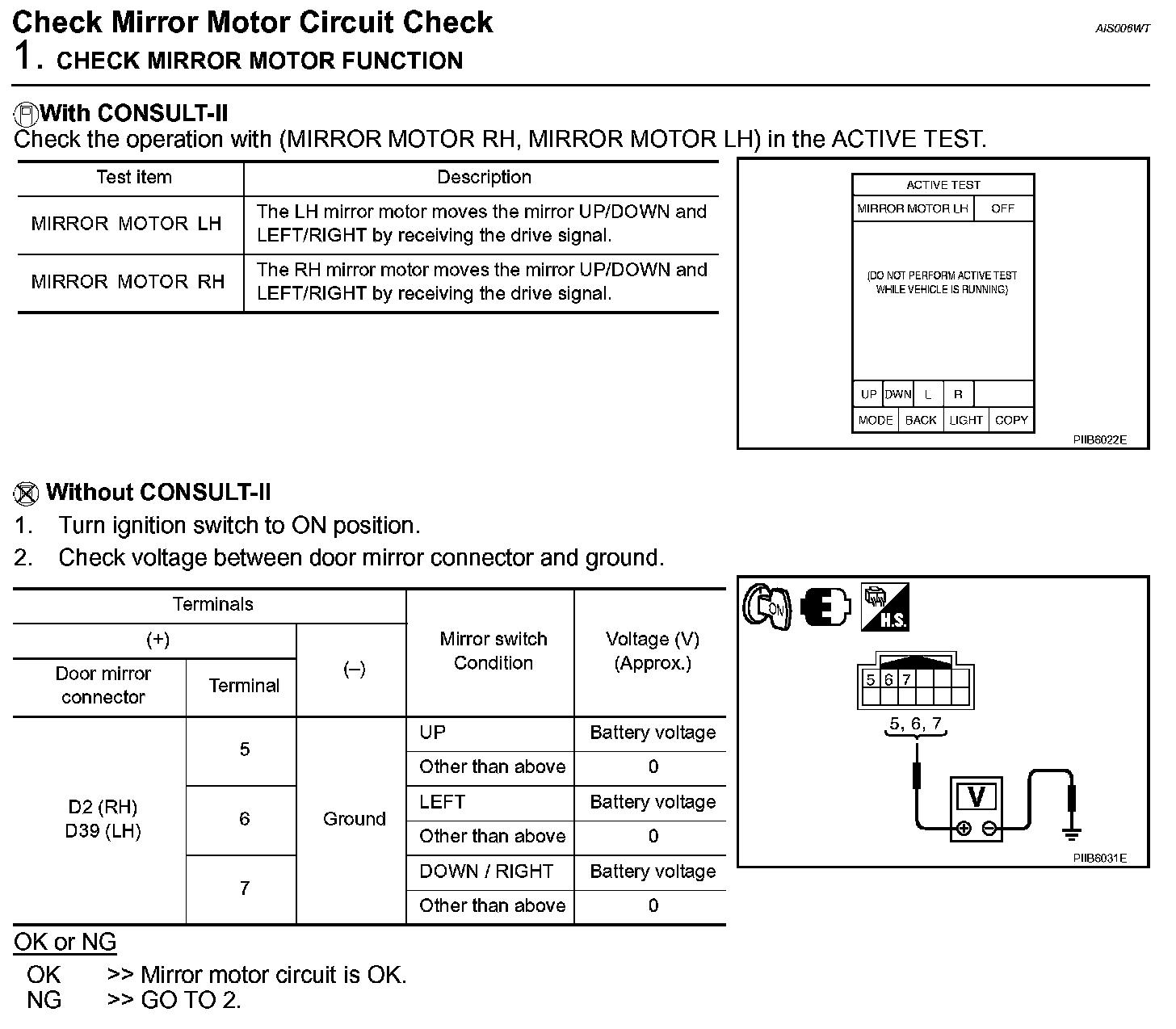

Check Mirror Motor Circuit Check

Check Mirror Switch Circuit Check (Step 1):

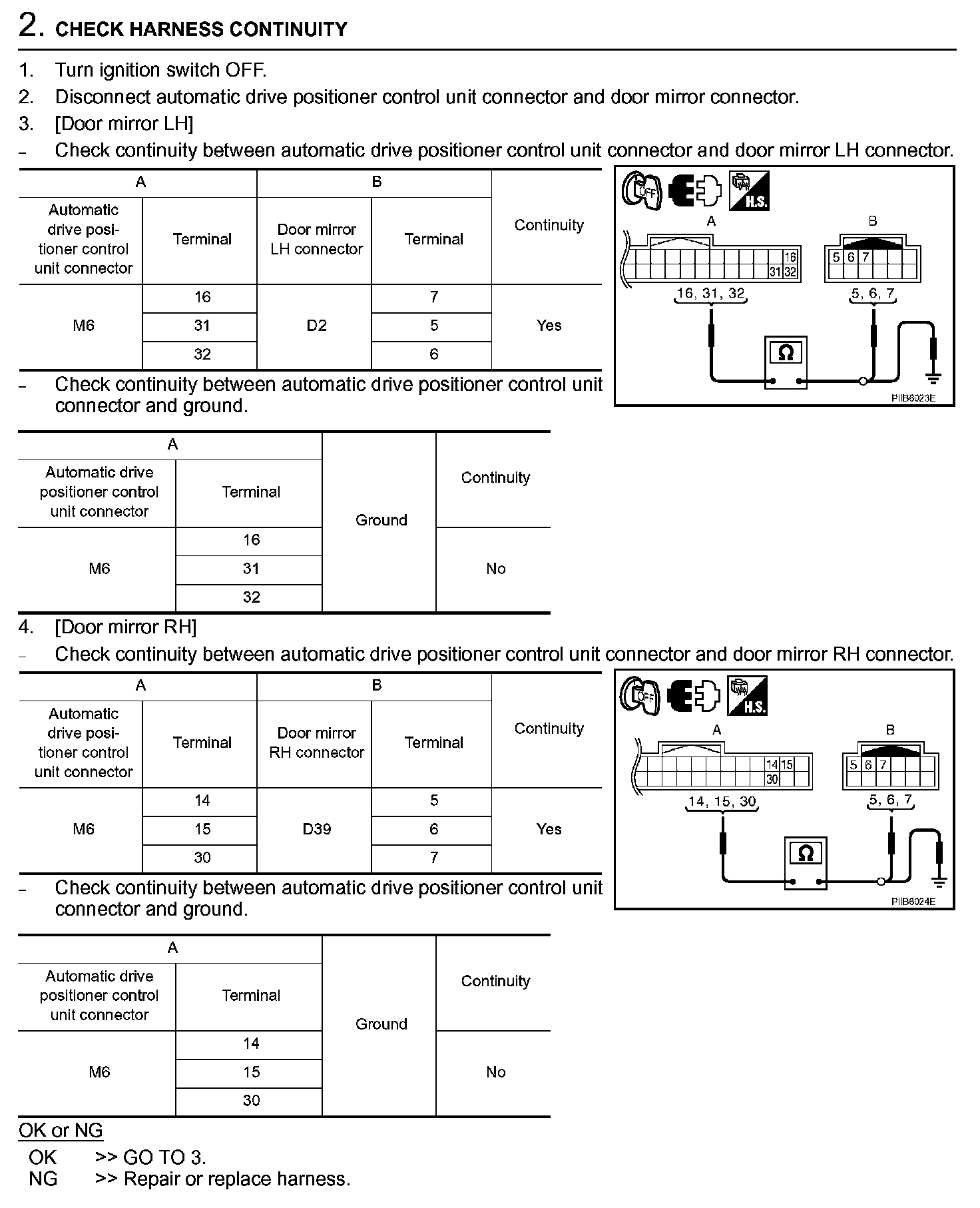

Check Mirror Switch Circuit Check (Step 2):



Check Mirror Switch Circuit Check (Step 3):
