Symptom Related Diagnostic Procedures

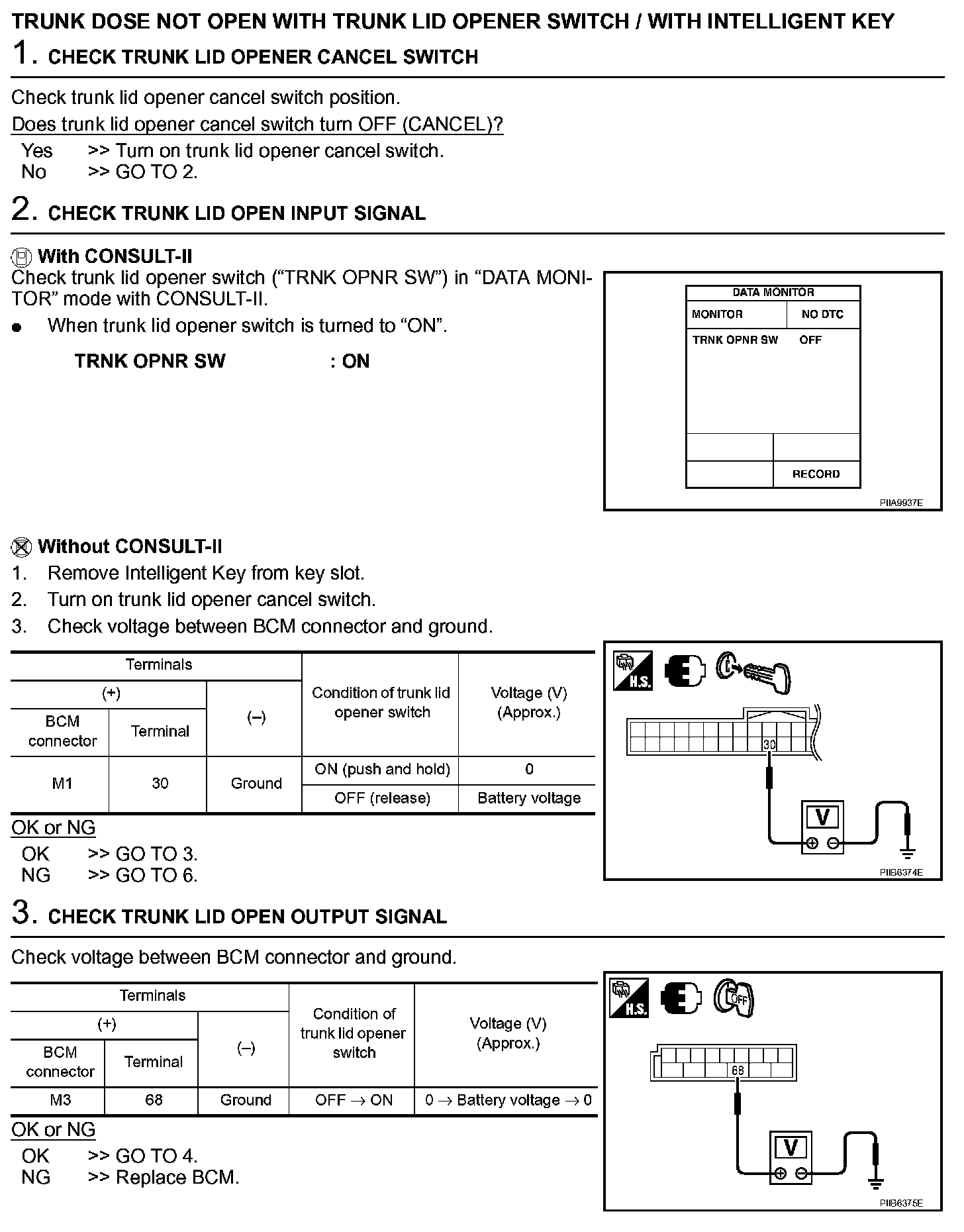

Trunk Does Not Open With Trunk Lid Opener Switch/With Intelligent Key (Steps 1 - 3):

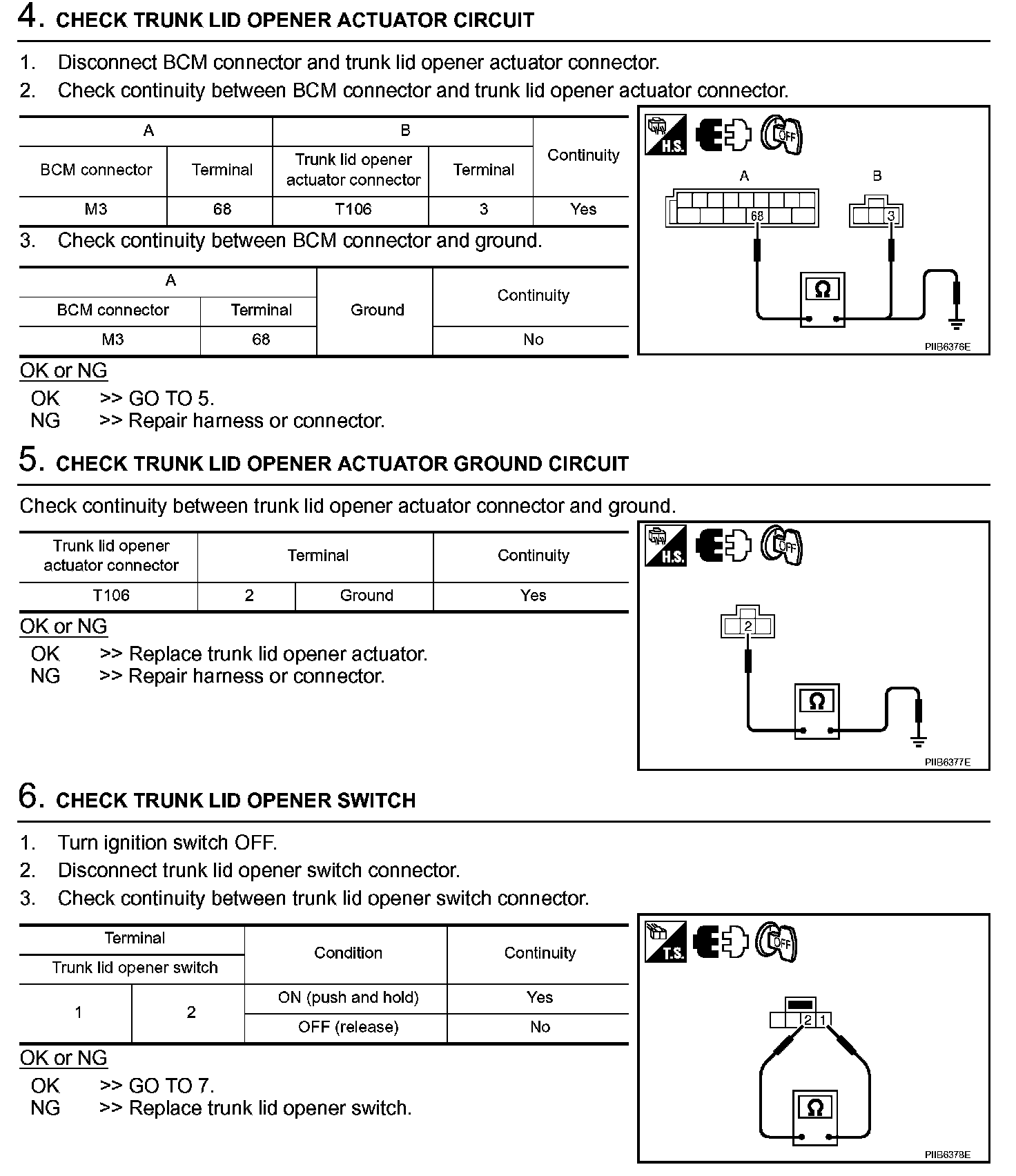

Trunk Does Not Open With Trunk Lid Opener Switch/With Intelligent Key (Steps 4 - 6):

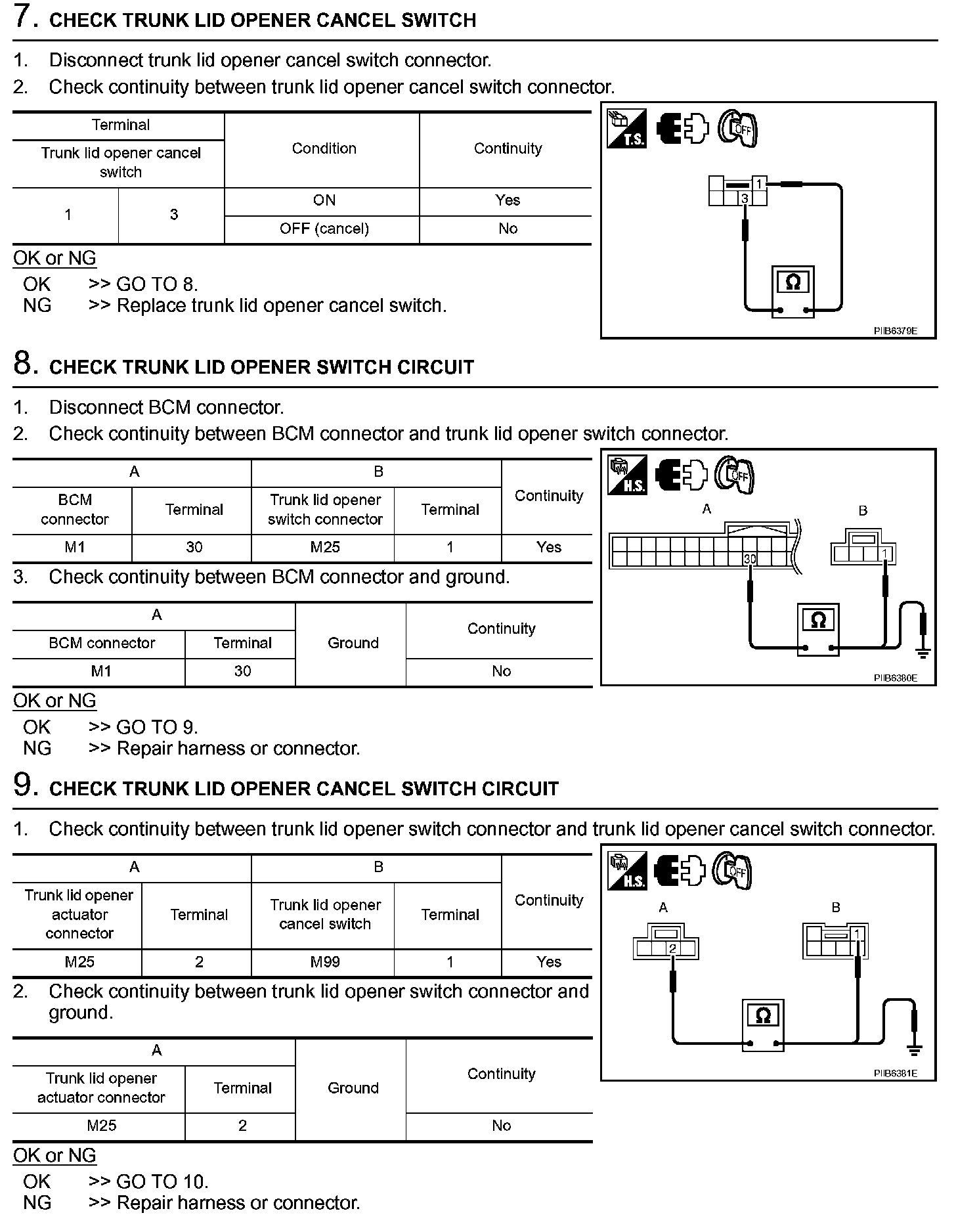

Trunk Does Not Open With Trunk Lid Opener Switch/With Intelligent Key (Steps 7 - 9):

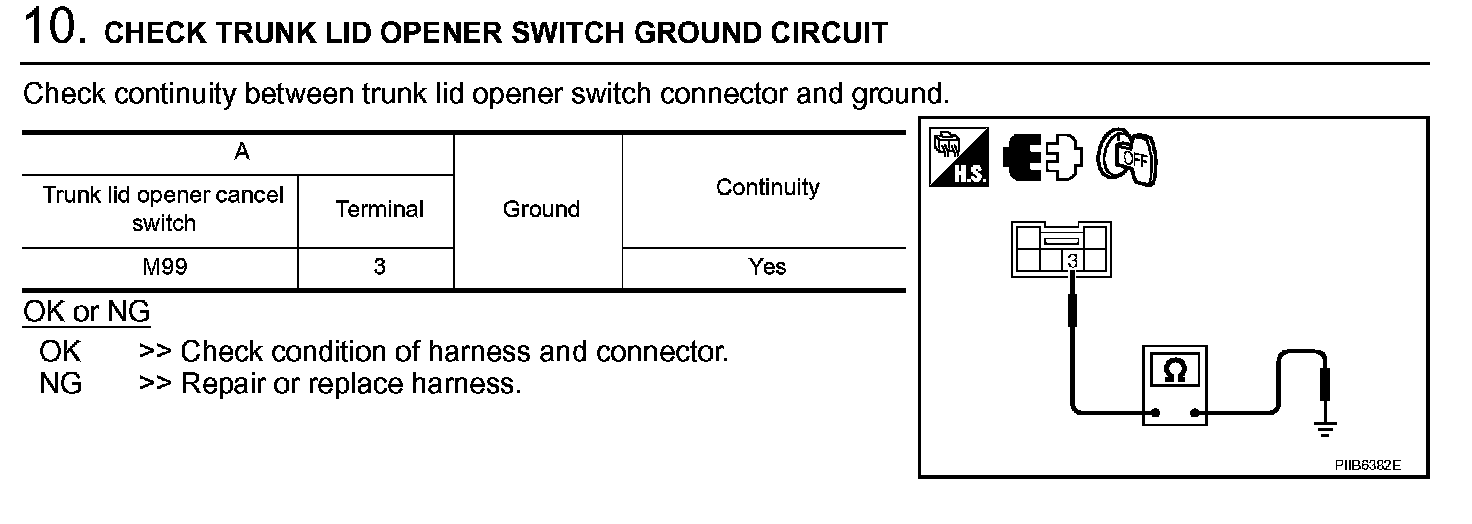

Trunk Does Not Open With Trunk Lid Opener Switch/With Intelligent Key (Step 10):
