With Mobile Entertainment System

Audio Unit

REMOVAL
1. Remove cluster lid C.

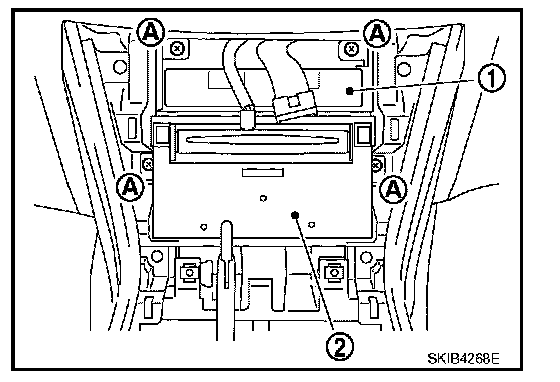

2. Remove screws (A) and remove audio unit (2) in conjunction with unified meter and A/C amp (1).




3. Remove screws (A) and (B)
4. Remove meter and A/C amp (1), audio unit (2) and bracket (3).

CAUTION: Be careful not to allow foreign material to enter from CD slot.

INSTALLATION
Installation is the reverse order of removal.

CAUTION: Unified meter and A/C amp screws are different from other securing screws. Never confuse them when installing.
