Splitter

Splitter

REMOVAL
1. Remove trunk front finisher.

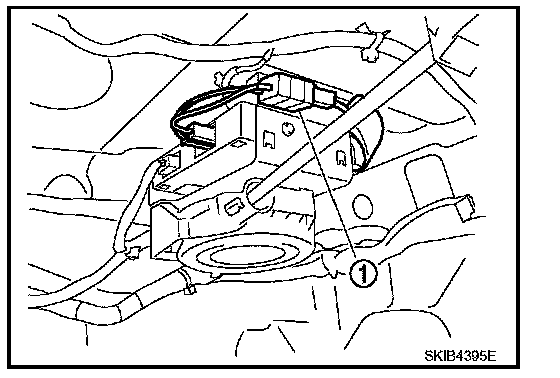

2. Disconnect connector and remove splitter (1).

INSTALLATION
Installation is the reverse order of removal.
