Without Mobile Entertainment System

GPS Antenna

REMOVAL
1. Remove NAVI control unit.
2. Remove upper ventilator grille.

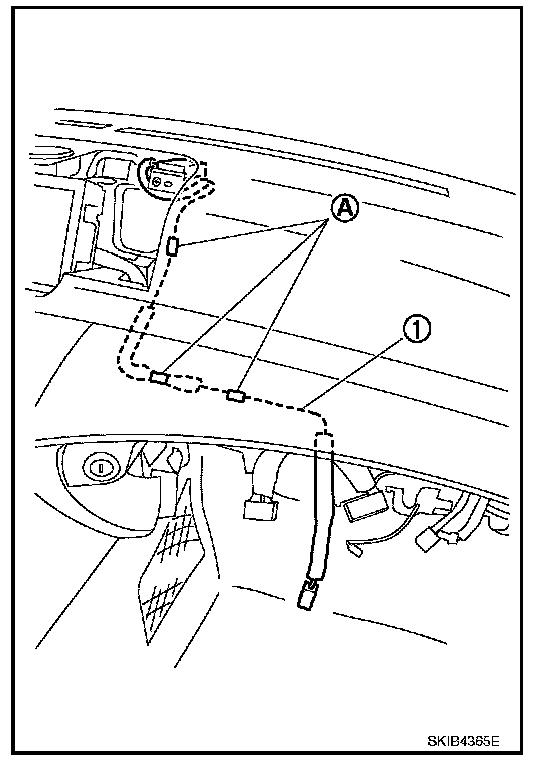

3. Remove clips (A) and remove antenna feeder (1) from instrument panel and pad.

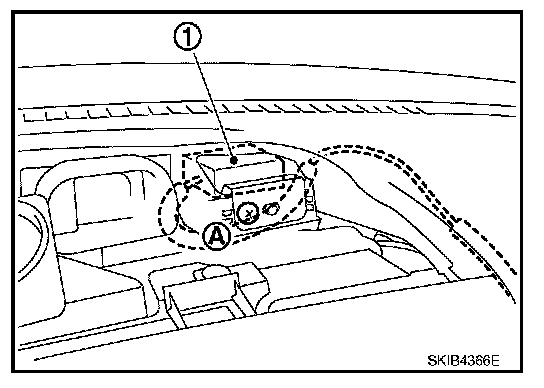

4. Remove screw (A) and remove GPS antenna (1).

INSTALLATION
Installation is the reverse order of removal.
