Without Mobile Entertainment System
>>
Audio Unit For BOSE System
Audio Unit For BOSE System

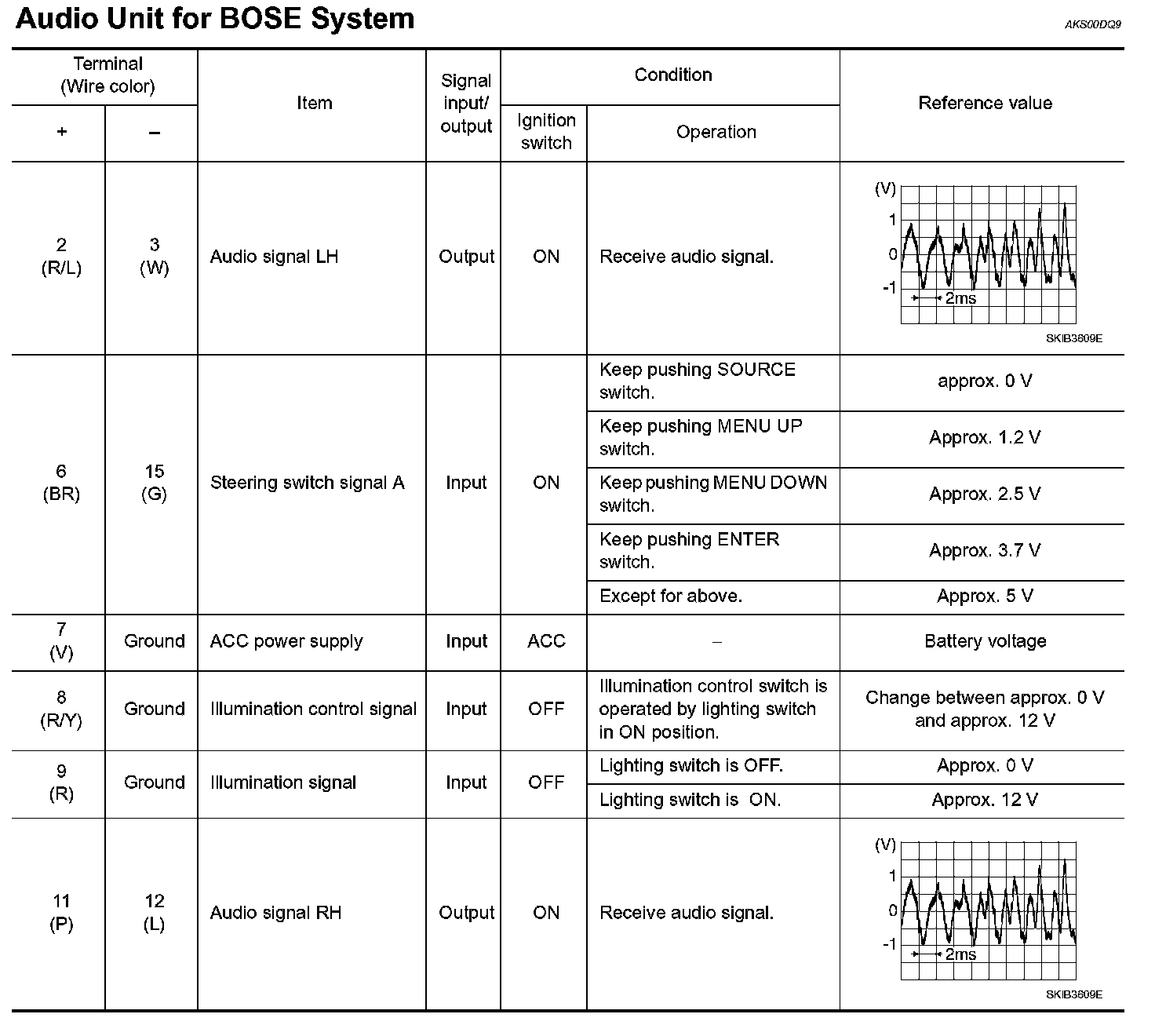

Audio Unit For BOSE System Part 1:

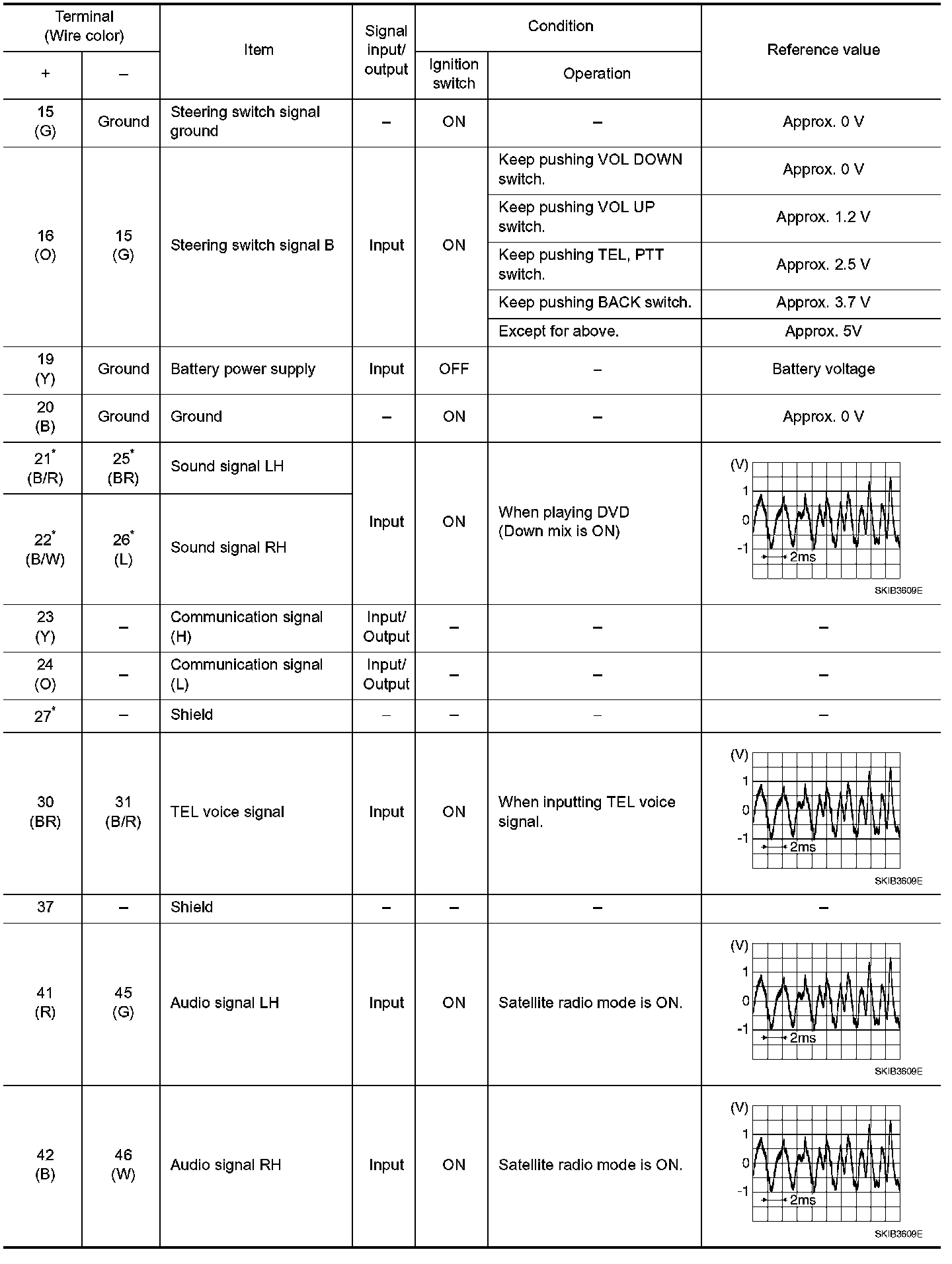

Audio Unit For BOSE System Part 2:

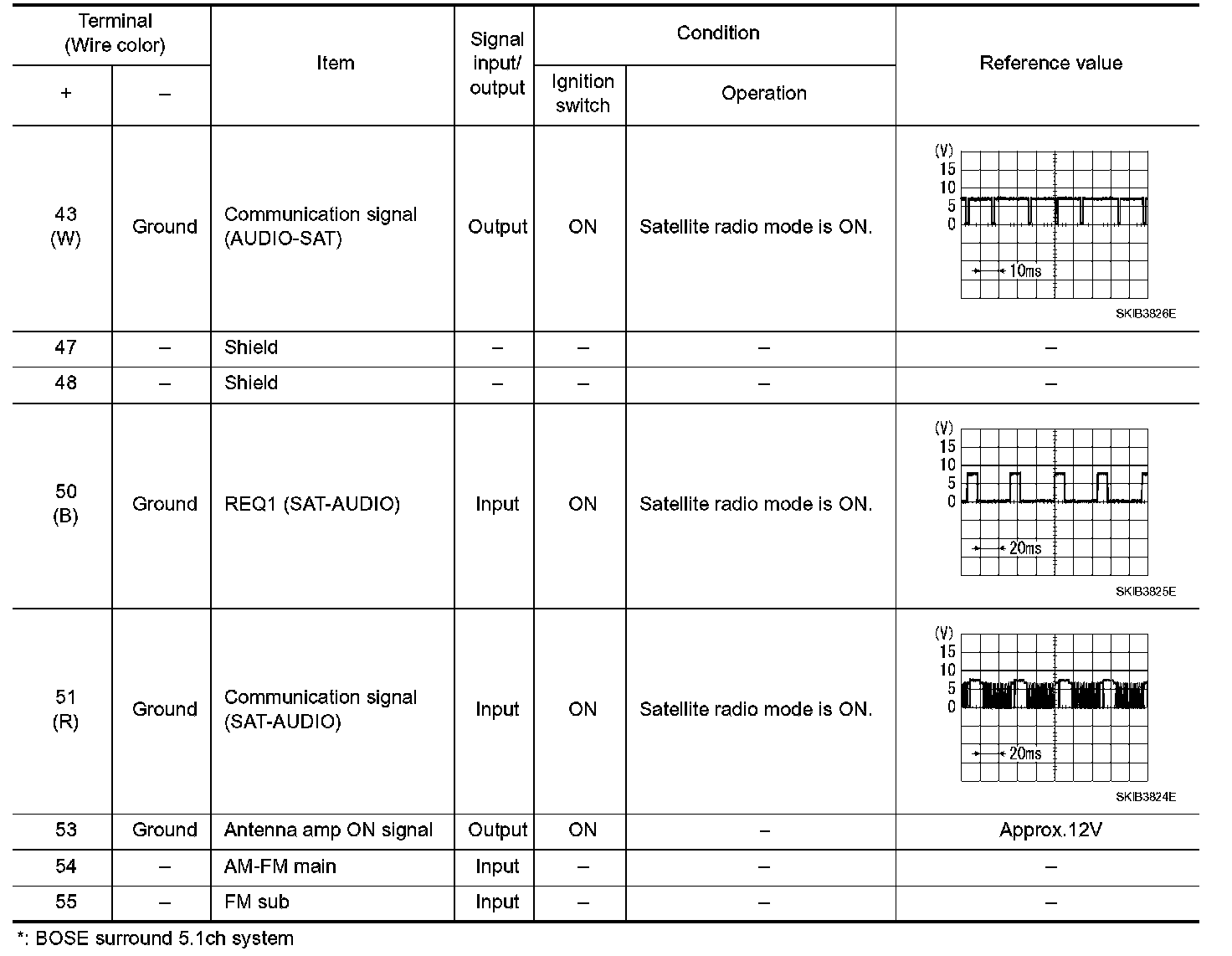

Audio Unit For BOSE System Part 3:
