Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2006
>>
M45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Entertainment Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
With Mobile Entertainment System
>>
Rear Display Unit
Rear Display Unit

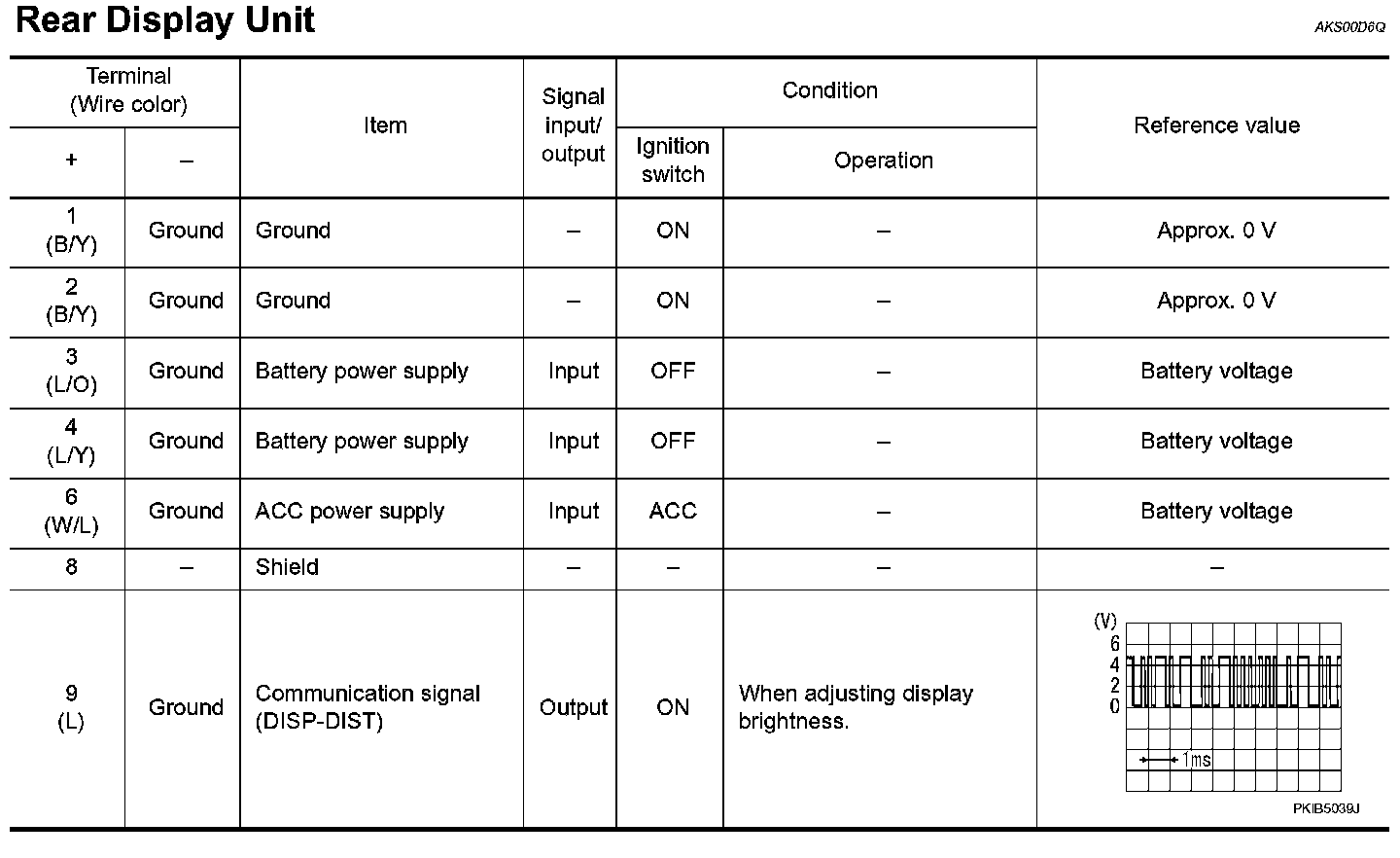

Rear Display Unit Part 1:

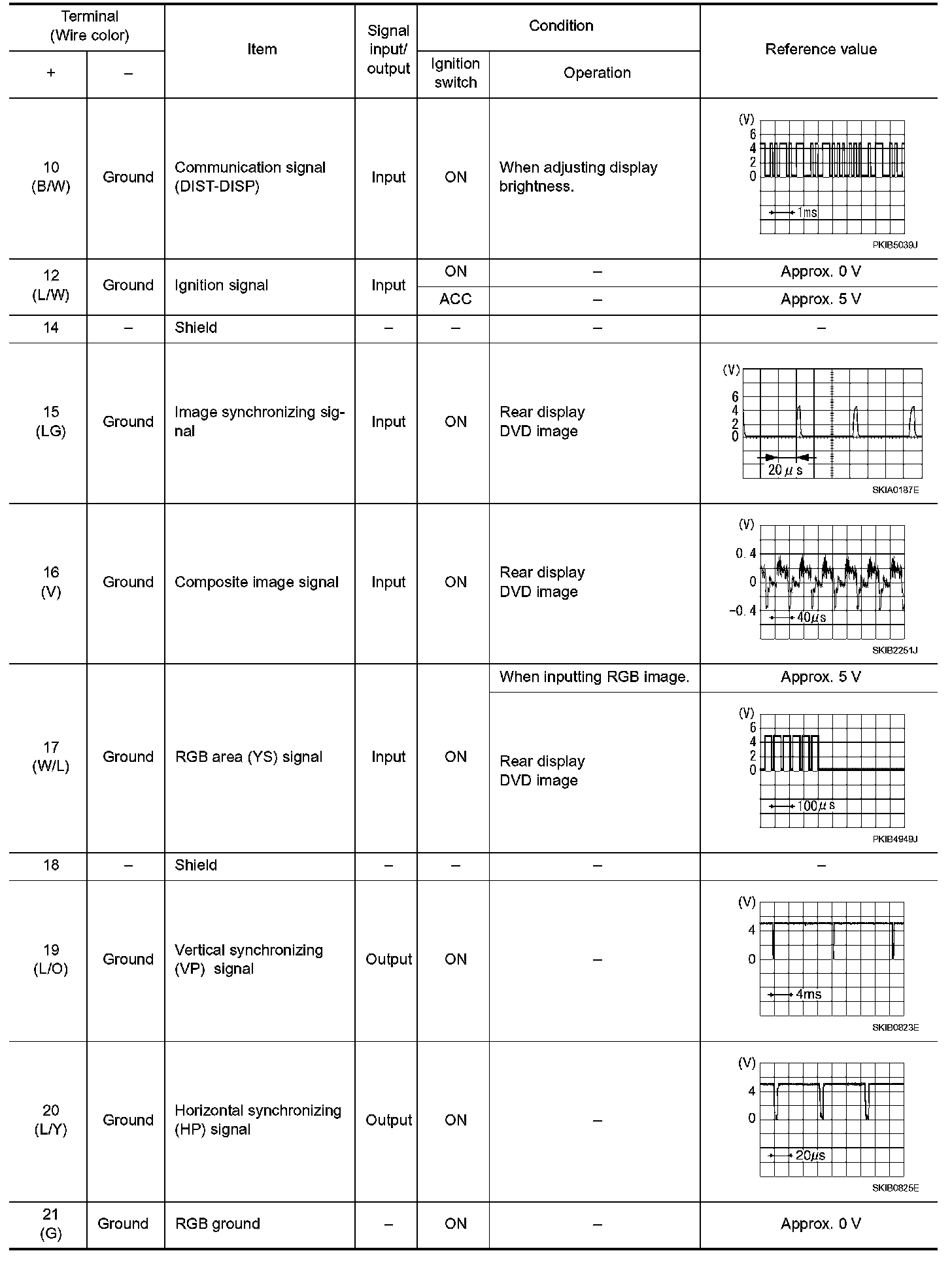

Rear Display Unit Part 2:

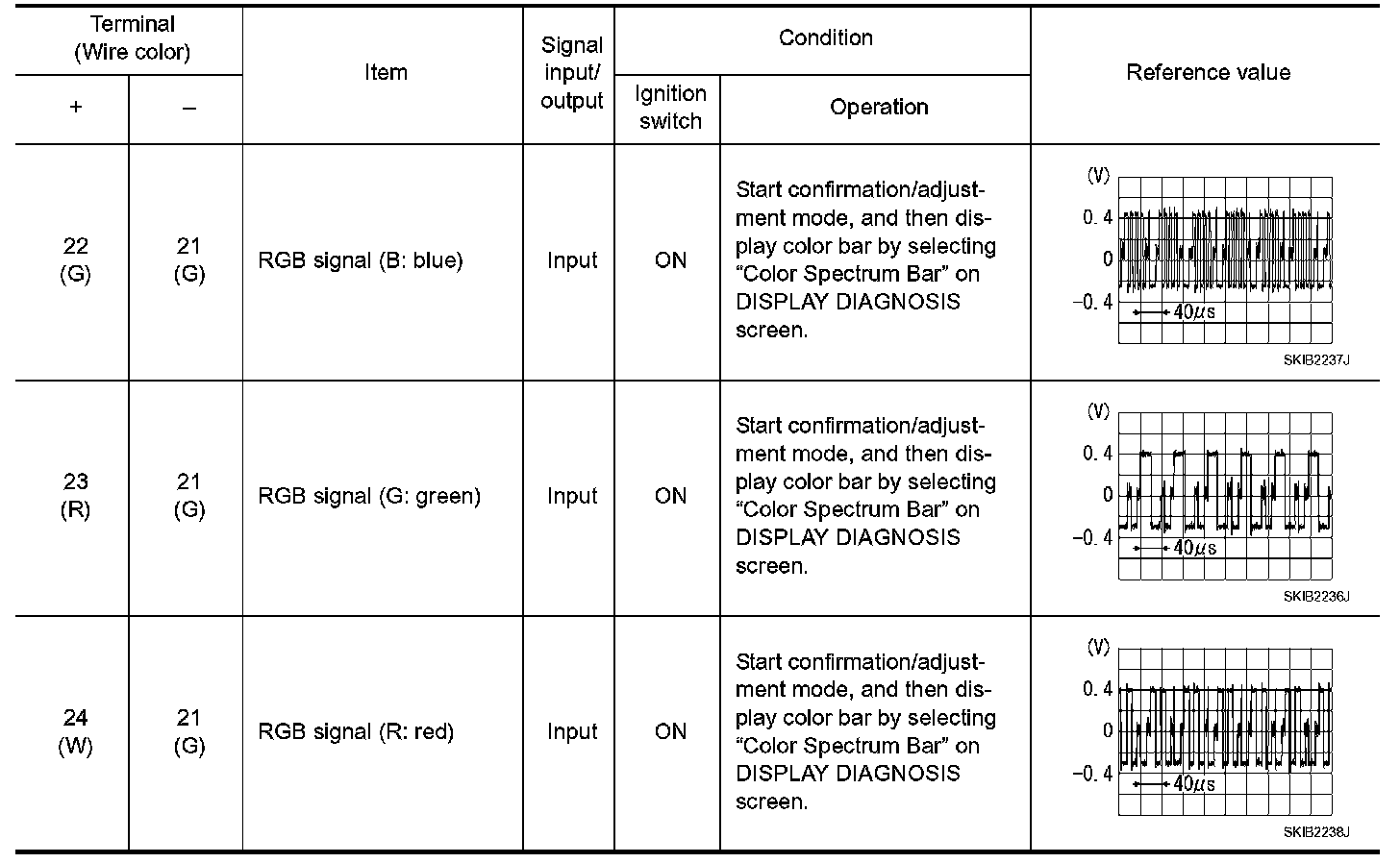

Rear Display Unit Part 3:
