With Mobile Entertainment System
Auxiliary Input JacksREMOVAL
1. Remove center console rear finisher.

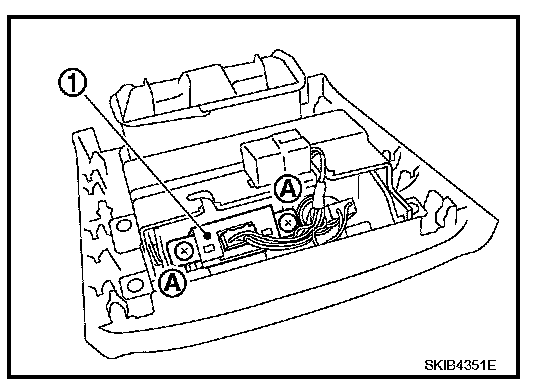

2. Remove screws (A) and disconnect connector. Remove auxiliary input jacks (1) from center console rear finisher.
INSTALLATION
Installation is the reverse order of removal.
