Microphone

Microphone

REMOVAL
1. Remove front pillar garnish.
2. Remove sun-visor and sun-visor holder.
3. Remove dual-sunvisor.
4. Remove assistance grip (front).
5. Bear down headlining assembly (front) to obtain work space between headlining assembly and vehicle.

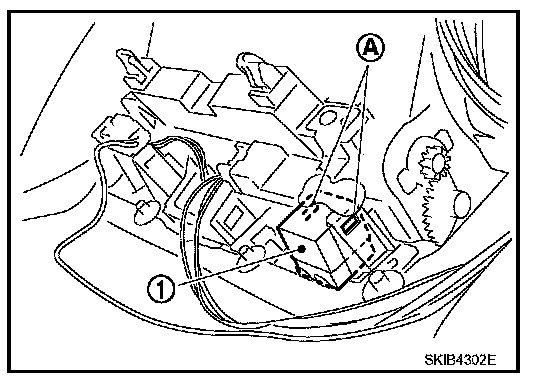

6. Disengage tabs (A) and connector to separate microphone unit (1).

INSTALLATION
Installation is the reverse order of removal.
