Without Mobile Entertainment System - Schematic - Base Audio System
Without Mobile Entertainment System - Schematic - Base Audio System

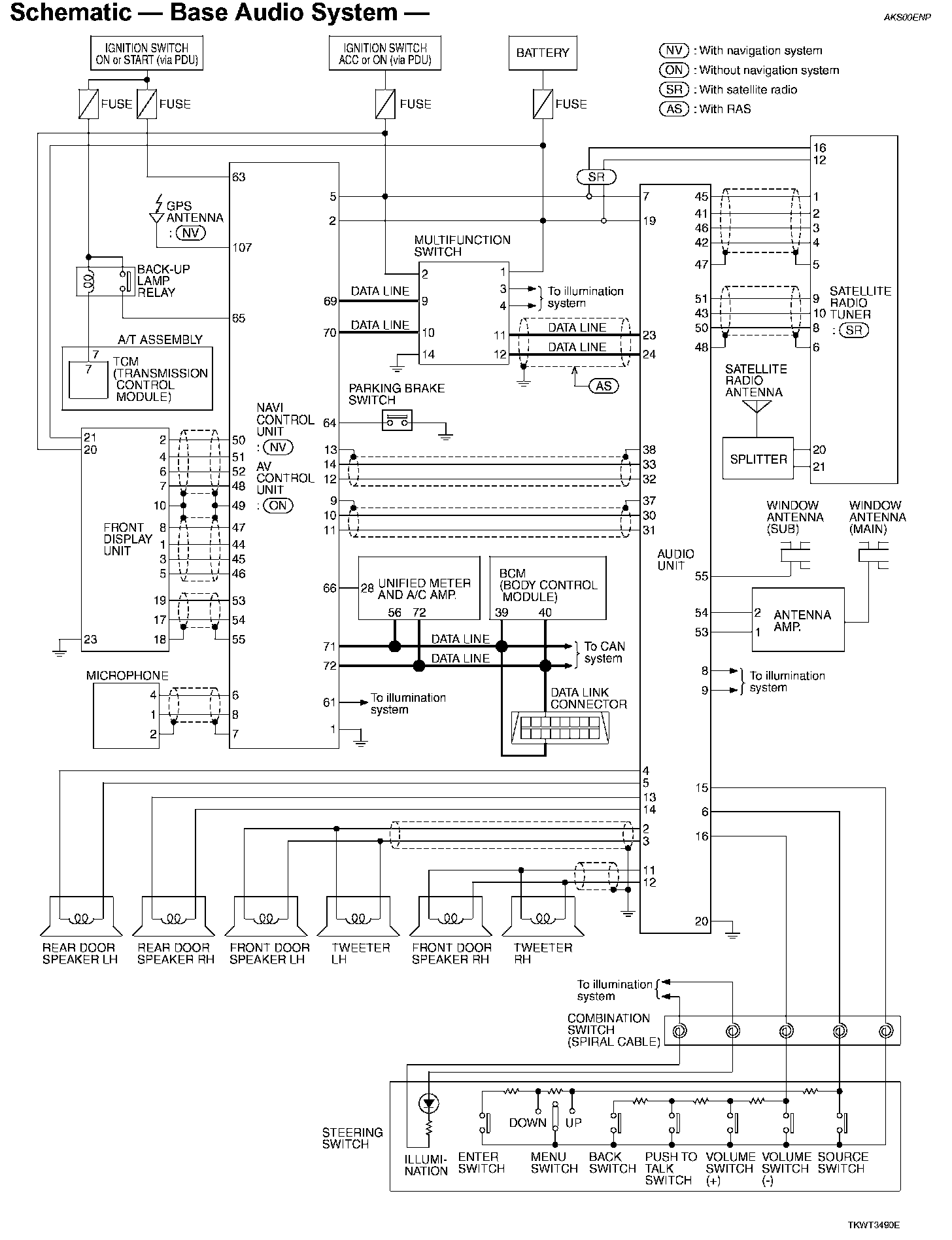

Without Mobile Entertainment System Schematic (Base Audio System):
