With Mobile Entertainment System

DVD Player

REMOVAL
1. Remove cup holder.
2. Disconnect sub harness connector.

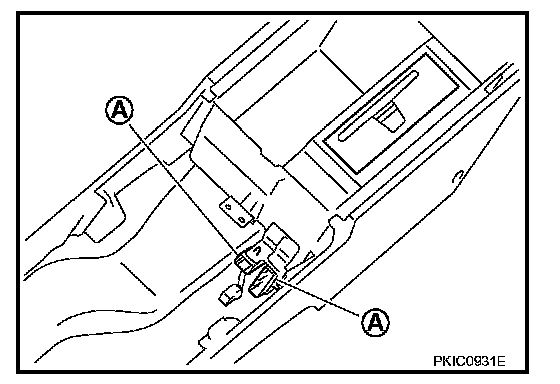

3. Remove sub harness connectors (A) from bracket.

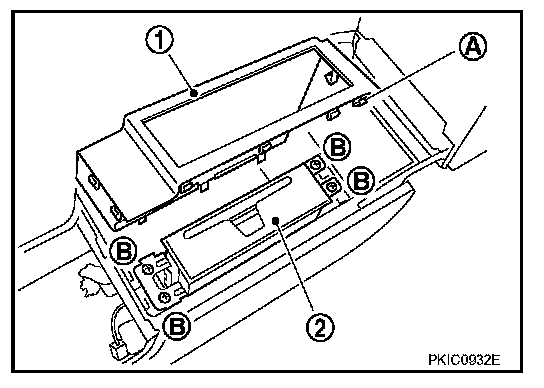

4. Remove metal clips (A) and 8 pawls. Then remove DVD player cover (1).
5. Remove screws (B) and remove DVD player (2).

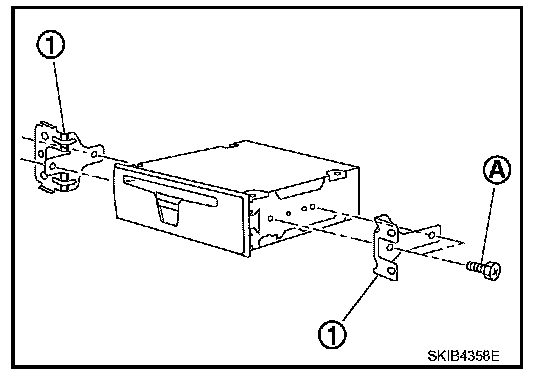

6. Remove screws (A) and remove brackets (1).

INSTALLATION
Installation is the reverse order of removal.
