Shift Cable: Adjustments

Adjustment of A/T Position

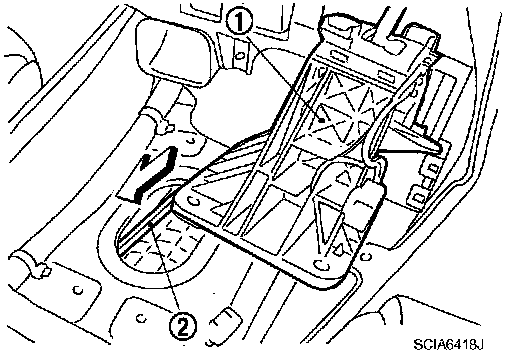

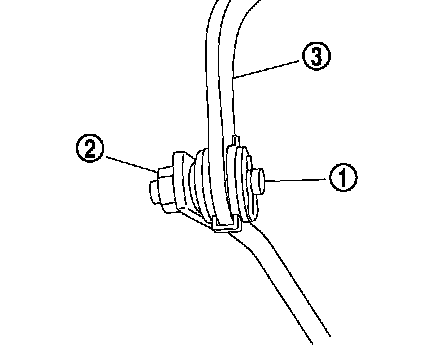

1. Loosen nut (2) of pivot pin (1).
2. Place PNP switch and selector lever in "P" position.
3. While pressing lower lever (3) toward rear of vehicle (in "P" position direction), tighten nut (2) to specified torque.
