Brake Pedal Assy
BRAKE PEDALInspection and Adjustment

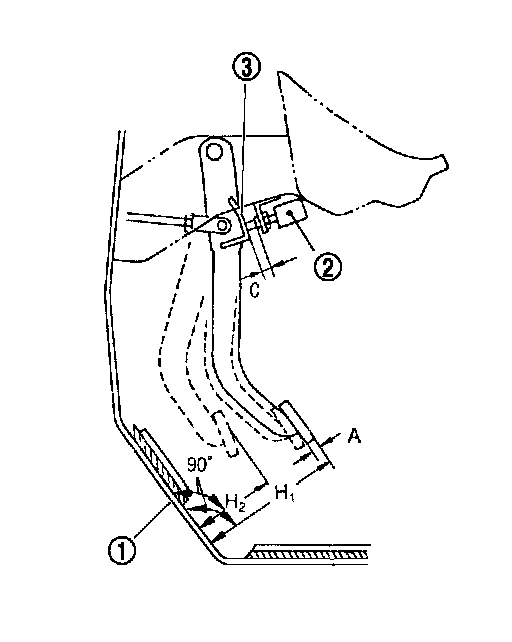

Play and clearance inspection between brake pedal and floor panel with pedal depressed.
^ Check brake pedal play.
^ Check brake pedal height from dash lower panel (1).

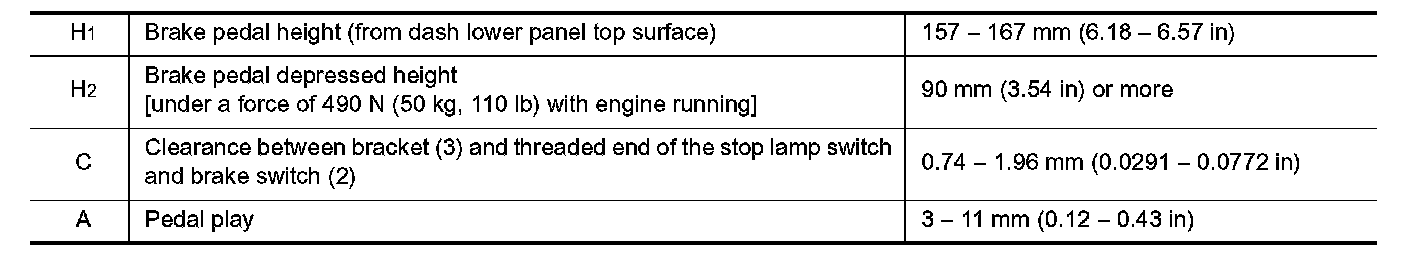

^ Adjust height referring to the following specifications.
