Infiniti
>>
2006
>>
M35 V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Power Distribution Module
>>
Locations
>>

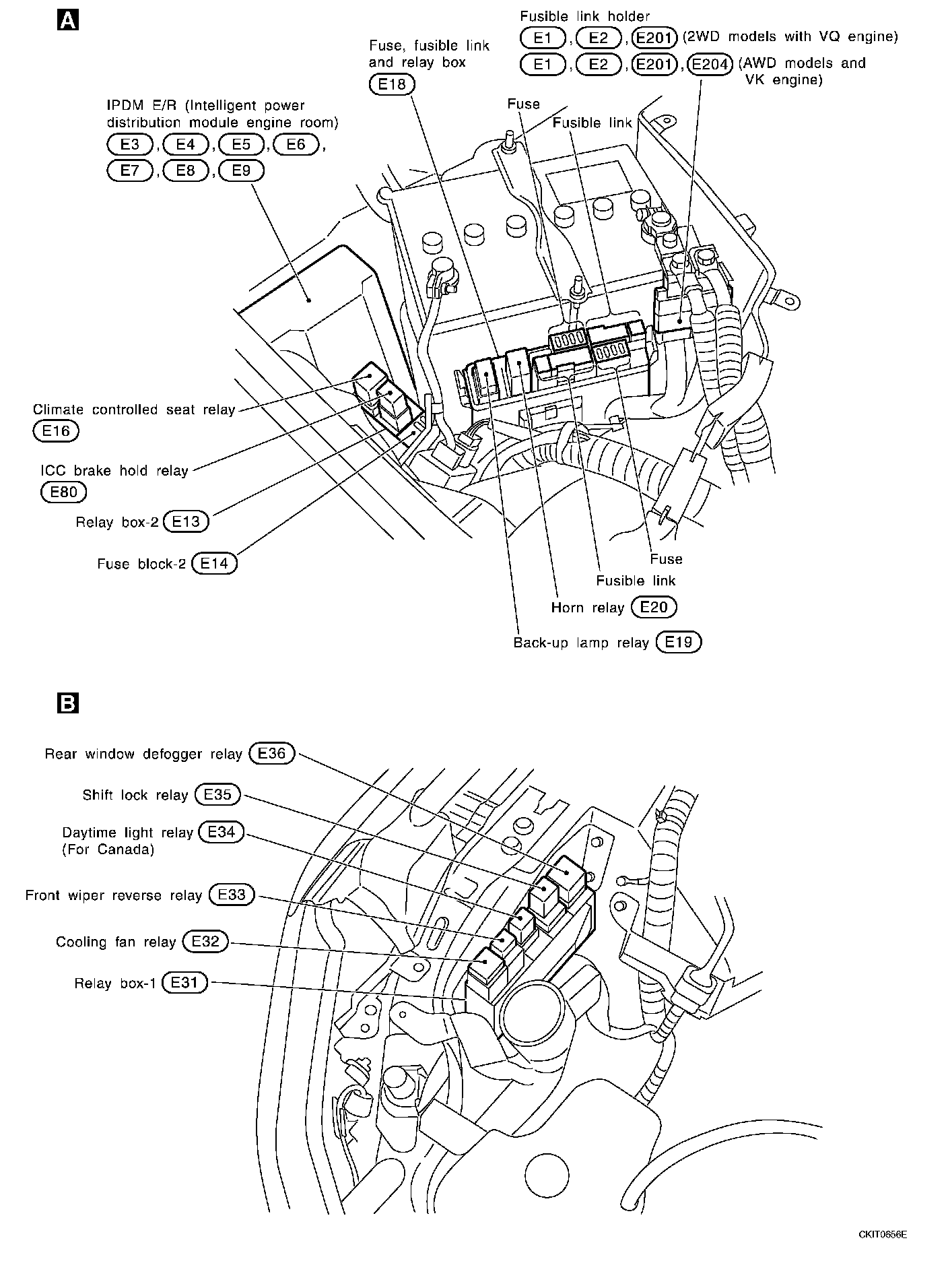

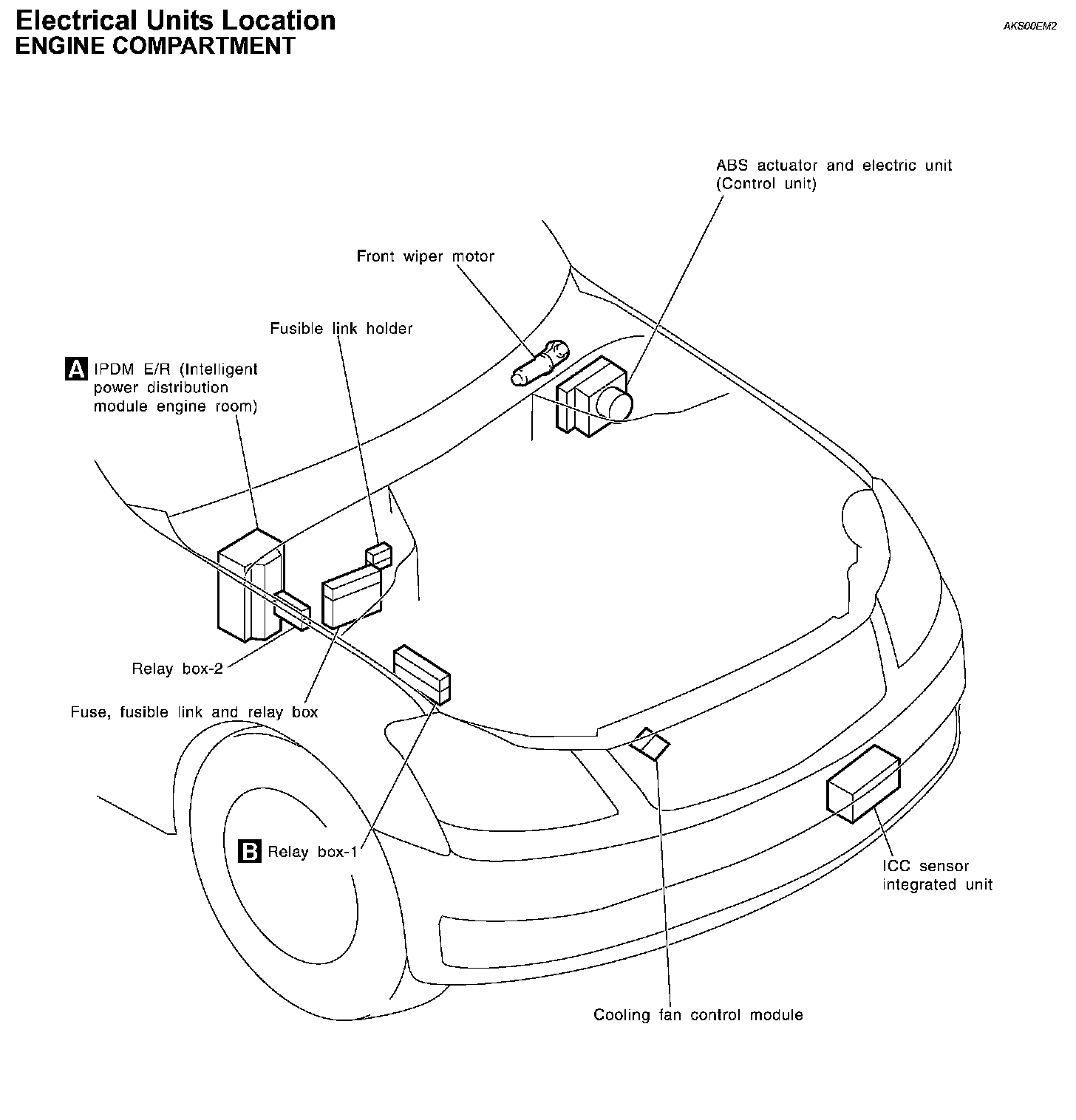

Engine Compartment Electrical Units Locations
Engine Compartment Electrical Units Locations
Engine Compartment Electrical Units Location:
