Camber Inspection

CAMBER INSPECTION

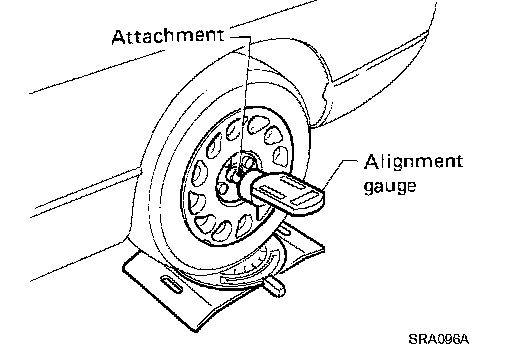

^ Measure camber of both right and left wheels with a suitable alignment gauge.
^ Adjust in accordance with the following procedures.
Standard value
Camber: Refer to "SERVICE DATA". Specifications

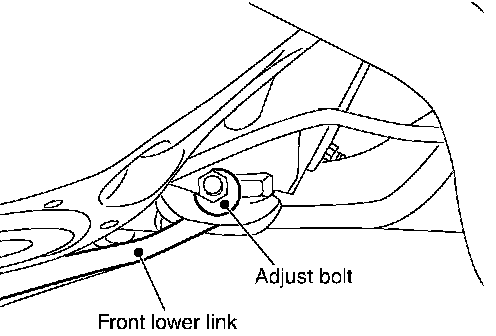

^ If outside the standard value, adjust with adjusting bolt in front lower link.

NOTE: After adjusting camber, be sure to check toe-in.
