SE-R/SEAT
SE-R/SEAT-01:

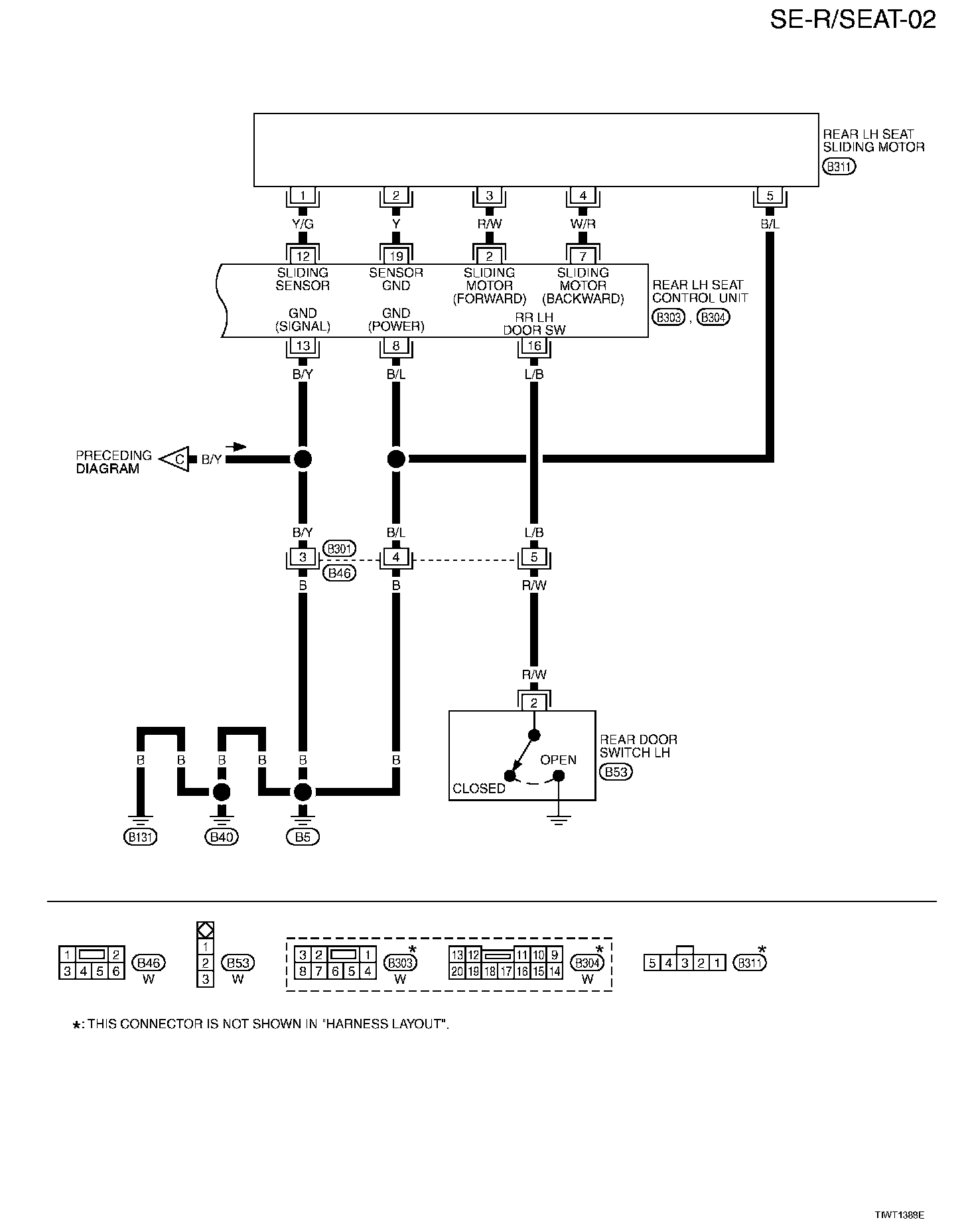

SE-R/SEAT-02:

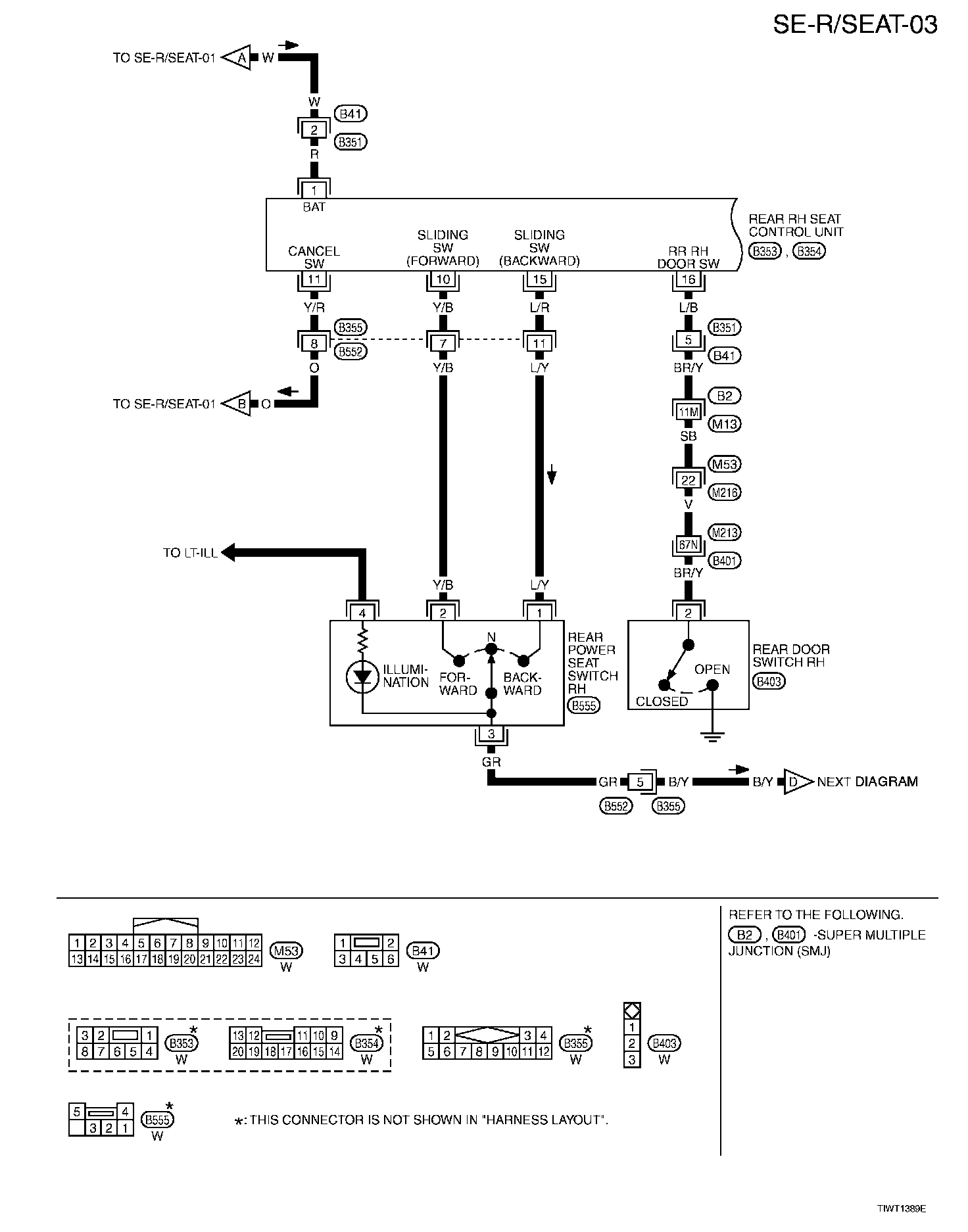

SE-R/SEAT-03:

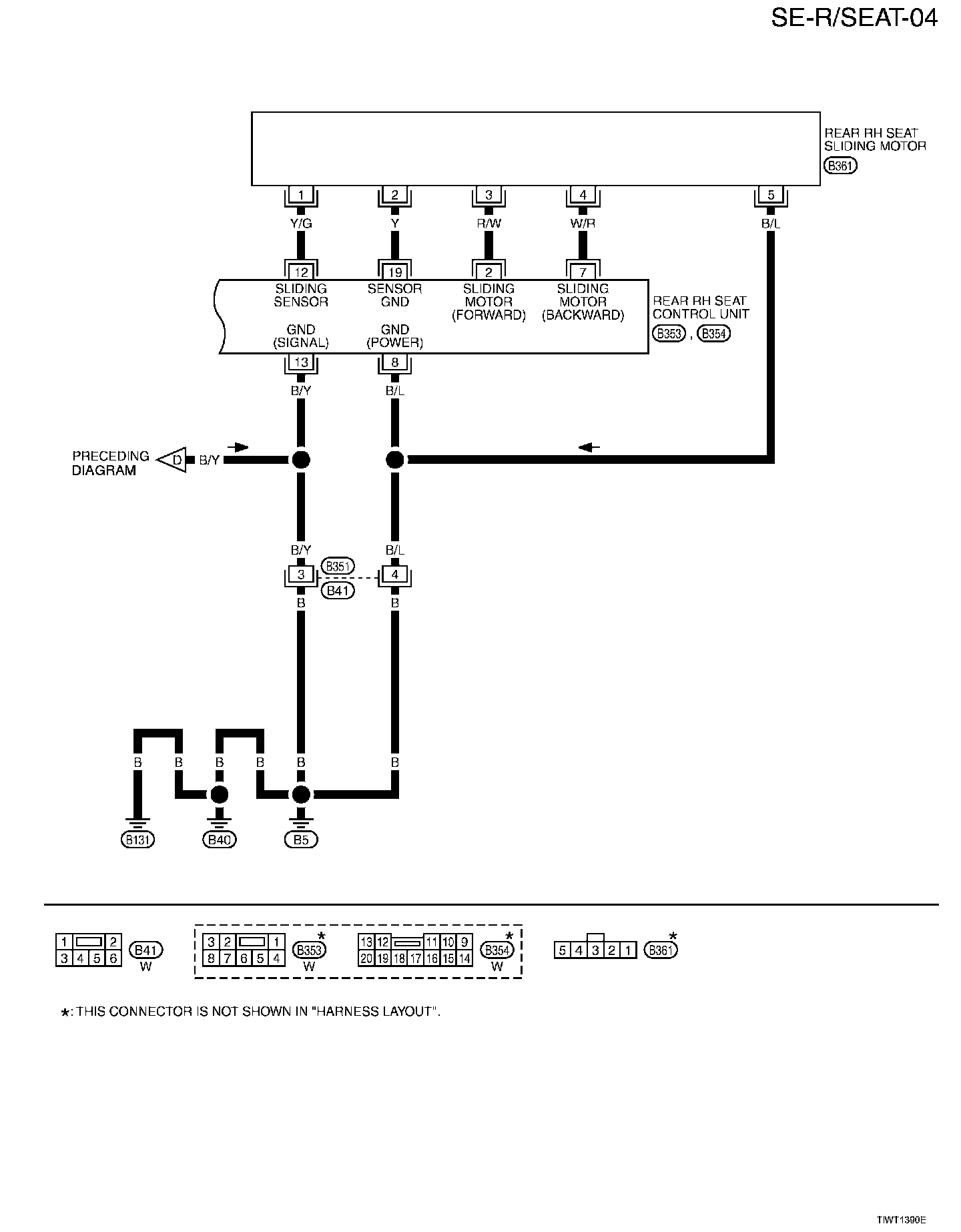

SE-R/SEAT-04:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
