Removal and Installation

Removal and Installation of Front Wiper Motor Assembly




REMOVAL
1. Remove wiper arm.
2. Remove cowl top cover.
3. Remove washer tube.
4. Disconnect wiper motor connector.

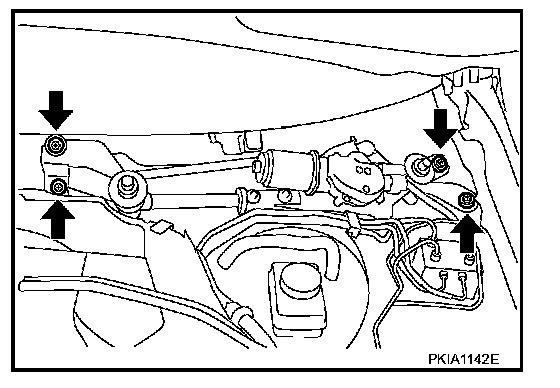

5. Remove wiper motor assembly bolts, and remove wiper motor assembly.

INSTALLATION
1. Install wiper motor assembly to the vehicle.
2. Connect wiper motor assembly to connector. Turn wiper switch ON to operate wiper motor, then turn wiper switch OFF (auto stop).
3. Attach washer tube to connector joint.
4. Install cowl top cover.
5. Install wiper arms. Refer to "Removal and Installation of Front Wiper Arms, Adjustment of Wiper Arms Stop Location".
6. Attach wiper arm washer tube.

Wiper motor assembly bolts : 4.5 N.m (0.46 kg-m, 40 in-lb)

CAUTION:
- Never drop wiper motor or cause it to contact other parts.
- Check grease conditions of motor arm and wiper link joint (at retainer). Apply grease if necessary.
