Exterior & Interior

WINDSHIELD MOLDING

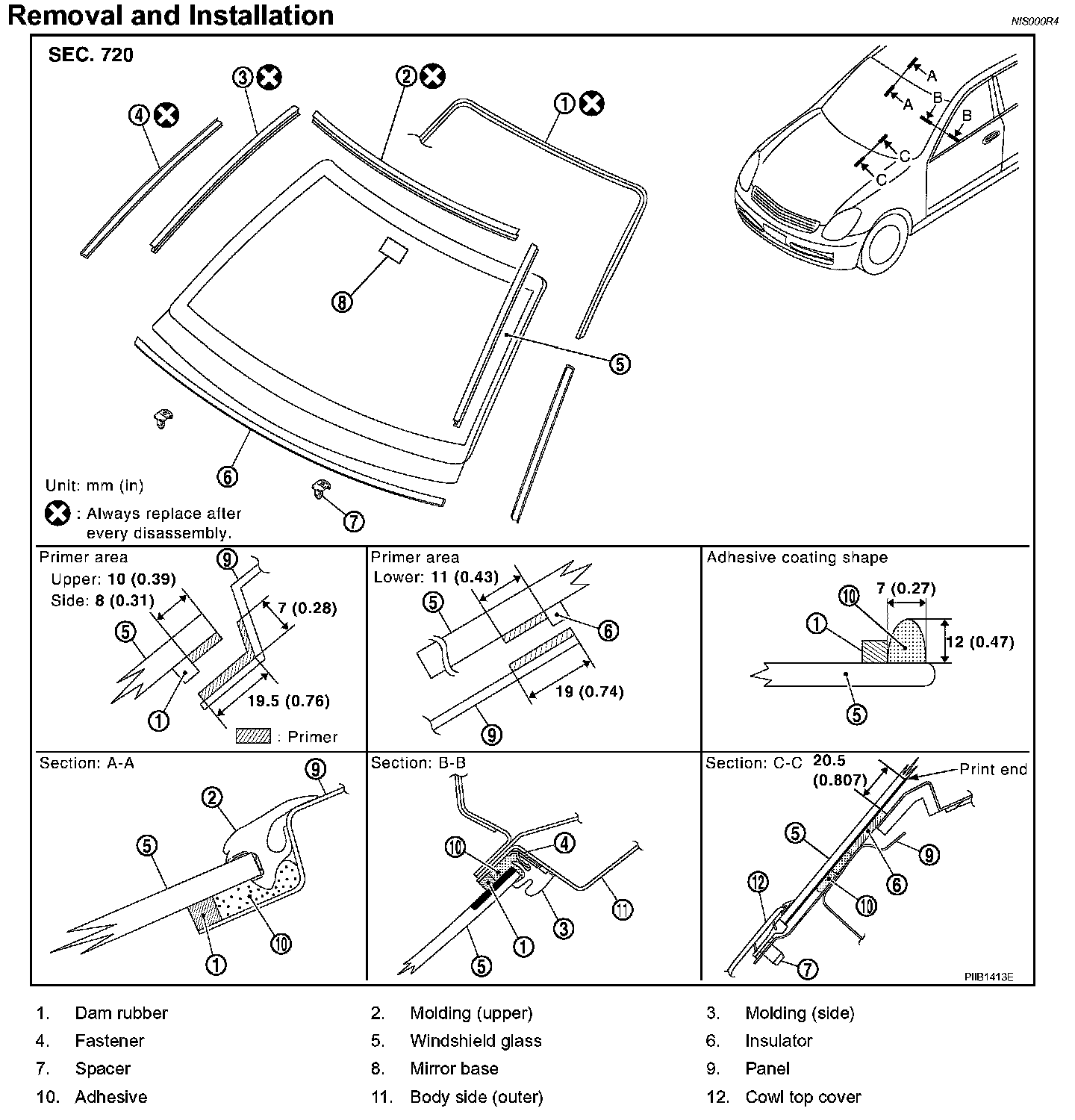

Removal and Installation

REMOVAL
Remove windshield molding. Refer to "WINDSHIELD GLASS".

NOTE:
- Apply protective tape around circumference of windshield.
- Guiding a cutter knife along glass, cut surface of molding.
- Using pliers, draw out all remaining molding left in flanged area of body, and remove it completely from adhering surface on glass.

INSTALLATION
Install windshield molding. Refer to "WINDSHIELD GLASS".

NOTE:
- Align matching marks on body and glass. Install glass to body.
- Press entire surface of glass lightly to fit it completely.

Using a spatula, repair any adhesive overflow or shortage to make surface smooth. Position windshield moldings and allow their adhesion.

CAUTION:
- Be sure to install windshield molding before adhesive hardens.
- After installing glass, keep door windows open and avoid driving vehicle until adhesive has completely cured.
