Limit Switch Circuit Check (Driver Side)
Limit Switch Circuit Check (Driver Side)

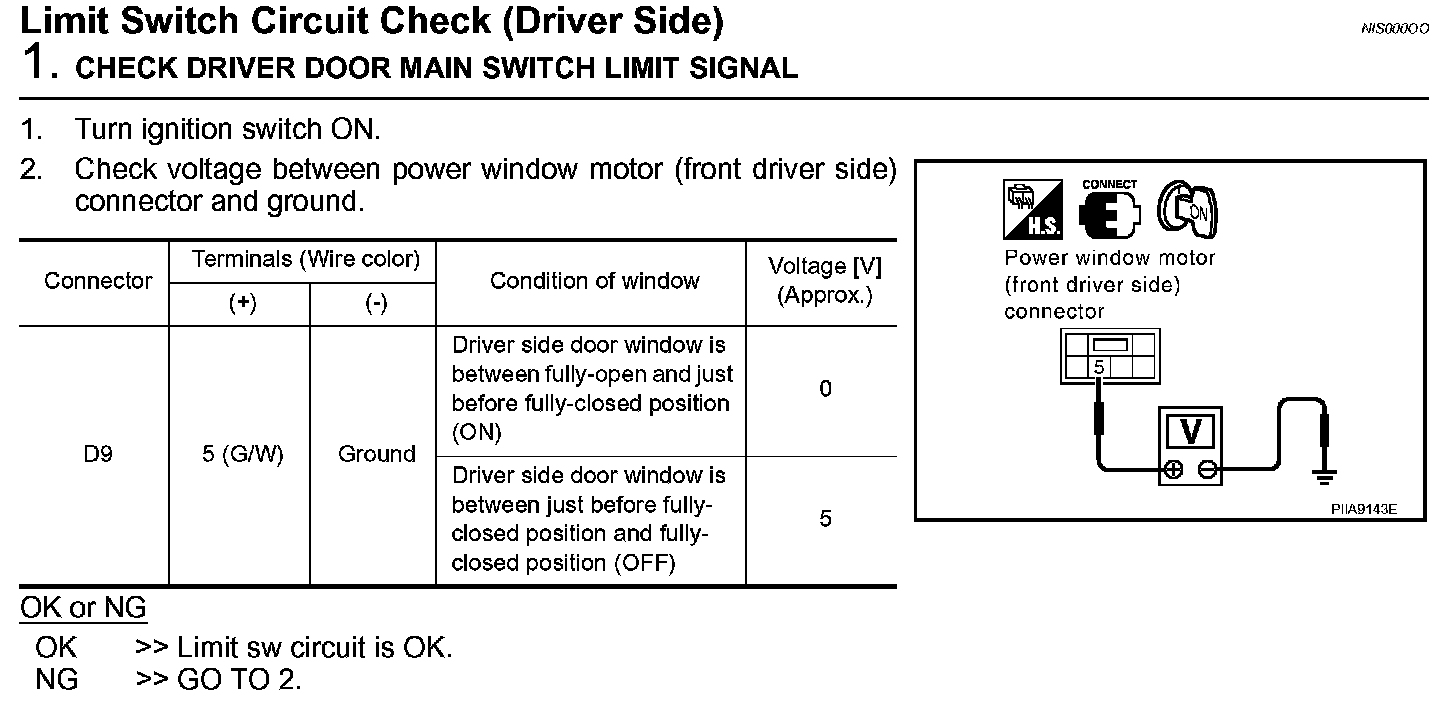

Limit Switch Circuit Check (Driver Side) (Step 1):

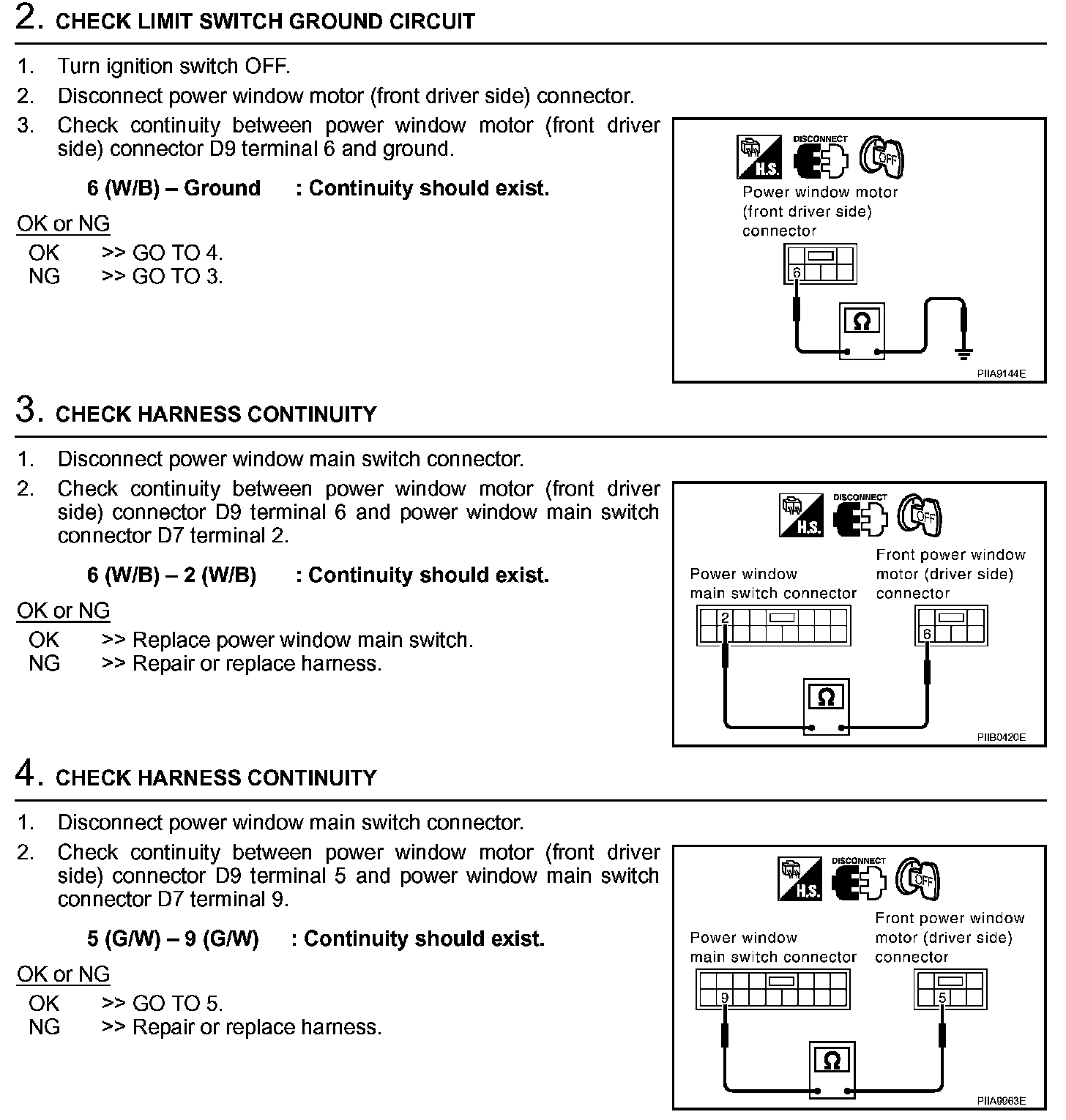

Limit Switch Circuit Check (Driver Side) (Steps 2 - 4):

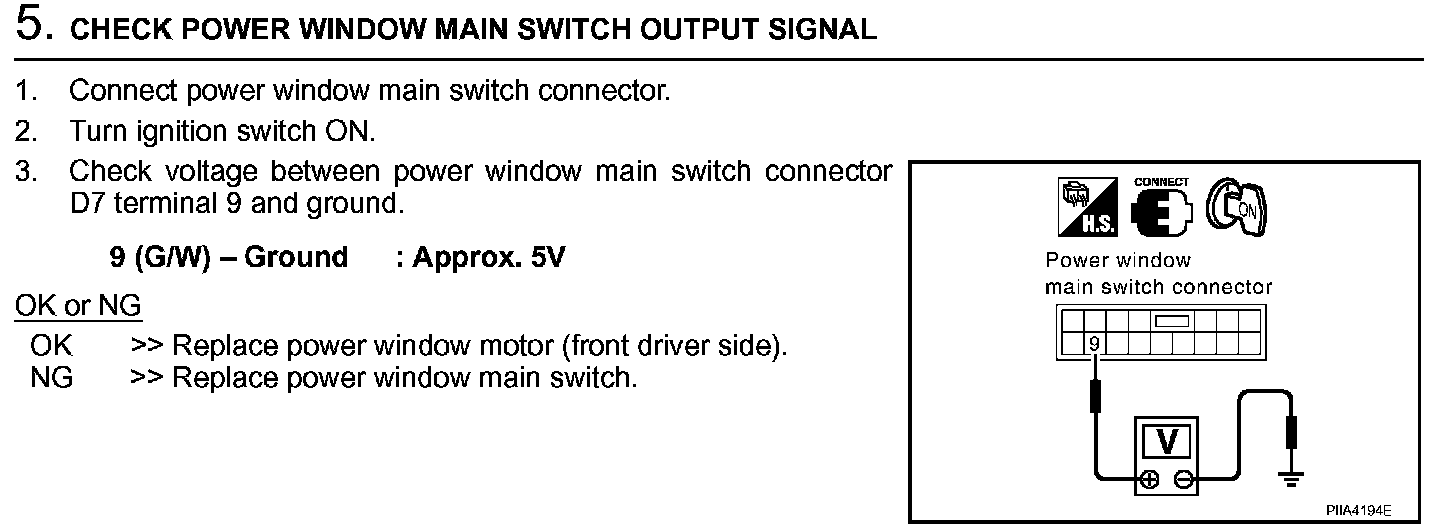

Limit Switch Circuit Check (Driver Side) (Step 5):
