Home >> Infiniti >> 2006 >> G35x Sedan AWD V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Terminal and Reference Value For IPDM E/R

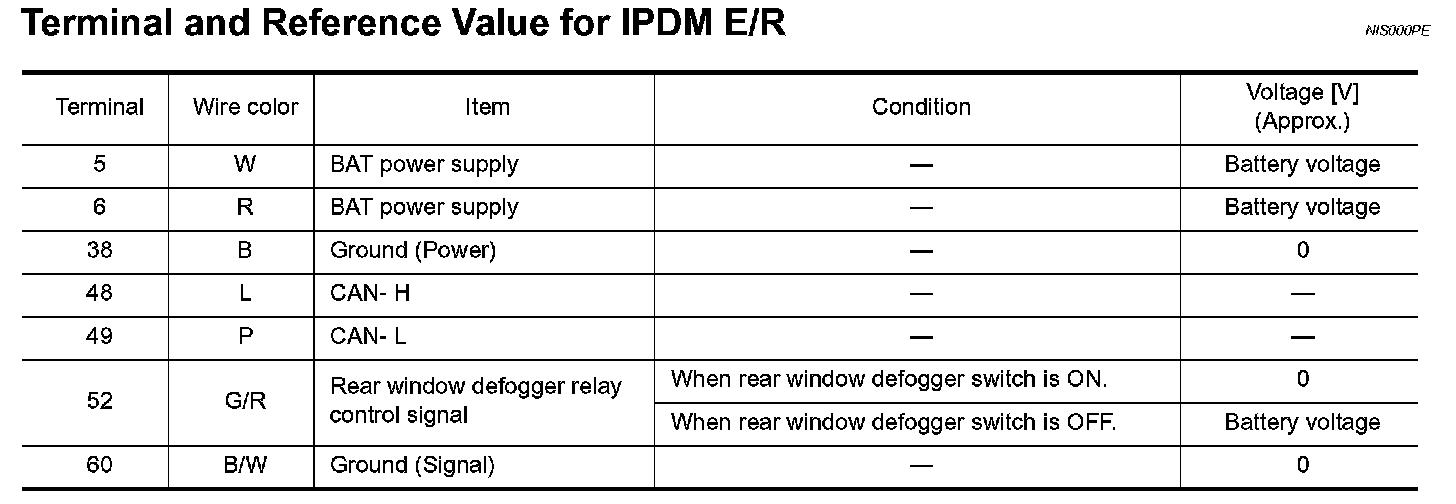

Terminal and Reference Value For IPDM E/R

Terminal And Reference Value For IPDM E / R:
