Shifter A/T: Service and Repair

Control Device Removal and Installation





REMOVAL





1. Disconnect lower lever of control device and control rod.
2. Remove knob cover below selector lever downward.

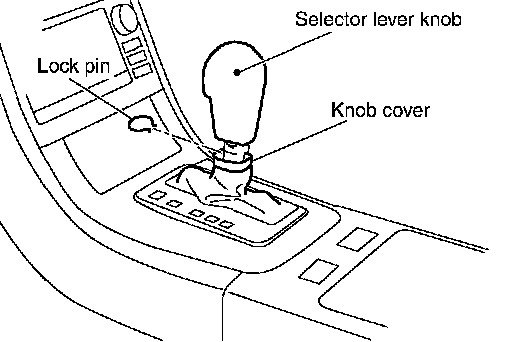

3. Pull lock pin out of selector lever knob.
4. Remove selector lever knob.
5. Remove console finisher.
6. Remove center console.
7. Remove rear ventilator duct 2.

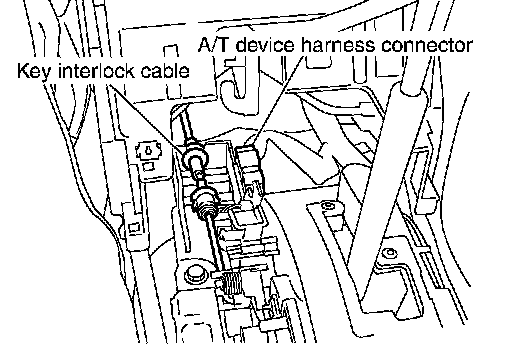

8. Remove key interlock cable from control device.
9. Disconnect A/T device harness connector.

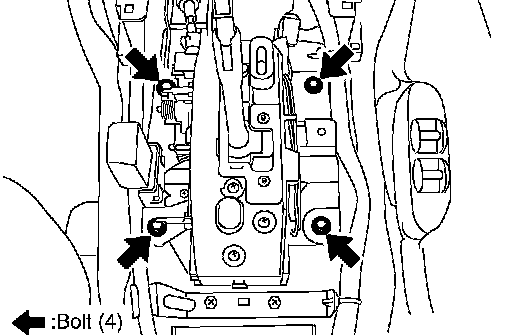

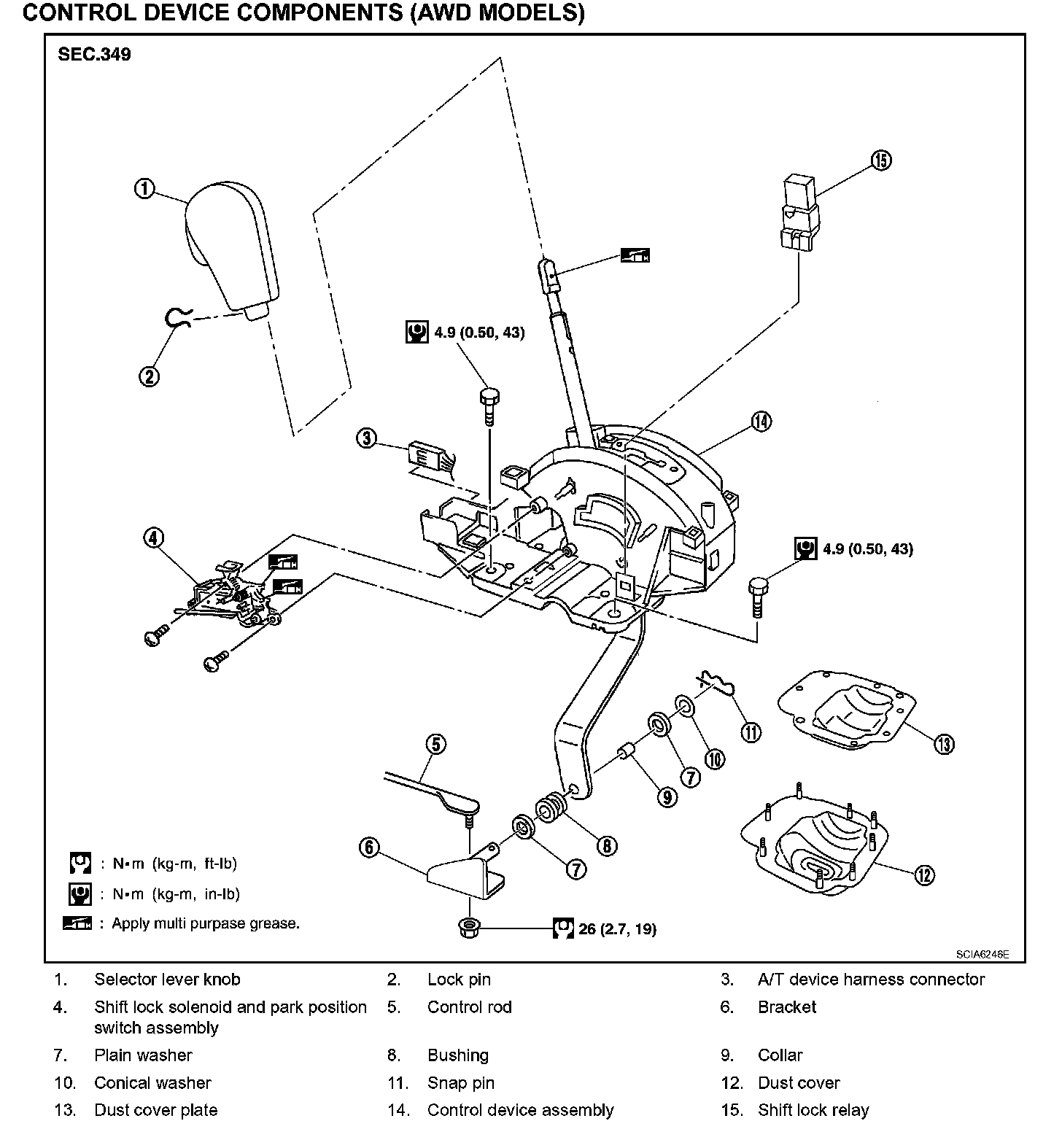

10. Remove control device assembly.

INSTALLATION
Note the following, and install in the reverse order of removal.
^ After installation is completed, adjust and check A/T position.
