Shift Cable: Service and Repair

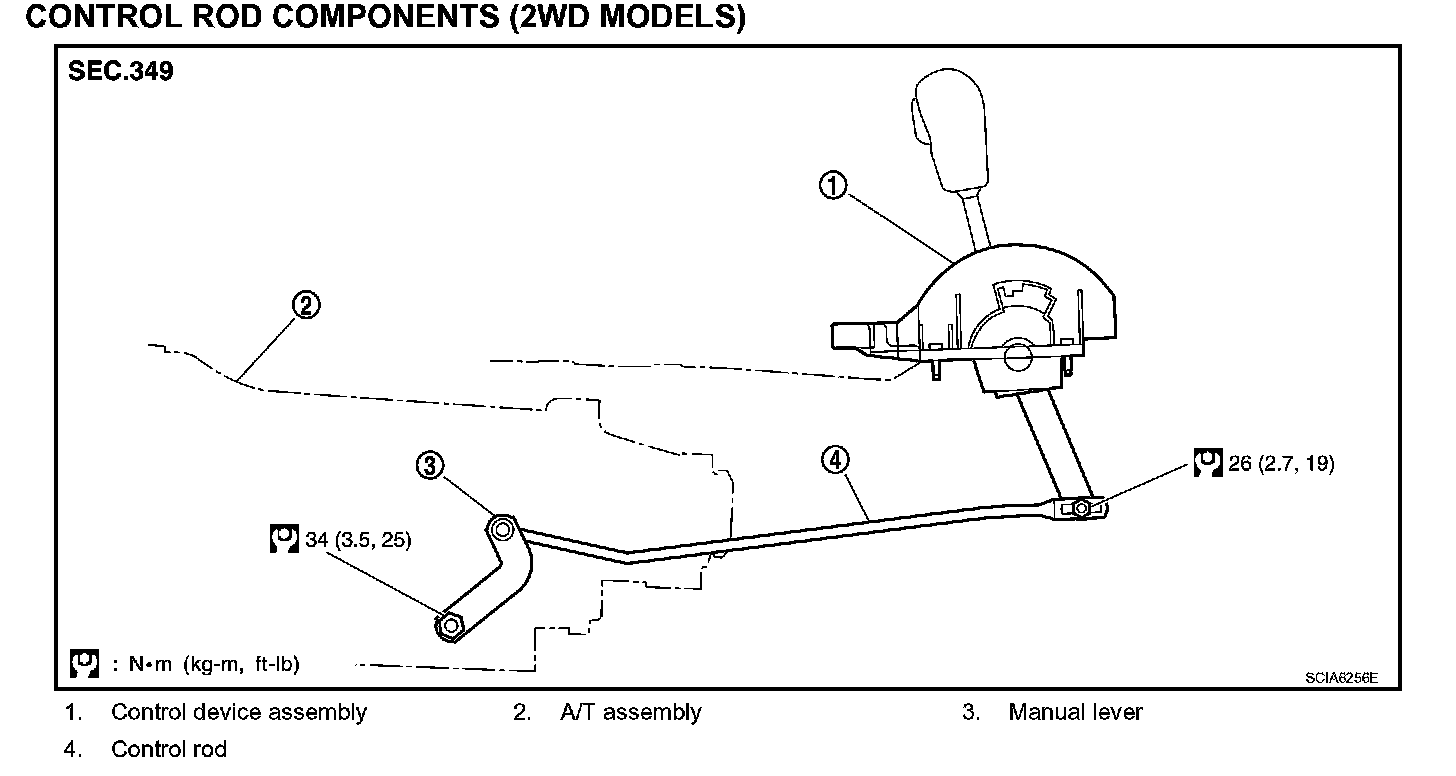

Control Rod Removal and Installation








REMOVAL

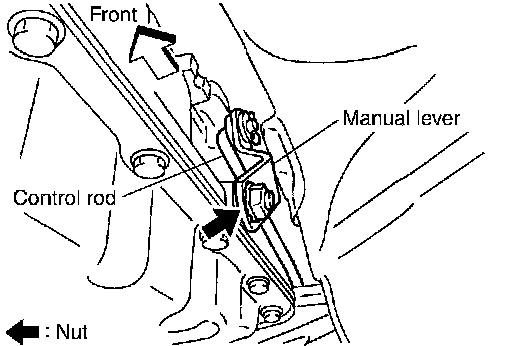

1. Disconnect lower lever of control device and control rod.
2. Remove manual lever from A/T assembly.
3. Remove control rod from vehicle.

INSTALLATION
Note the following, and install in the reverse order of removal.
^ After installation is completed, adjust and check A/T position.
