Shift Cable: Adjustments

Adjustment of A/T Position

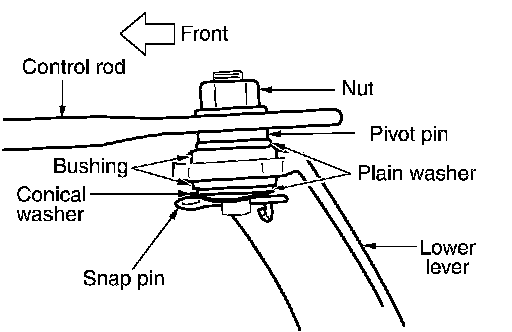

2WD MODELS





1. Loosen nut of pivot pin.
2. Place PNP switch and selector lever in P position.
3. While pressing lower lever toward rear of vehicle (in P position direction), tighten nut to specified torque. Refer to AT-220, CONTROL ROD COMPONENTS (2WD MODELS).

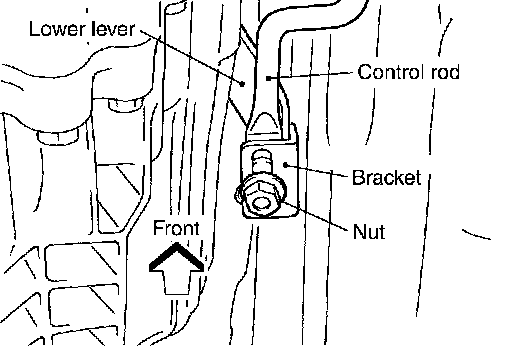

AWD MODELS





1. Loosen nut of control rod.
2. Place PNP switch and selector lever in P position.
3. While pressing lower lever toward rear of vehicle (in P position direction), tighten nut to specified torque. Refer to AT-220, CONTROL ROD COMPONENTS (AWD MODELS).

CAUTION: Do not push the bracket.
