Removal and Installation

AWD MODELS




Removal
1. Disconnect the battery cable from the negative terminal.
2. Remove engine front and rear undercover, using power tools.

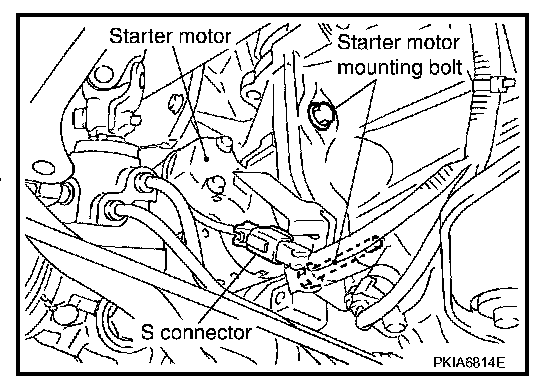

3. Disconnect "S" connector.
4. Remove "B" terminal nut.
5. Remove starter motor mounting bolts and harness connector clip bracket, using power tools.
6. Remove starter motor downward.

Installation
Installation is the reverse order of removal.

CAUTION: Be sure to tighten "B" terminal nut carefully.
