Crankshaft Pulley

Crankshaft Pulley
Tighten crankshaft pulley bolt.
Torque 44.1 Nm (4.5 kg-m, 33 ft. lbs.)

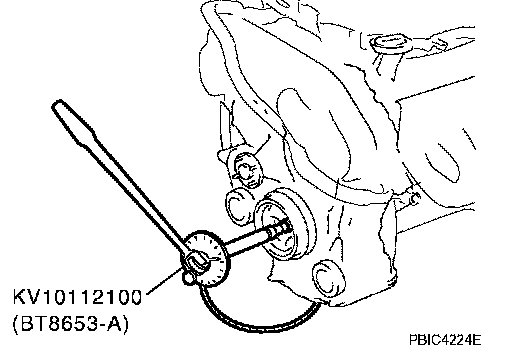

Turn crankshaft pulley bolt 90° clockwise (angle tightening).

CAUTION: Check the tightening angle by using the angle wrench [SST]. Avoid judgement by visual inspection without SST.

Check tightening angle indicated on the angle wrench indicator plate.
Rotate crankshaft pulley in normal direction (clockwise when viewed from engine front) to confirm it turns smoothly.
