AWD Control Unit Circuit Inspection
AWD Control Unit Circuit Inspection

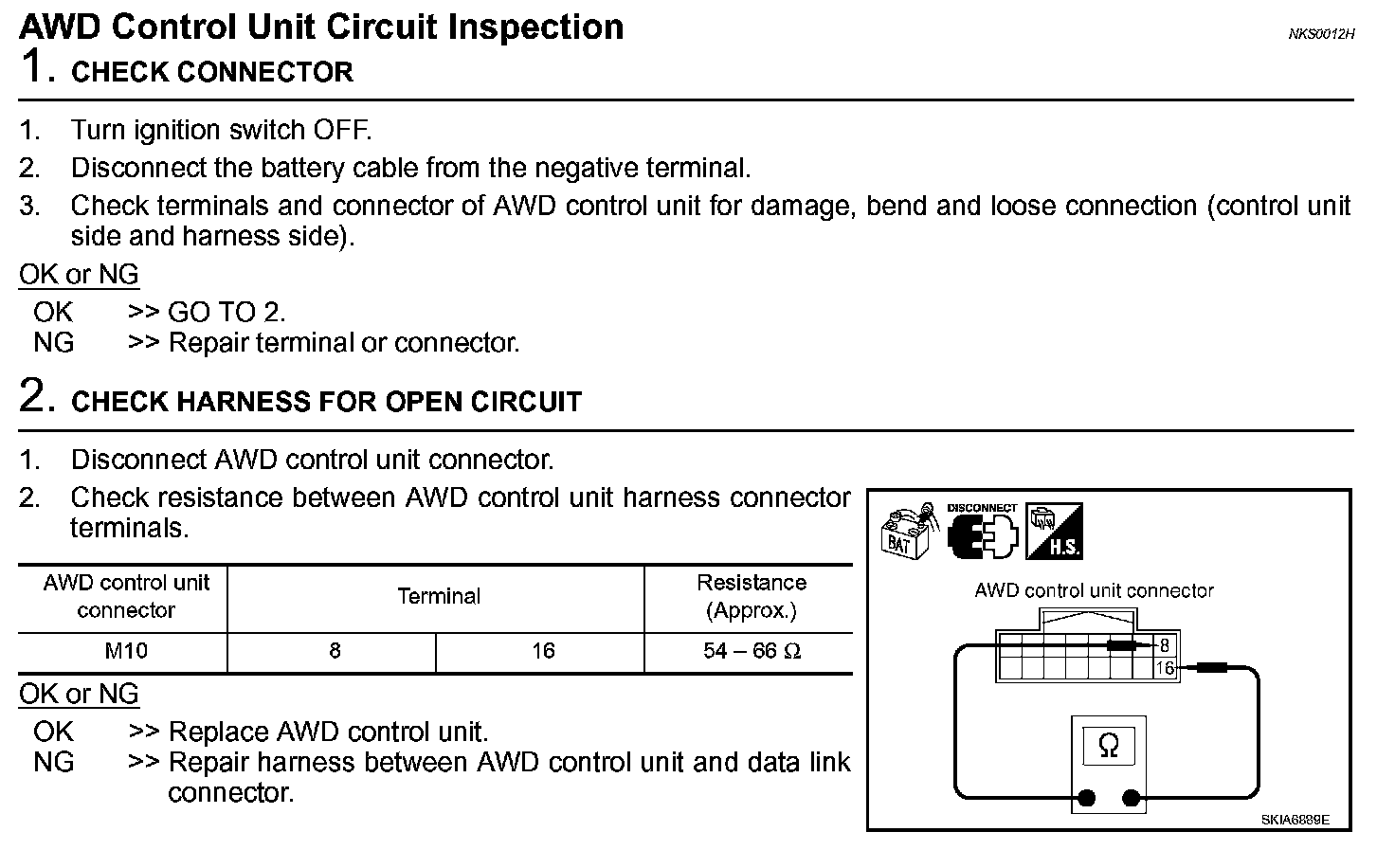

AWD Control Unit Circuit Inspection:
