Power Steering Line/Hose: Service and Repair

HYDRAULIC LINE

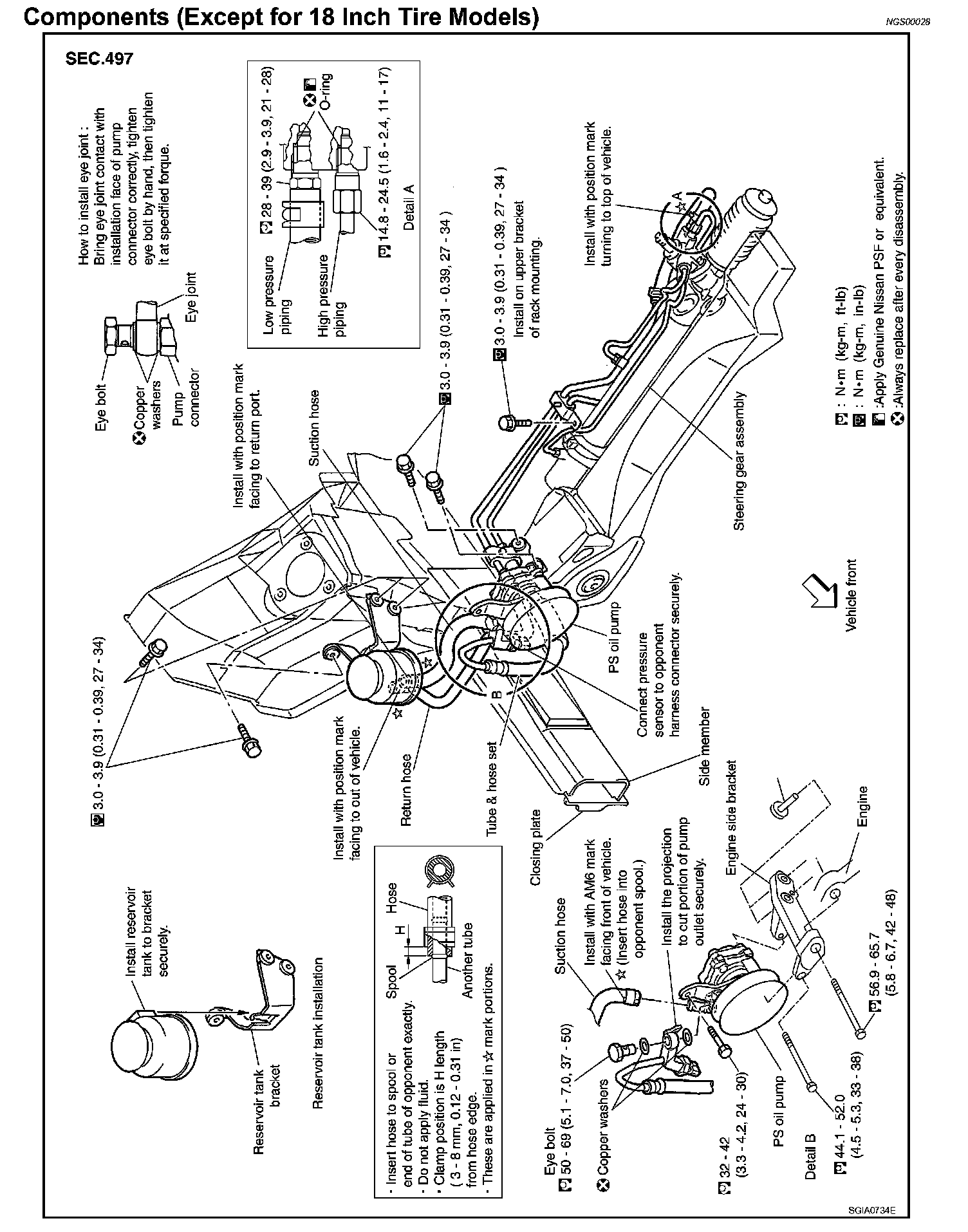

Except for 18 Inch Tire Models:

18 Inch Tire Models:

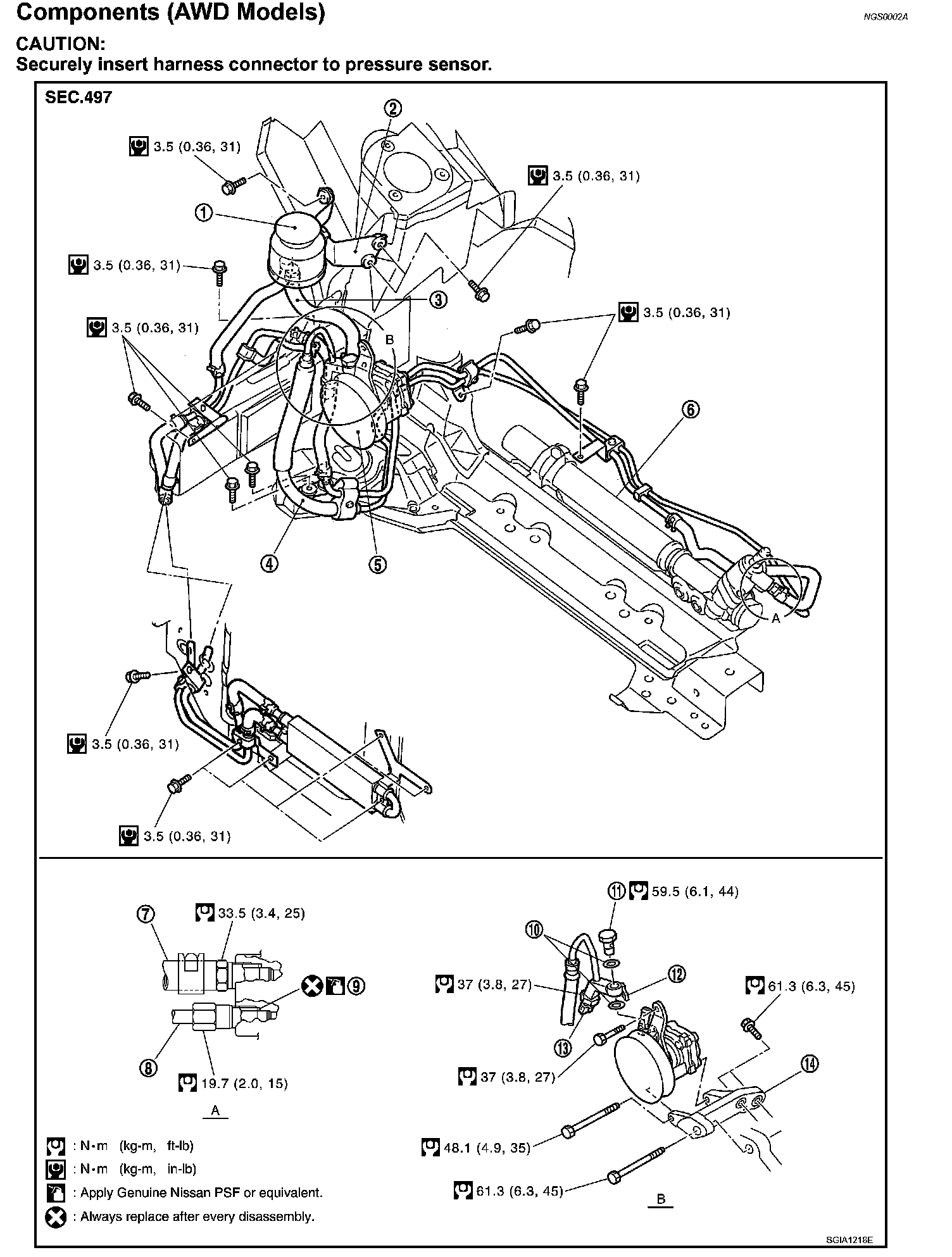

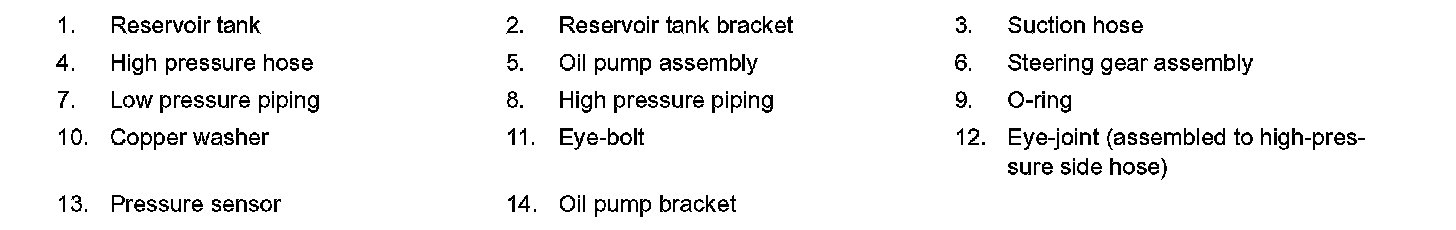

AWD Models:

Removal and Installation

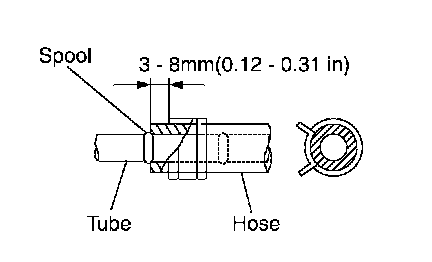

^ Insert hose securely until it contacts tube spool.

CAUTION: Do not apply fluid.

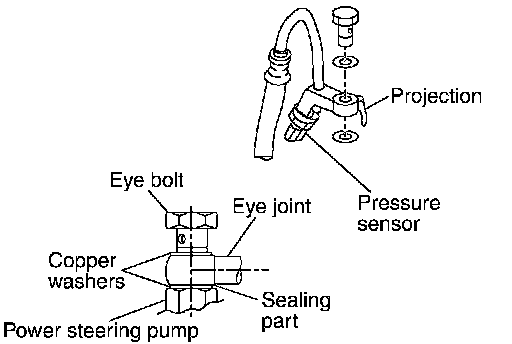

^ Install eye-bolt with eye-joint (assembled to high-pressure hose) protrusion facing with pump side cutout, and then tighten it to the specified torque after tightening by hand.
