Transfer Fluid Inspection

Inspection





FLUID LEAKAGE AND FLUID LEVEL

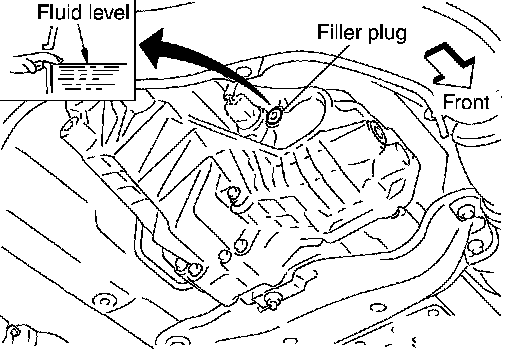

1. Check fluid level from filler plug mounting hole as shown in the figure.
2. Before installing filler plug, set a new gasket. Install filler plug on transfer and tighten to the specified torque. Refer to TF-51, COMPONENTS.

CAUTION: Do not reuse gasket.
