Air Duct: Service and Repair

DUCTS AND GRILLES

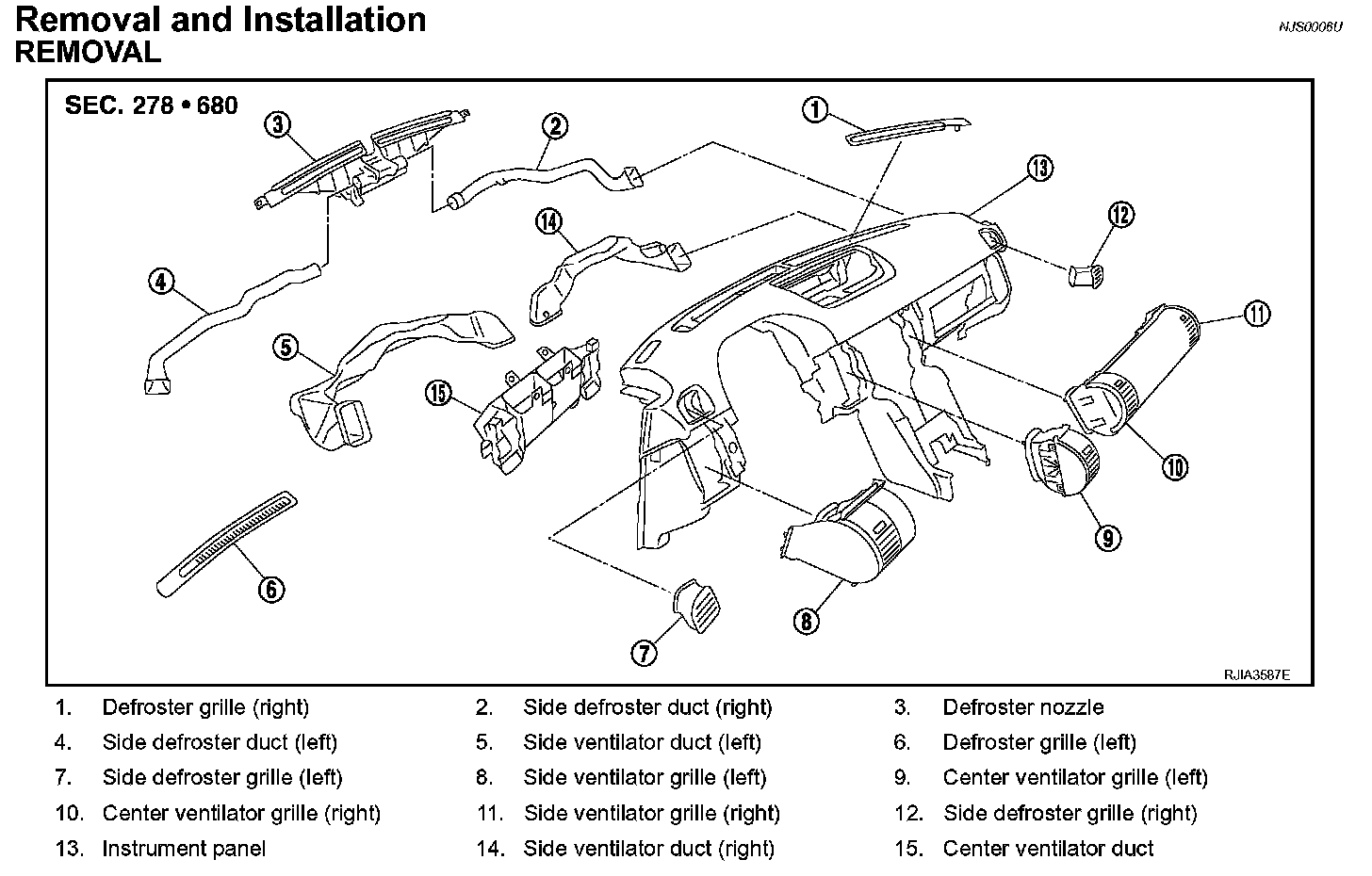

Removal and Installation

REMOVAL

Removal of Center Ventilator Grilles
1. Remove instrument driver lower panel.

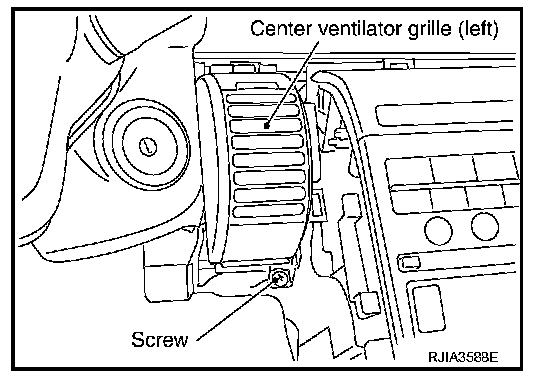

2. Remove mounting screw, and then remove center ventilator grill (left).
3. Remove center box assembly.

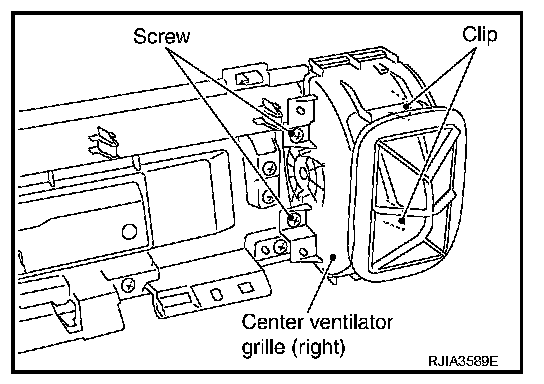

4. Remove mounting screws, clips, and then remove center ventilator grille (right).

Removal of Side Ventilator Grille
1. Remove center box assembly.

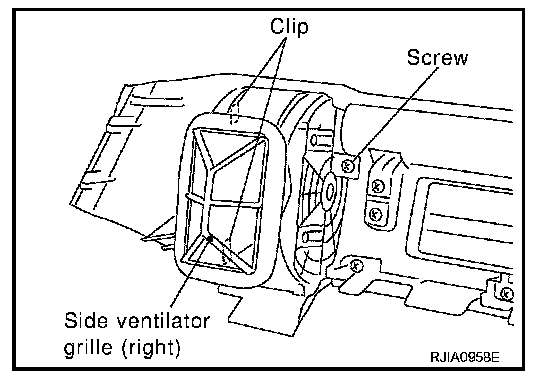

2. Remove mounting screw and clips, and then remove side ventilator grille (right).
3. Remove instrument driver lower panel. Refer to "Removal and Installation".
4. Remove side ventilator grille (left).

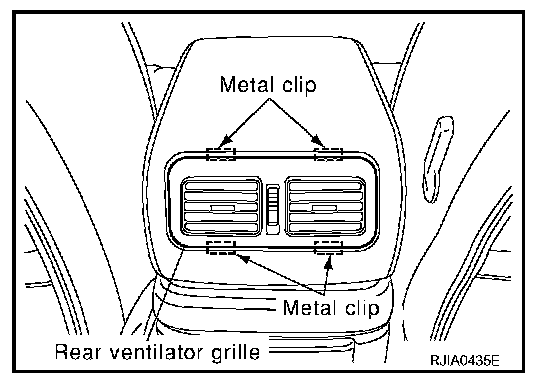

Removal of Rear Ventilator Grille
1. Remove center console. Refer to "Removal and Installation".




2. Remove mounting metal clips, and then remove rear ventilator grille.

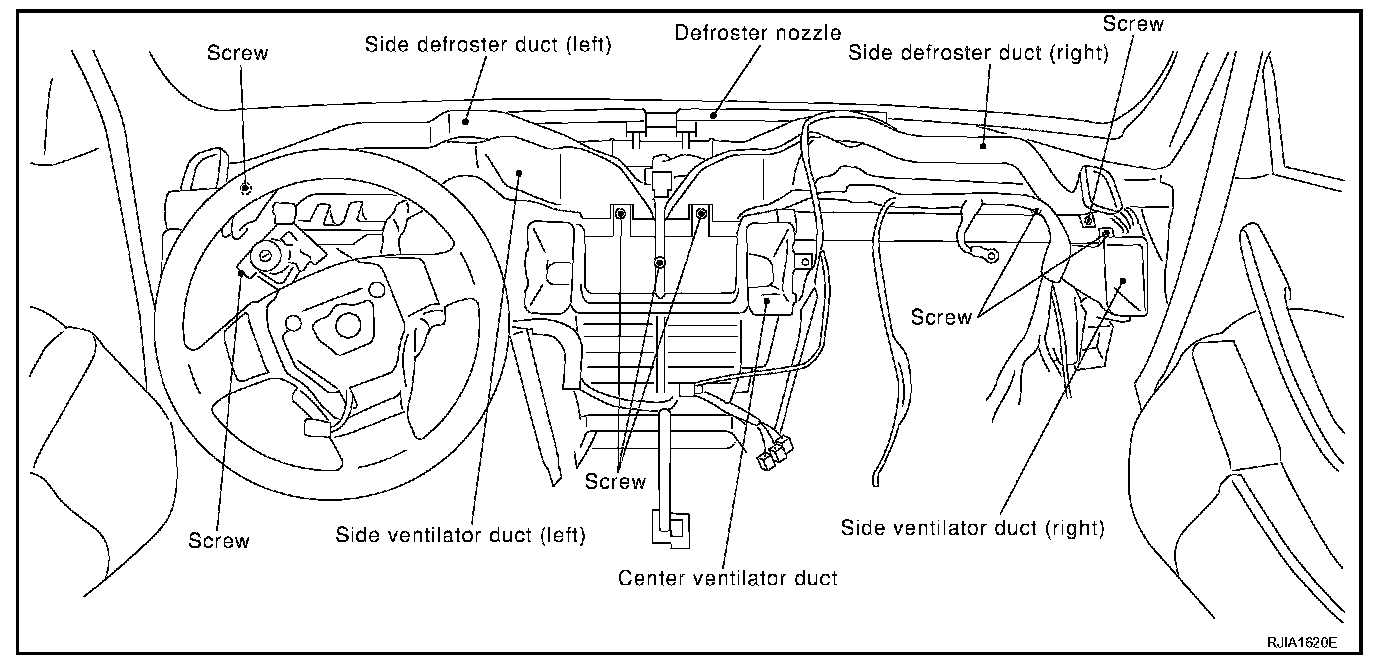

Removal of Defroster Nozzle, Ducts and Ventilator Ducts
1. Remove instrument panel assembly. Refer to "Removal and Installation".




2. Remove mounting screws, and then remove side defroster ducts.
3. Remove defroster nozzle.
4. Remove mounting screws, and then remove center ventilator duct.
5. Remove steering member, and then remove side ventilator ducts.




Removal of Side Defroster Grilles

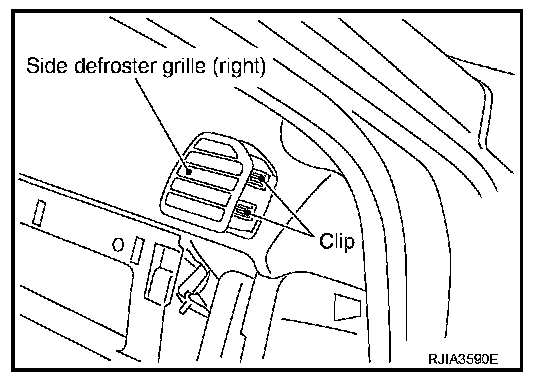

Remove mounting clips, and then remove side defroster grilles.

Removal of Rear Ventilator Ducts

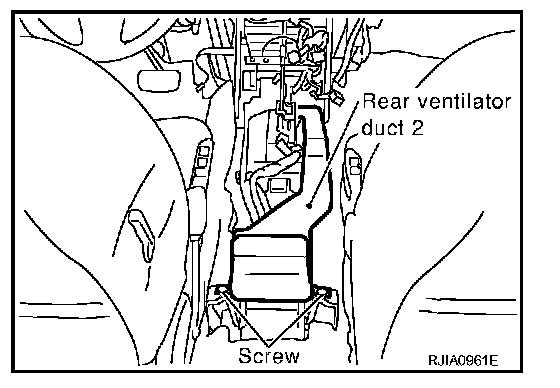

1. Remove center console, and then remove rear ventilator duct 2. Refer to "Removal and Installation".
2. Remove instrument panel and pad. Refer to "Removal and Installation".
3. Remove rear ventilator duct 1.

Removal of Foot Ducts
1. Remove heater & cooling unit. Refer to "HEATER & COOLING UNIT ASSEMBLY".

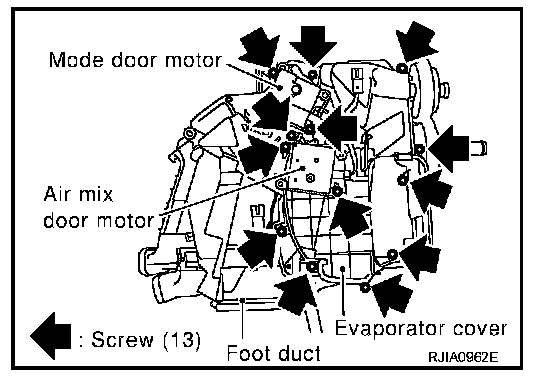

2. Remove mounting screws, and then remove evaporator cover and foot duct (passenger side).
3. Remove foot duct (driver side).

Removal of Floor Ducts
1. Remove front seats and center console. Refer to "FRONT SEAT" and "Removal and Installation".
2. Peel back floor trim to a point where floor duct is visible.




3. Remove mounting clip, and then remove floor ducts.
4. Remove instrument panel assembly.

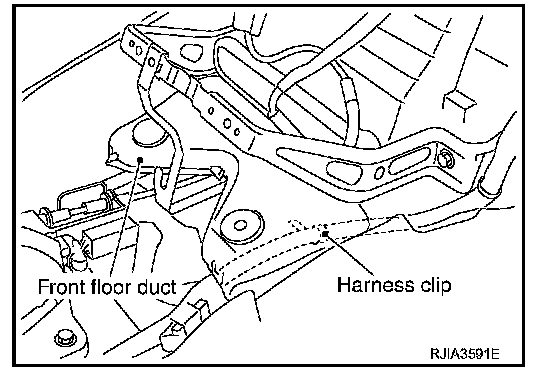

5. Remove front floor duct.

INSTALLATION
Installation is basically the reverse order of removal.
