Engine Lubrication
Engine Lubrication
LUBRICATION SYSTEM

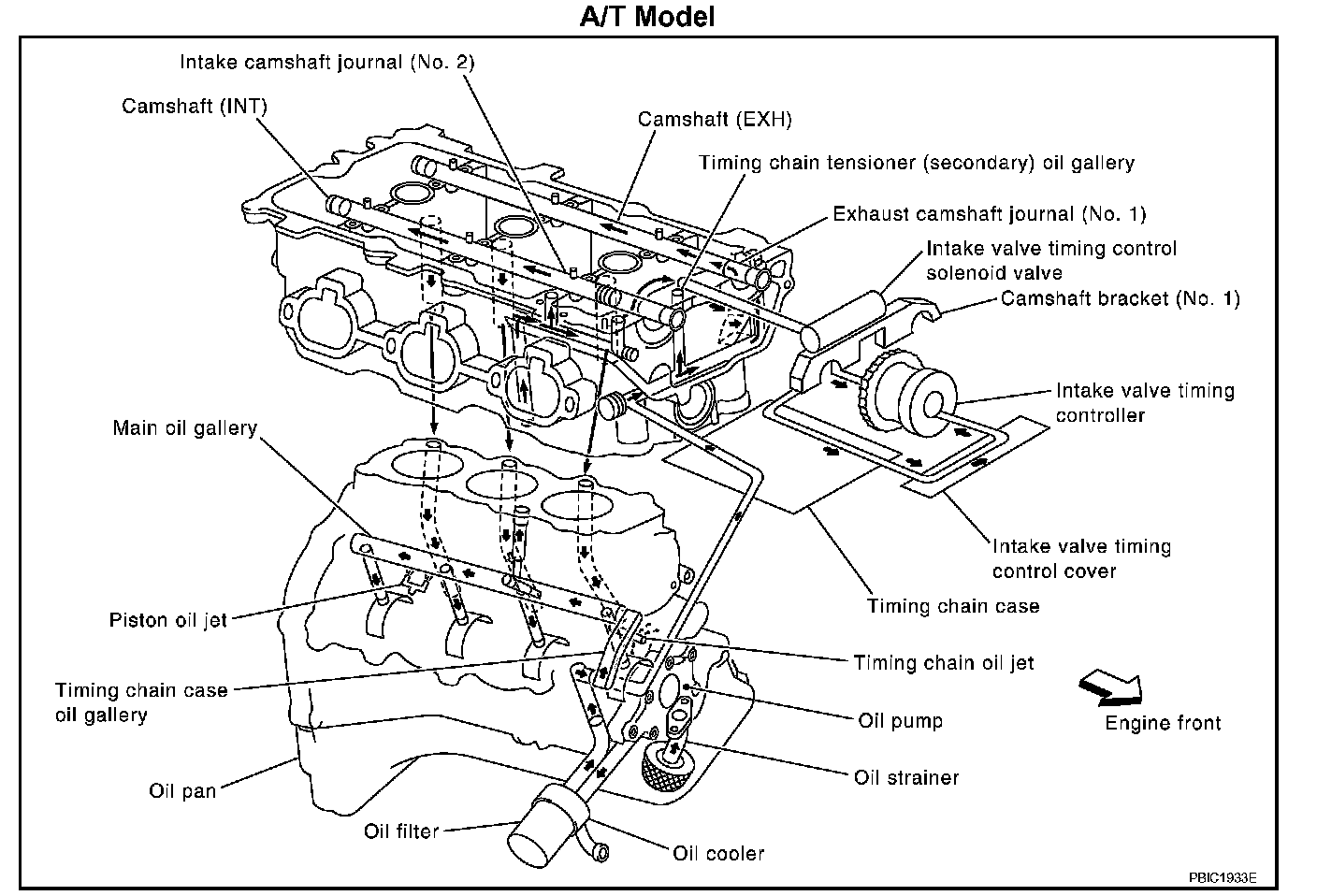

Lubrication Circuit - A/T Model:

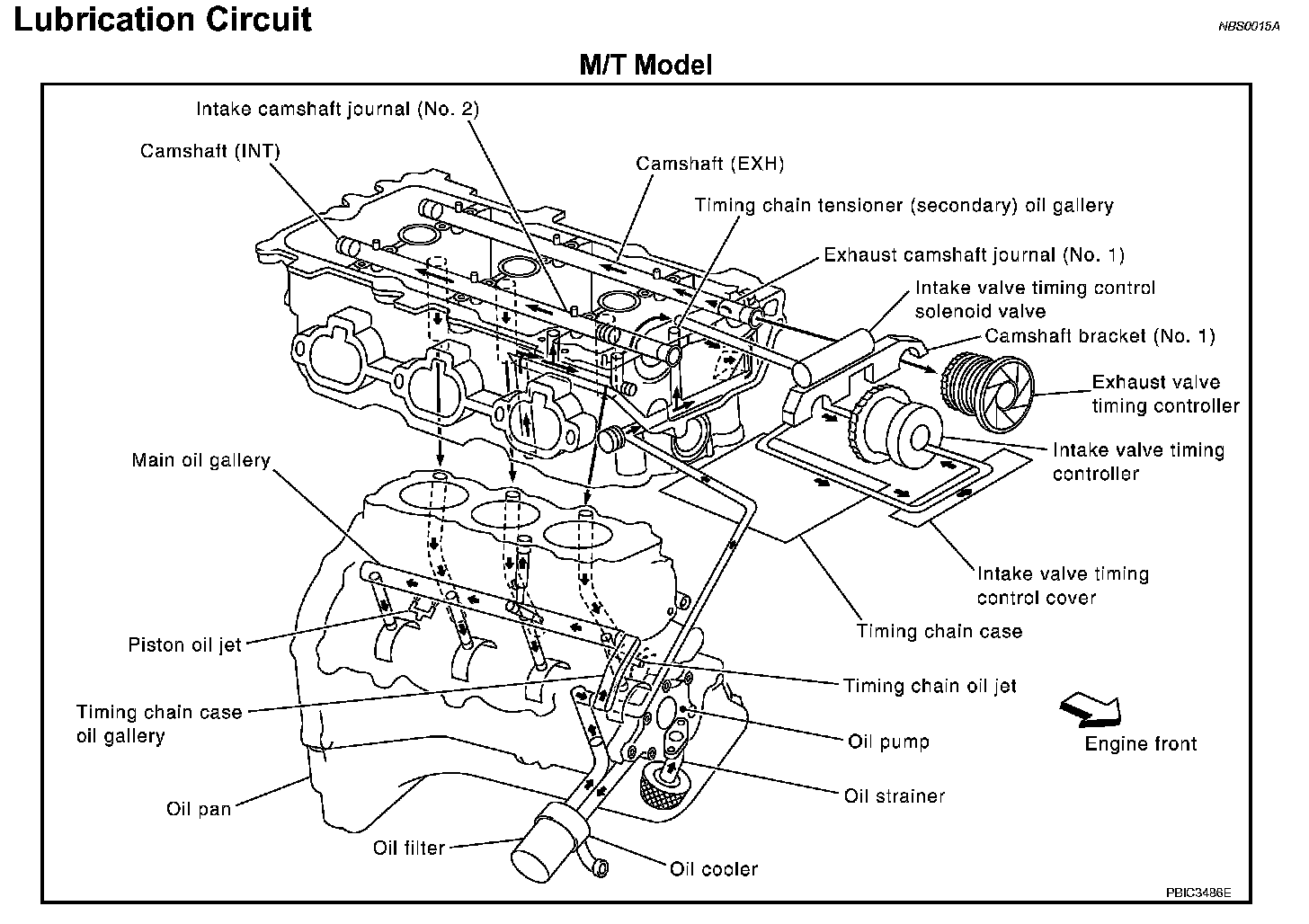

Lubrication Circuit - M/T Model:
Lubrication Circuit

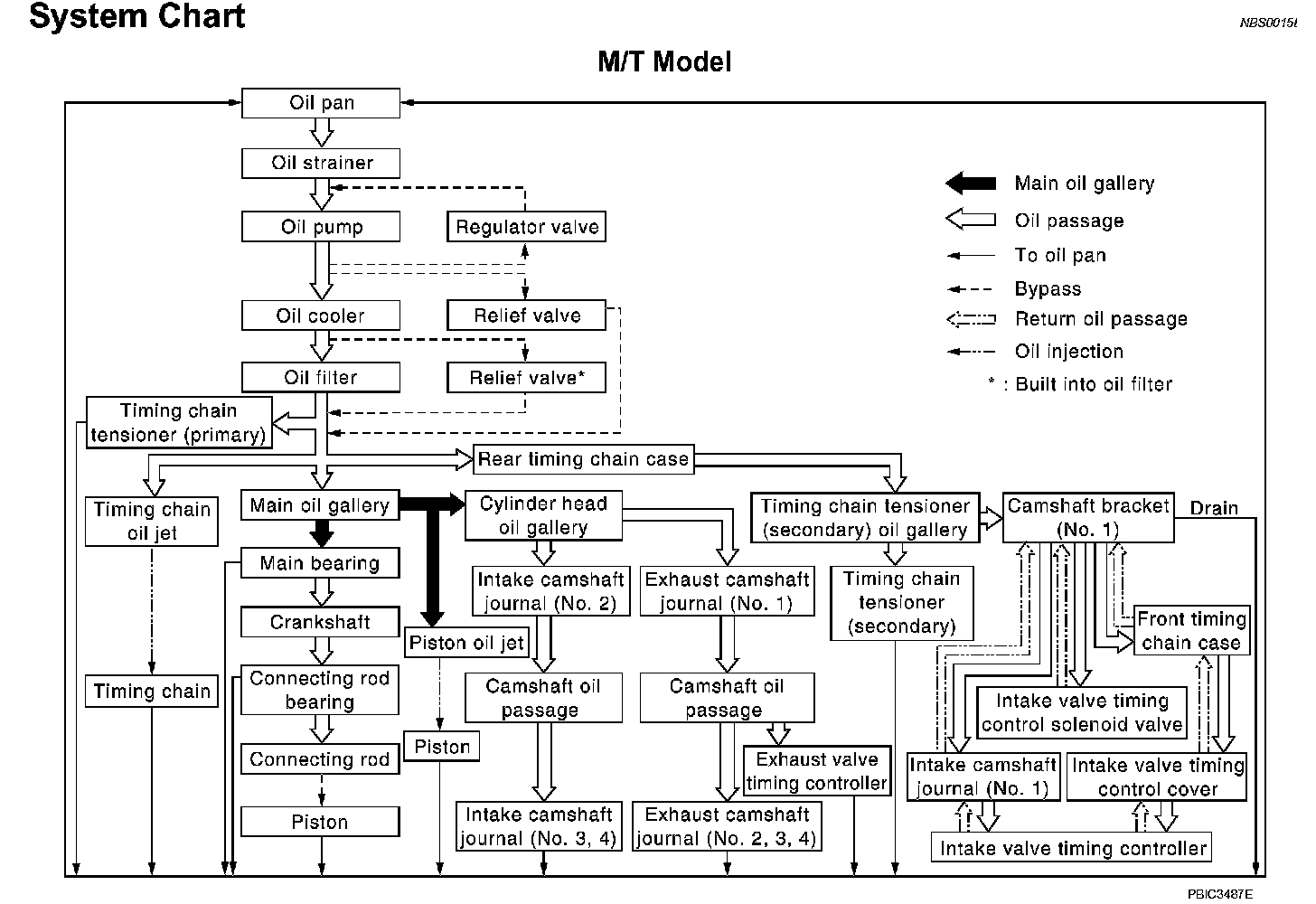

System Chart - M/T Model:

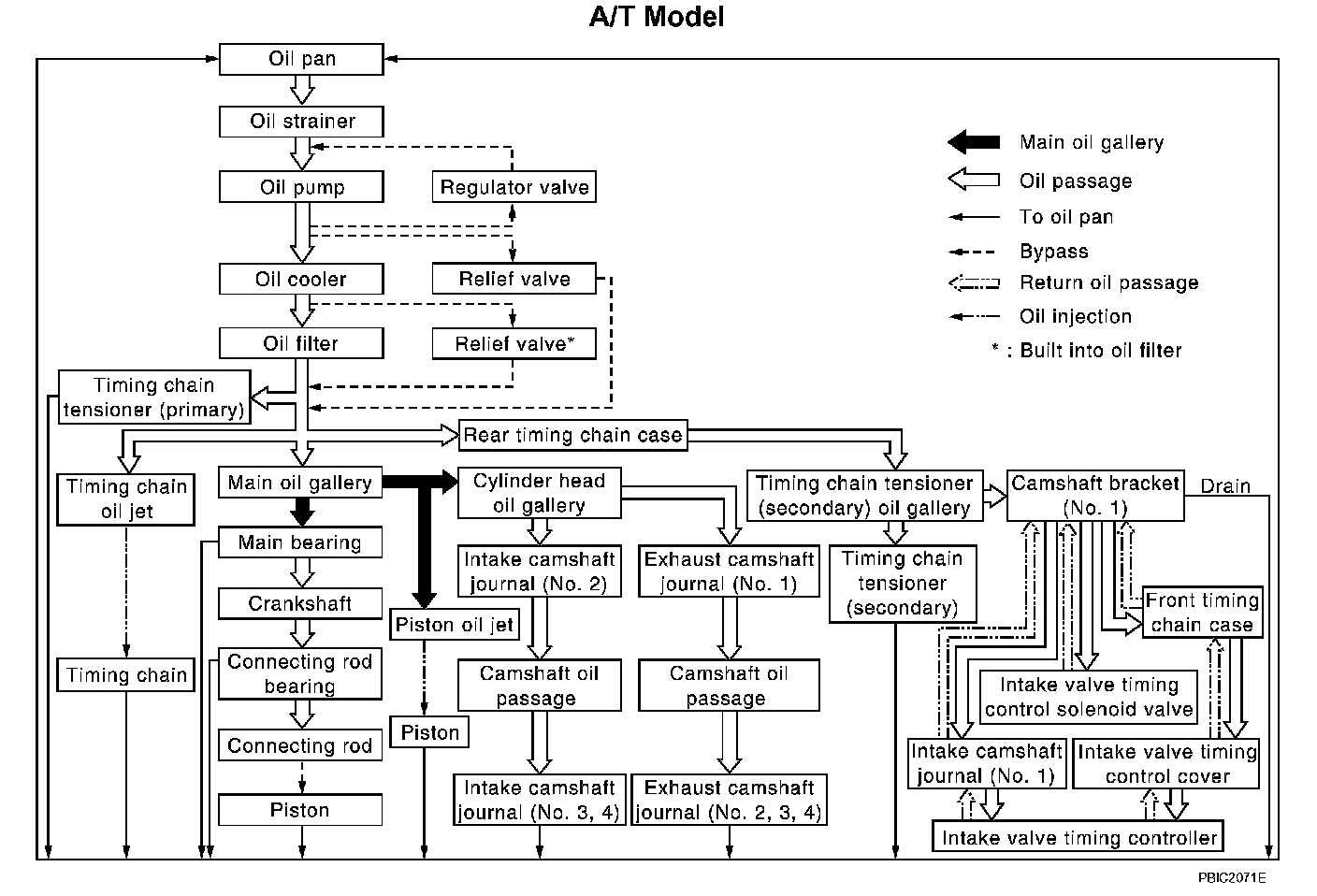

System Chart - A/T Model:
System Chart
